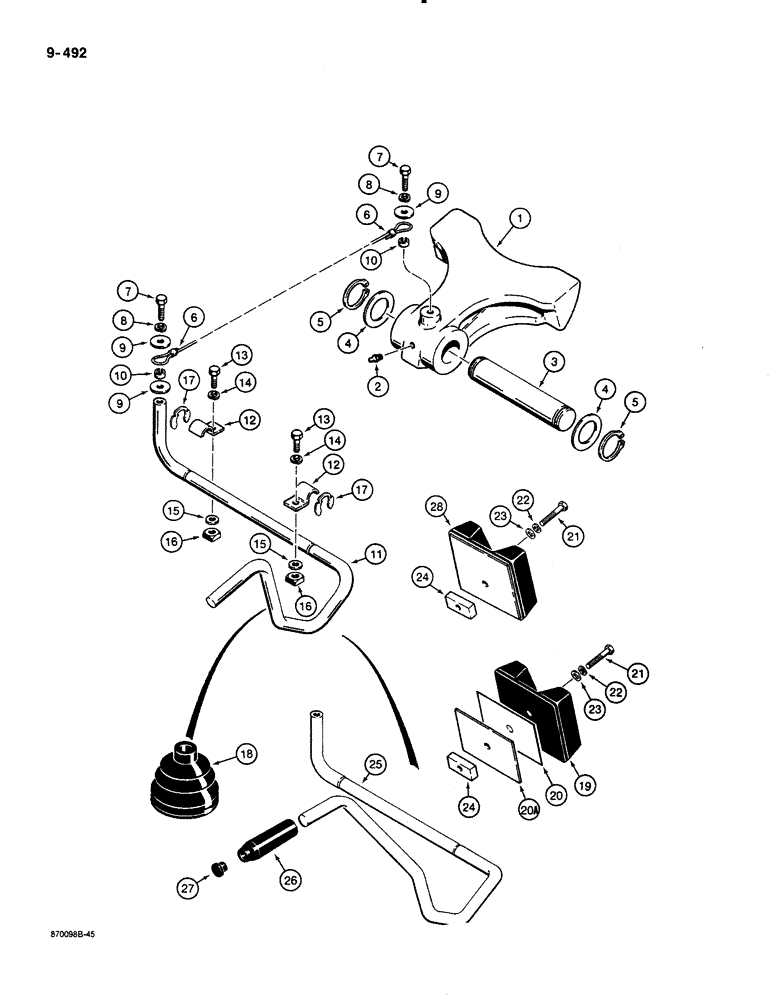

Запчасти Case 580K (09-492) - BOOM LATCH, WITH 3/4" OD ROD (09) - CHASSIS/ATTACHMENTS

1

D143296

ARRESTER

LATCH backhoe boom

1шт.

2

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8" NPT

1шт.

3

D129227

PIN,40mm OD x 196mm L

- Boom latch to swing tower

1шт.

4

D127843

WASHER

flat, 1-5/8" (41 mm) ID x 2-1/2" (64 mm) OD x 1/8" (3 mm) thick

2шт.

5

800-50040

SNAP RING,M40, Ext

RING snap, pin retaining

2шт.

6

D129641

CABLE

latch control

1шт.

7

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

8

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

9

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

flat, 3/8", hardened

3шт.

10

D123539

BUSHING

SPACER, 13/32" (10 mm) ID x 5/8" (16 mm) OD x 1/4" (6 mm) long

2шт.

11

D129640

ROD

boom latch control, not used on models with tilt backhoe controls, see Ref. 25 thru 27

1шт.

12

D30604

CLAMP

rod

2шт.

13

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

14

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

15

195-525

WASHER,3/8", SAE

flat, 3/8", plated

2шт.

16

25-226

SQUARE NUT,Sq, 3/8"-16

square, 3/8"-16 NC

2шт.

17

D95097

RING, SNAP

RETAINER clip ring

2шт.

18

D86664

BOOT

rod

1шт.

19

D140283

BUMPER

boom, used with shims, no longer used, order P/N D141556 bumper

1шт.

20

D136538

SHIM,1.6mm Thk

(1/16"), Plate, Boom stop, if used 1.6mm Thk

1шт.

20a

D140833

SHIM,6mm Thk

(1/4"), Plate, Boom stop, if used 6mm Thk

1шт.

21

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

22

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

23

195-525

WASHER,3/8", SAE

flat, 3/8", plated

1шт.

24

D135667

PLATE

boom stop

1шт.

25

D139927

ROD

boom latch control, used with Ref. 26 and 27 on models with tilt backhoe controls

1шт.

26

D91439

TUBE

KNOB boom latch rod, used with Ref. 25

1шт.

27

353-406

PLUG,Dome, .625" hole, Nylon

P/N D91439 knob

1шт.

28

D141556

RUBBER BLOCK

BUMPER boom, used without shims

1шт.
