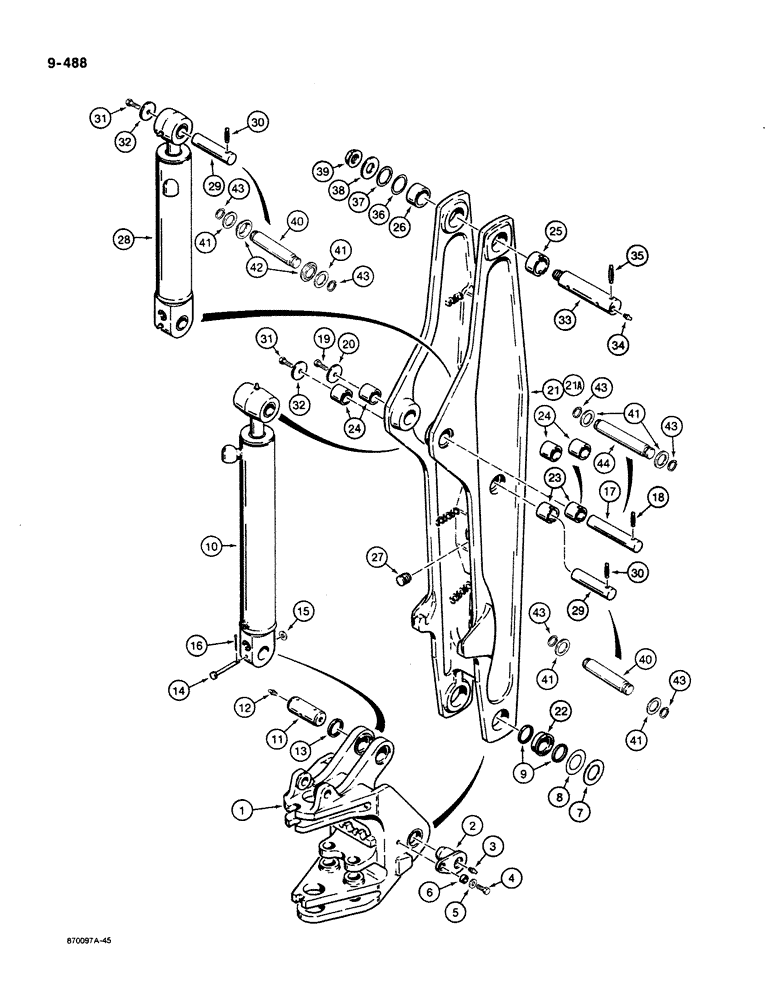

Запчасти Case 580K (09-488) - BACKHOE SWING TOWER AND BOOM (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

TOWER swing, backhoe, with inner ears, see Figure 09-484 for swing tower and bushings

1шт.

2

D140093

PIN

swing, Serial Range: tower-boom

2шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8" NPT

2шт.

4

113-709

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

2шт.

5

T53681

WASHER,19.84mm ID x 44.5mm OD x 5.559mm Thk

flat, 3/4", hardened

2шт.

6

D132045

SPACER,20mm ID x 31.75mm OD x 12mm L

bolt

2шт.

8

R32119

WASHER,71mm ID x 114mm OD x 1.6mm Thk

SHIM, 2-13/16" (71 mm) ID x 4-1/2" (114 mm) OD x 1/16" (2 mm) thick

1шт.

9

D127974

SEAL,67.46mm ID x 80.18mm OD x 3.56mm Thk

grease

4шт.

10

REF

INSTRUCTION

CYLINDER boom, for correct assembly and components, see Figure 08-420 thru 08-424

1шт.

11

D140096

PIN,69.98mm OD x 160mm L

Boom Cylinder Closed End to Swing Tower

1шт.

12

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8" NPT

2шт.

13

D127974

SEAL,67.46mm ID x 80.18mm OD x 3.56mm Thk

grease

4шт.

14

S10835

CLEVIS PIN,14.33mm OD x 144.86mm L

PIN, CLEVIS, 9/16" x 5-1/2", hardened

1шт.

15

195-541

WASHER,5/8", SAE

flat, 5/8", plated

1шт.

16

132-311

COTTER PIN,5/32" x 1 1/4"

5/32" x 1 1/4"

1шт.

17

D136518

PIN

boom cylinder rod end to boom, if used

1шт.

18

135-824

GROOVED PIN,1/2" x 2 1/2", Type E, Hardened

PIN, GROOVED, , Center groove, if used 1/2" x 2 1/2", Type E, Hardened

1шт.

19

113-700

BOLT,Hex, 3/4" - 10 x 1", Gr 5

if used Hex, 3/4"-10 x 1", G5

1шт.

20

D133631

WASHER

flat, hardened, special, if used

1шт.

21

D127159

BOOM

backhoe, complete, Includes: Ref. 22 thru 27

1шт.

21a

D140367

BOOM

backhoe, complete, used in production, for service order P/N D127159 boom, Includes: Ref. 22 thru 27

1шт.

22

D136569

BUSHING,70.19mm ID x 94mm OD x 38mm L

2-3/4" (70 mm) ID x 1-5/16" (33 mm) long, boom to swing tower pivot

2шт.

23

D136565

BUSHING,50.22mm ID x 70mm OD x 54mm L

2" (50 mm) ID x 2-1/8" (54 mm) long, with slot for groove pin, right hand side of boom at dipper cylinder closed end pivot and boom cylinder rod end pivot

2шт.

24

D137217

BUSHING,50.19mm ID x 70mm OD x 54mm L

2" (50 mm) ID x 2-1/8" (54 mm) long, without slot for groove pin, left hand side of boom at dipper cylinder closed end pivot and boom cylinder rod end pivot, may be replaced with P/N D136565 bushing on some booms

2-4шт.

25

D135739

BUSHING,70.19mm ID x 90mm OD x 44mm L

2-3/4" (70 mm) ID x 1-3/4" (44 mm) long, with slot for groove pin, right hand side of boom at boom to dipper pivot

1шт.

26

D137218

BUSHING,70.19mm ID x 90mm OD x 44mm L

2-3/4" (70 mm) ID x 1-3/4" (44 mm) long, without slot for groove pin, left hand side of boom at boom to dipper pivot, may be replaced with P/N D135739 bushing on some booms

1шт.

27

D120450

PLUG

plastic

7шт.

28

REF

INSTRUCTION

CYLINDER dipper, for correct assembly and components, see Figures 08-426 or 08-428

1шт.

29

D132492

PIN

dipper cylinder to boom and dipper, if used

2шт.

30

135-824

GROOVED PIN,1/2" x 2 1/2", Type E, Hardened

PIN, GROOVED, , Center groove, if used 1/2" x 2 1/2", Type E, Hardened

2шт.

31

113-700

BOLT,Hex, 3/4" - 10 x 1", Gr 5

if used Hex, 3/4"-10 x 1", G5

2шт.

32

D133631

WASHER

flat, hardened, special, if used

2шт.

33

D132494

PIN,70mm OD x 331mm L

, Serial Range: Boom-dipper

1шт.

34

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8" NPT

2шт.

35

135-823

GROOVED PIN,1/2" x 3 1/4", Type E, Hardened

PIN GROOVED, , Center groove 1/2" x 3 1/4", Type E, Hardened

1шт.

36

D136391

SHIM,72mm ID x 89mm OD x 1.57mm Thk

(M72 ID x 89 OD), (2-27/32" ID x 3-1/2" OD x 1/16" thk), Boom to dipper 1.57mm Thk

1шт.

37

D136392

SHIM,72mm ID x 89mm OD x 3.05mm Thk

(M72 ID x 89 OD) (2-27/32" ID x 3-1/2" OD x 1/8" thk), Boom to dipper 3.05mm Thk

1шт.

38

D133632

WASHER,45mm ID x 100mm OD x 8mm Thk

flat, hardened, special

1шт.

39

D120610

NUT

hex, 1-3/4"-12 NF, special flanged

1шт.

40

D138022

PIN,50mm OD x 240mm L

Dipper cylinder to boom and dipper, if used

2шт.

Either use two of Ref. 41 or two of Ref. 42 for P/N D138022 pin.

1шт.

41

495-81279

WASHER,1.81" ID x 2.75" OD x 0.13" Thk

flat, 1-13/16" ID x 2-3/4" OD x 1/8" thick, plated, if used

6шт.

Either use two of Ref. 41 or two of Ref. 42 for P/N D138022 pin.

1шт.

42

D141164

SPACER,46mm ID x 76mm OD x 2.5mm Thk

1-13/16" ID x 3" OD x 1/8" thick, if used

2шт.

Either use two of Ref. 41 or two of Ref. 42 for P/N D138022 pin.

1шт.

43

D25280

SNAP RING,#175, Ext

Ring, Snap, , pin, if used #175, Ext

6шт.

44

D138023

PIN,50mm OD x 290mm L

boom cylinder rod end to boom, if used

1шт.
