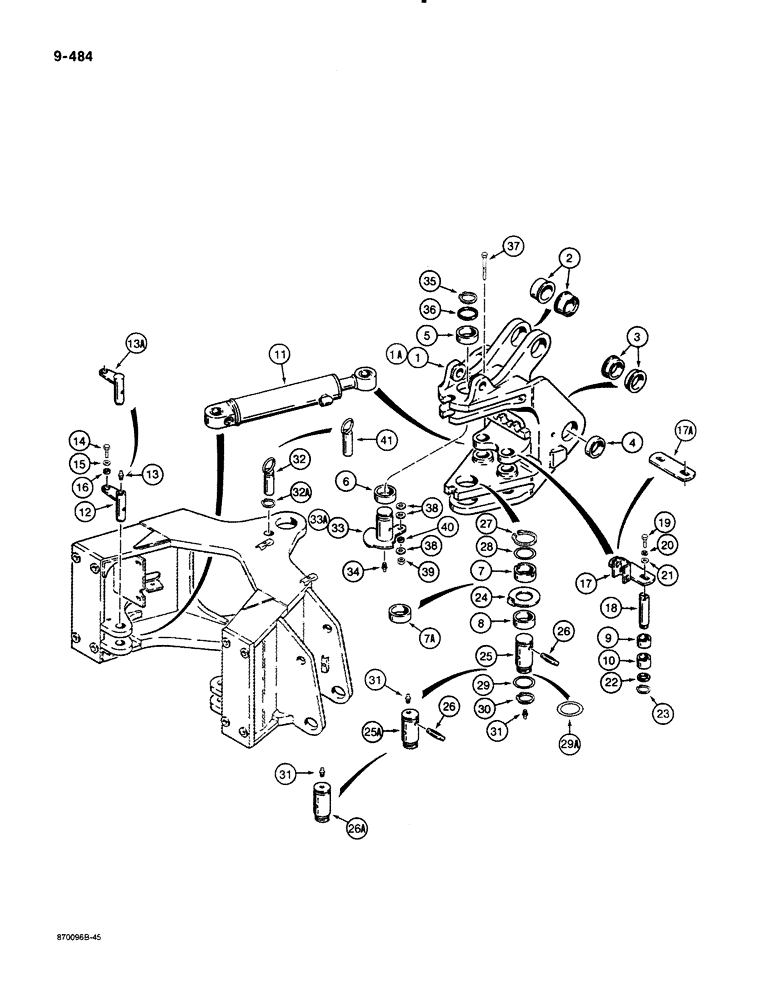

Запчасти Case 580K (09-484) - BACKHOE SWING CYLINDERS AND SWING TOWER (09) - CHASSIS/ATTACHMENTS

1

D133597

HOUSING

TOWER ASSEMBLY backhoe swing, with inner ears, see Figure 09-488 for boom attaching parts, Includes: Ref. 2 thru 10

1шт.

1a

D141067

FRAME

TOWER ASSEMBLY backhoe swing, with inner ears, used in production, for service order P/N D133597 swing tower, Includes: Ref. 2 thru 10

1шт.

2

D135740

BUSHING,70.19mm ID x 94mm OD x 40mm L

boom cylinder pivot

2шт.

3

D135742

BUSHING,70.19mm ID x 94mm OD x 24mm L

inner, boom pivot

2шт.

4

D135741

BUSHING,70.19mm ID x 90mm OD x 24mm L

outer, boom pivot

2шт.

5

D135557

BUSHING,70.5mm ID x 86mm OD x 30mm L

upper, swing tower pivot

1шт.

6

D135559

BUSHING,70.19mm ID x 86mm OD x 28mm L

tower pivot

1шт.

7

D135558

BUSHING,70.19mm ID x 86mm OD x 34mm L

with slots for groove pin, tower pivot, P/N D133597 swing tower

1шт.

7a

D138042

BUSHING

Without slots for groove pin, tower pivot, P/N D141067 swing tower

1шт.

8

D135559

BUSHING,70.19mm ID x 86mm OD x 28mm L

lower, tower pivot

1шт.

9

D136570

BUSHING,40.19mm ID x 55mm OD x 30mm L

upper, swing cylinder pivot

2шт.

10

D136571

BUSHING,40.19mm ID x 55mm OD x 38mm L

lower, swing cylinder pivot

2шт.

11

REF

INSTRUCTION

CYLINDER swing, for correct assembly and components, see Figure 08-416 or 08-418

2шт.

12

D129305

PIN

swing cylinder mounting, closed end, used with grease fitting, no longer used, order P/N D139267 pin, Ref. 13A

2шт.

13

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8" NPT, if used

2шт.

13a

D139267

PIN

swing cylinder mounting, closed end, Replaces: Ref. 12 pin and Ref. 13 grease fitting on some models

2шт.

14

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

15

195-533

WASHER,1/2", SAE

flat, 1/2", plated

2шт.

16

D23740

BUSHING

bolt

2шт.

17

D137419

BAR

RETAINER pin, no longer used, order P/N D132514 retainer

1шт.

17a

D132514

PLATE

RETAINER pin

1шт.

18

D132517

PIN,40mm OD x 155mm L

swing cylinder rod end to swing tower

2шт.

19

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

2шт.

20

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

21

R29595

WASHER

flat, special

2шт.

22

195-2122

WASHER,1 5/16" x 1 3/4" x .065"

flat, 1-1/4" bolt size, 1-5/16" ID x 1-3/4" OD x 1/16" thick

2шт.

23

D26918

SNAP RING,#125, Ext

Ring, Snap, , pin #125, Ext

2шт.

24

D136699

WASHER

bearing, special, swing tower

1шт.

25

D136649

PIN

lower, swing tower to frame, grease fitting mounts in bottom of pin, no longer used, order P/N D140095 pin

1шт.

25a

D140095

PIN

lower, swing tower to frame, grease fitting mounts in top of pin, used with Ref. 26 groove pin, if used

1шт.

26

135-823

GROOVED PIN,1/2" x 3 1/4", Type E, Hardened

PIN GROOVED, , Center groove, if used 1/2" x 3 1/4", Type E, Hardened

1шт.

26a

D138038

PIN

lower, swing tower to frame, grease fitting mounts in top of pin, without groove pin, if used

1шт.

27

933568R1

SNAP RING,M70, Ext

RING snap, pin retaining, upper

1шт.

28

D136392

SHIM,72mm ID x 89mm OD x 3.05mm Thk

(M72 ID x 89 OD) (2-27/32" ID x 3-1/2" OD x 1/8" thk), Upper 3.05mm Thk

1шт.

29

D136700

SHIM,67mm ID x 83mm OD x 1.57mm Thk

2-5/8" (67 mm) ID x 3-17/64" (83 mm) OD x 1/16" (2 mm) thick, lower

1шт.

29a

D136391

SHIM,72mm ID x 89mm OD x 1.57mm Thk

(M72 ID x 89 OD), (2-27/32" ID x 3-1/2" OD x 1/16" thk) 1.57mm Thk

1шт.

30

800-10065

SNAP RING,65mm ID

RING snap, pin retaining, lower

1шт.

31

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8" NPT

1шт.

32

D137899

PIN

swing stop, includes snap ring, no longer available, for service order P/N D141720 pin, Ref. 41, Includes: Ref. 32A

1шт.

32a

800-50040

SNAP RING,M40, Ext

RING snap, swing stop pin

1шт.

33

D140091

PIN

swing tower to frame, upper, used without spacer Ref. 40, no longer used, order P/N D140657 pin and P/N D139603 spacer, Ref. 33A and 40

1шт.

33a

D140657

PIN

swing tower to frame, upper, replaces pin used without spacer

1шт.

34

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8" NPT

1шт.

35

800-10065

SNAP RING,65mm ID

RING snap, pin retaining

1шт.

36

D136700

SHIM,67mm ID x 83mm OD x 1.57mm Thk

2-5/8" (67 mm) ID x 3-17/64" (83 mm) OD x 1/16" (2 mm) thick

1шт.

37

26-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 8

hex head, 1/2"-13 NC x 5-1/2", grade 8

1шт.

38

195-533

WASHER,1/2", SAE

flat, 1/2", plated, used as a spacer

1шт.

39

131-70

NUT,1/2"-13, GB

NUT hex, self-locking, 1/2"-13 NC, plated

1шт.

40

D139603

SPACER

pin mounting

1шт.

41

D141720

PIN

swing stop, without snap ring

1шт.
