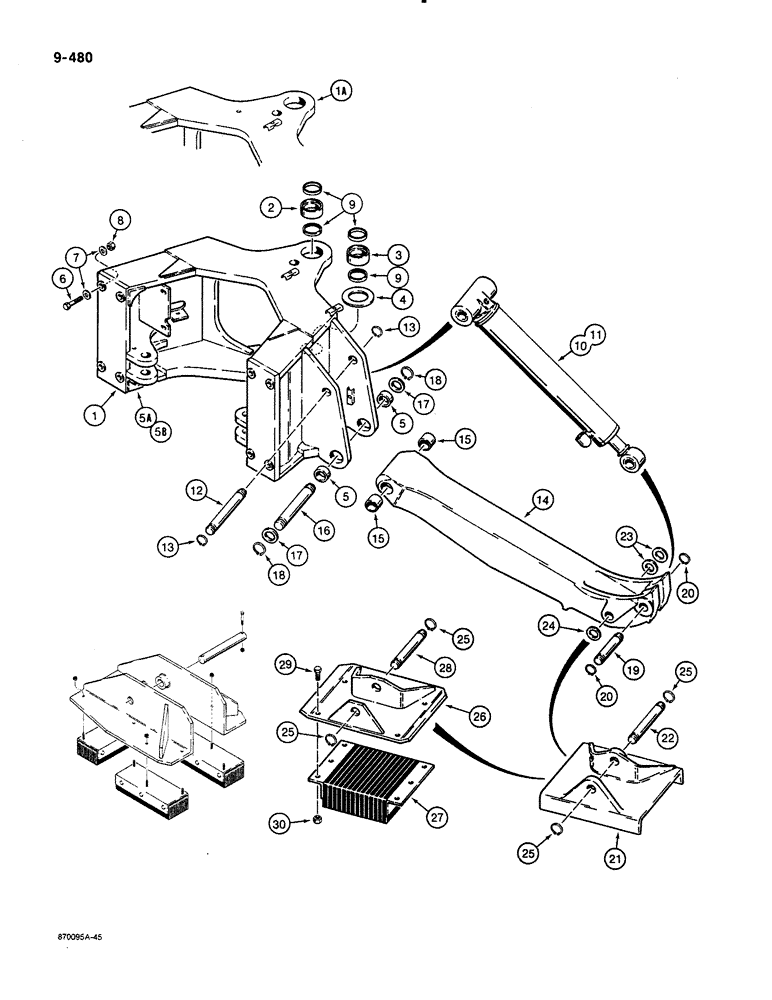

Запчасти Case 580K (09-480) - BACKHOE MOUNTING FRAME AND STABILIZERS (09) - CHASSIS/ATTACHMENTS

1

D135552

FRAME ASSY

FRAME backhoe mounting, for use on loader models with demountable backhoe only, no longer available, Includes: Ref. 2 thru 5B

1шт.

For service order P/N D144455 frame shown below, and P/N 413-8112 bolt, P/N D73296 washer, P/N 492-11050 washer, and P/N 425-108 nut in Figure 09-478

1шт.

1a

D144455

FRAME

backhoe mounting, for use on loader models with demountable backhoe only, Includes: Ref. 2 thru 5B

1шт.

2

D135555

BUSHING,70.19mm ID x 90mm OD x 32mm L

upper, backhoe frame, swing tower mounting

1шт.

3

D135556

BUSHING,70.19mm ID x 90mm OD x 38mm L

lower, backhoe frame, swing tower mounting

1шт.

4

D136472

SPACER

3-1/4" (83 mm) ID x 5-5/16" (135 mm) OD x 1/4" (6 mm) thick, bearing, Serial Range: welds-frame

1шт.

5

D43940

BUSHING,44.68mm ID x 57.15mm OD x 25.4mm L

lower, side, backhoe frame, at stabilizer leg mounting

4шт.

5a

D143460

LARGE PLATE

PLATE gusset, used with P/N D136740 gusset, also order P/N 8-75630 instruction sheet

2шт.

5b

D136740

GUSSET

frame, used with P/N D143460 plate, also order P/N 8-75630 instruction sheet

2шт.

6

26-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 8

- hex, 3/4" -10 NC x 3, G8, used with Ref 1 demountable backhoe frame only

8шт.

7

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

flat, 3/4", hardened, used with Ref. 1 demountable backhoe frame only

16шт.

8

129-572

NUT,3/4"-10, G8

Used with Ref. 1 demountable backhoe frame only 3/4"-10, G8

8шт.

9

D127974

SEAL,67.46mm ID x 80.18mm OD x 3.56mm Thk

frame, at swing tower mounting

4шт.

10

REF

INSTRUCTION

CYLINDER stabilizer, right hand, see Figure 08-414

1шт.

11

REF

INSTRUCTION

CYLINDER stabilizer, left hand, see Figure 08-414

1шт.

12

D133509

PIN,38.1mm OD x 299mm L

stabilizer, Serial Range: cylinder-frame

2шт.

13

D25279

SNAP RING,M35, Int

RING snap, pin retaining

4шт.

14

D133428

STABILIZER

LEG stabilizer, Includes: Ref. 15

2шт.

15

D50146

BUSHING,44.68mm ID x 57.15mm OD x 38.1mm L

leg to frame

2шт.

16

D134723

PIN

stabilizer, Serial Range: leg-frame

2шт.

17

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

flat, 1-3/4" bolt size, 1-13/16" ID x 2-1/2" OD x 1/8" thick

4шт.

18

D25280

SNAP RING,#175, Ext

Ring, Snap, , pin #175, Ext

4шт.

19

D26002

PIN,38.1mm OD x 187.32mm L

stabilizer, Serial Range: cylinder-leg

2шт.

20

D25279

SNAP RING,M35, Int

RING snap, pin retaining

4шт.

21

D88427

PLATE

stabilizer, cleated, if used

2шт.

22

D28648

PIN,1.5" OD x 10 7/16" L

P/N D88427 stabilizer, Serial Range: plate-leg

2шт.

23

D31312

WASHER

spacer, 2-3/4" (70 mm) OD x 1/16" (1.6 mm) thick, hardened

1шт.

24

D28610

WASHER,38.5mm ID x 63.5mm OD x 2.66mm Thk

spacer, 1-1/2" (38 mm) ID x 2-1/2" (64 mm) OD x 7/64" (3 mm) thick

2шт.

25

D25279

SNAP RING,M35, Int

RING snap, pin retaining

4шт.

26

D61376

STABILIZER

PLATE stabilizer, street or cemetery, uses P/N D61368 pad, no longer available, order P/N D142519 plate and P/N D39256 pin, see Ref. 37 and 38 in Figure 09-482

2шт.

27

D61368

PAD

Rubber, used with P/N D61376 plate, if used

2шт.

28

D50696

PIN,38.1mm OD x 225.55mm L

8-7/8" (226 mm) long, P/N D61376 stabilizer plate to leg, if used

2шт.

29

113-713

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

If used Hex, 3/4"-10 x 1 3/4", G5

8шт.

30

129-108

NUT,3/4"-10, G5

If used 3/4"-10, G5

8шт.
