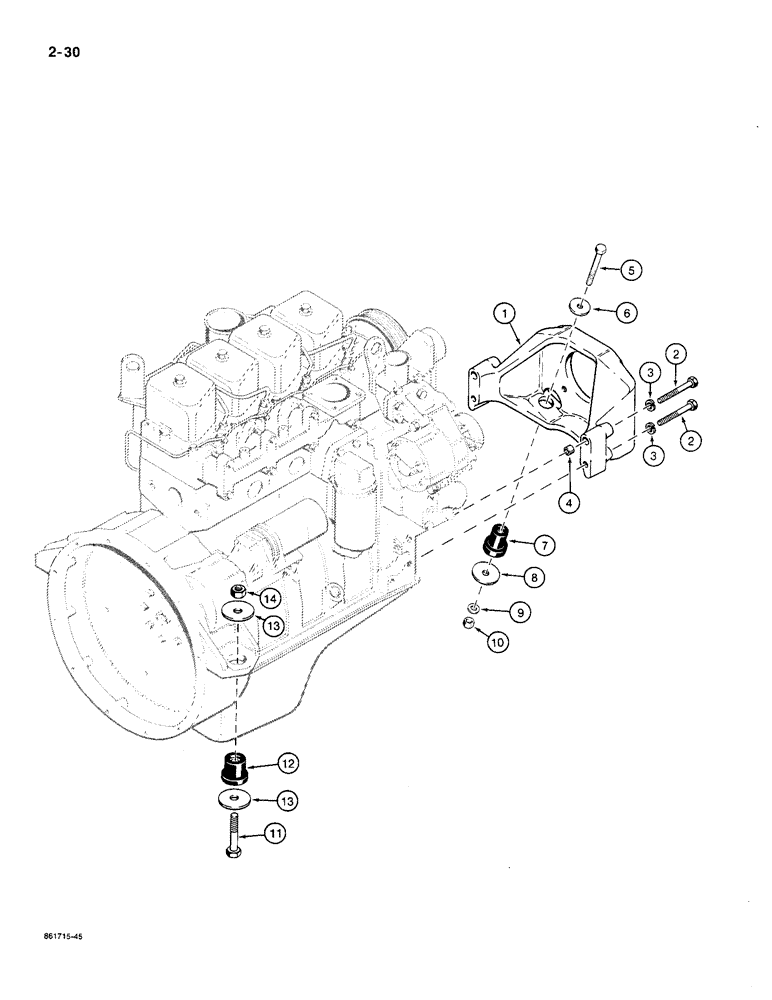

Запчасти Case 580K (02-030) - ENGINE MOUNTING (02) - ENGINE

1

D123725

SUPPORT

engine front

1шт.

2

814-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 8.8

hex head, plated, 12 mm-1.75 x 90 mm, 8.8

4шт.

Refer to Service Bulletin NLB SB 015 88

1шт.

3

892-1112

LOCK WASHER,M12

WASHER - lock, 12 mm, plated

4шт.

4

A170309

BUSHING,13.41mm ID x 18mm OD x 13.25mm L

BUSHING engine support, upper bolt holes

2шт.

5

113-426

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5

2шт.

6

D126338

WASHER,13.1mm ID x 45mm OD x 4.5mm Thk

flat, special, 1/2" (13 mm) ID x 1-25/32" (45 mm) OD x 3/16" (5 mm) thick

2шт.

7

D60627

ISOLATOR,50.8mm OD x 41.1mm L

INSULATOR engine mount, rubber, front

2шт.

8

195-2055

WASHER,17/32" x 2 1/4" x .180"

flat, 1/2" bolt size, 17/32" ID x 2-1/4" OD x 3/16" thick

2шт.

9

195-533

WASHER,1/2", SAE

flat, 1/2", plated

2шт.

10

131-70

NUT,1/2"-13, GB

NUT hex, self-locking, plated, 1/2"-13 NC

2шт.

11

113-628

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

Hex, 5/8"-11 x 3 1/2", G5

2шт.

12

D133316

RUBBER MOUNTING,63.5mm OD x 50.8mm L

INSULATOR engine mount, rubber, rear

2шт.

13

D35009

WASHER

flat, special, hardened

4шт.

14

129-107

NUT,5/8"-11, G5

2шт.
