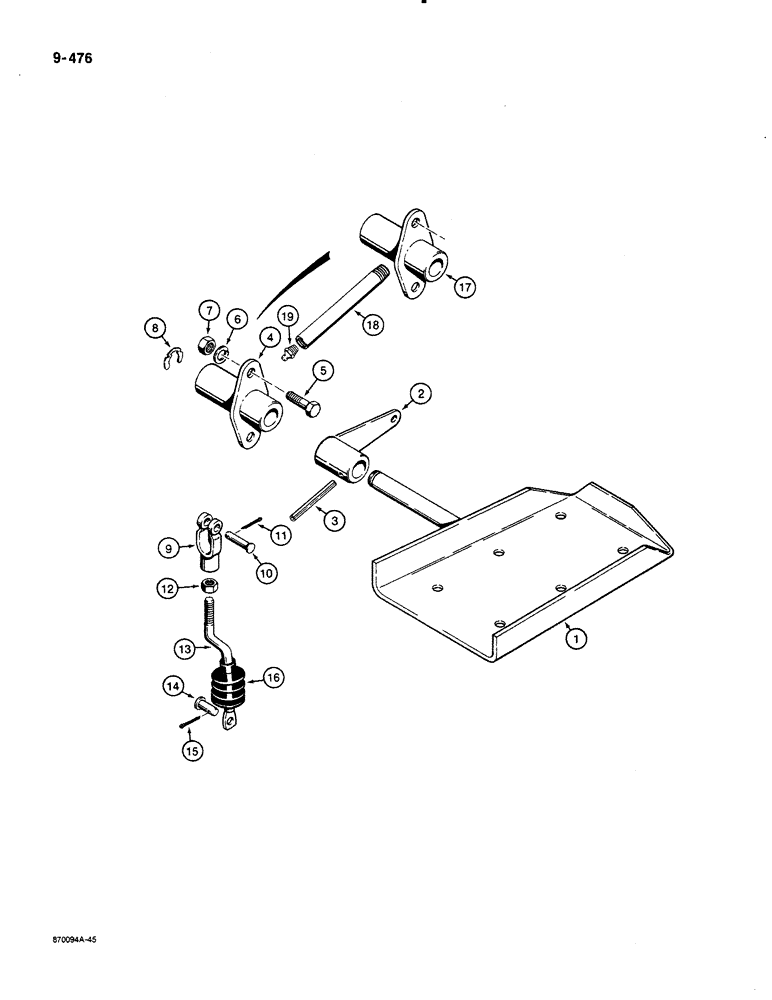

Запчасти Case 580K (09-476) - BACKHOE CONTROLS W/HAND SWING, PARTS USED W/EXTENDABLE DIPPER OR OPTIONAL REAR HYDRAULIC ATTACHMENTS (09) - CHASSIS/ATTACHMENTS

1

D131704

PEDAL

right hand, extendahoe control

1шт.

2

D138837

DIPPER

LEVER pivot, extendahoe control

1шт.

3

138-136

LOCK PIN,1/4" x 1 1/4", Slotted

PIN, 1/4" x 1 1/4", Slotted

1шт.

4

D138838

CYLINDER END CAP

SUPPORT pedal, without hole for tube and grease fitting, no longer used, order Ref. 17 thru 19

1шт.

5

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

6

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

7

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

8

D95097

RING, SNAP

RETAINER clip ring

1шт.

9

D134900

CLEVIS,3/8-24"

3/8", special

1шт.

10

141-73

CLEVIS PIN

PIN clevis, 3/8"

1шт.

11

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

12

425-156

JAM NUT,Jam, 3/8"-24, G5

hex, jam, 3/8" NF

1шт.

13

D133549

SUPPORT ASSY.

ROD extendahoe control

1шт.

14

141-53

CLEVIS PIN,5/16" x .940"

plated, special length 5/16" x .940"

1шт.

15

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

16

D85869

BELLOWS

BOOT control rod, if used

1шт.

17

D140933

SUPPORT

pedal, with hole for tube and grease fitting

1шт.

18

D140890

TUBE

pedal lube

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8" NPT

1шт.
