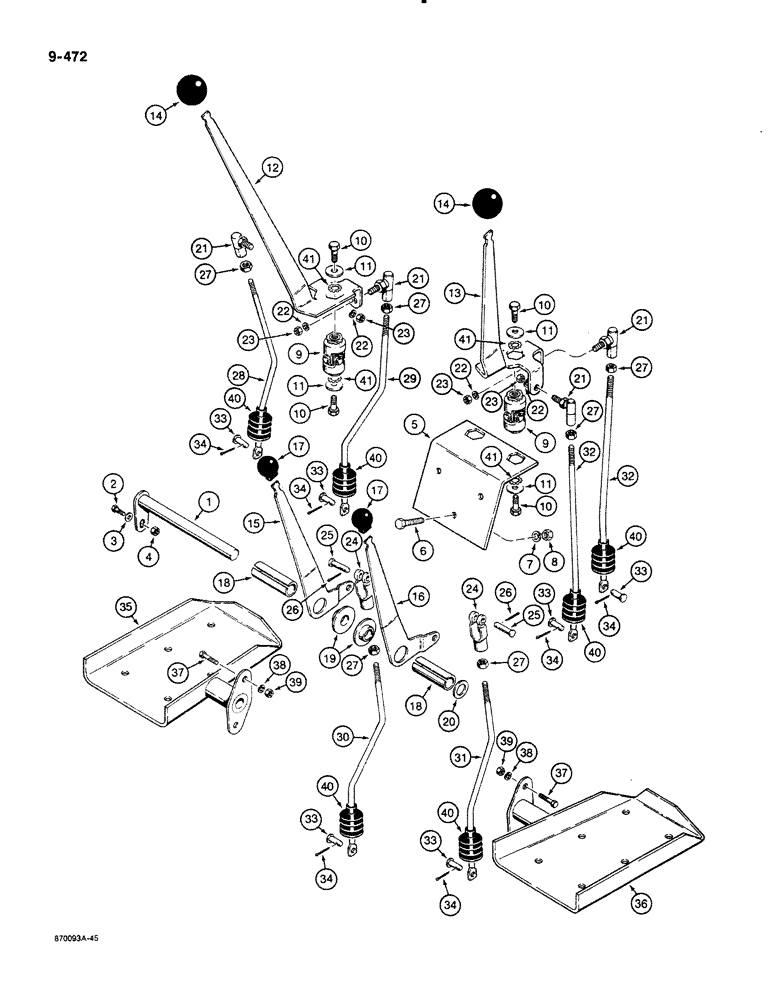

Запчасти Case 580K (09-472) - BACKHOE CONTROLS WITH HAND SWING, WITH NON-EXTENDABLE DIPPER (09) - CHASSIS/ATTACHMENTS

1

D128627

SHAFT

pivot, control levers

1шт.

2

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

3

195-521

WASHER,5/16", SAE

flat, 5/16", plated

1шт.

4

131-4

LOCK NUT,5/16"-18, GB

NUT hex, self-locking, 5/16"-18 NC

1шт.

5

D133542

SUPPORT

BRACKET universal joint mounting, attaches to control tower and valve mounting support

1шт.

6

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

7

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

8

9635082

NUT,5/16" - 18, Gr 5

3шт.

9

D132579

ARTICULATION

JOINT universal, control levers

2шт.

10

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

11

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

flat, 3/8", hardened

4шт.

12

D133538

CONTROL LEVER

LEVER control, left hand, boom and swing

1шт.

13

D133539

CONTROL LEVER

LEVER control, right hand, bucket and dipper

1шт.

14

D135401

KNOB

control levers

2шт.

15

D133540

CONTROL LEVER

LEVER control, left hand stabilizer

1шт.

16

D133541

CONTROL LEVER

LEVER control, right hand stabilizer

1шт.

17

D135399

KNOB

stabilizer control levers

2шт.

18

D128652

SPACER

control lever

2шт.

19

D128616

BUSHING

plastic

2шт.

20

195-545

WASHER,3/4", SAE

flat, 3/4", plated, used as a spacer

1шт.

21

D121417

BALL JOINT,3/8" - 24 x 1-3/8"

JOINT ball, Serial Range: rod-lever

4шт.

22

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

23

129-123

NUT,3/8"-24, G5

4шт.

24

D134900

CLEVIS,3/8-24"

3/8", special

2шт.

25

141-73

CLEVIS PIN

PIN clevis, 3/8"

2шт.

26

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

27

129-123

NUT,3/8"-24, G5

6шт.

28

D134725

ROD

swing control

1шт.

29

D133544

ROD

boom control

1шт.

30

D134716

ROD

left hand stabilizer control

1шт.

31

D134715

ROD

right hand stabilizer control

1шт.

32

D133547

ROD

dipper and bucket control

2шт.

33

141-53

CLEVIS PIN,5/16" x .940"

plated, special length 5/16" x .940"

6шт.

34

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

6шт.

35

D133551

FOOTREST

PLATFORM left hand foot rest

1шт.

36

D133552

FOOTREST

PLATFORM right hand foot rest, not used on models with extendable dipper

1шт.

37

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

38

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

39

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

40

D85869

BELLOWS

BOOT control rods, if used

6шт.

41

193-123

LOCK WASHER,Ext-Int Tooth, 3/8"

WASHER, LOCK, Ext-Int Tooth, 3/8"

4шт.
