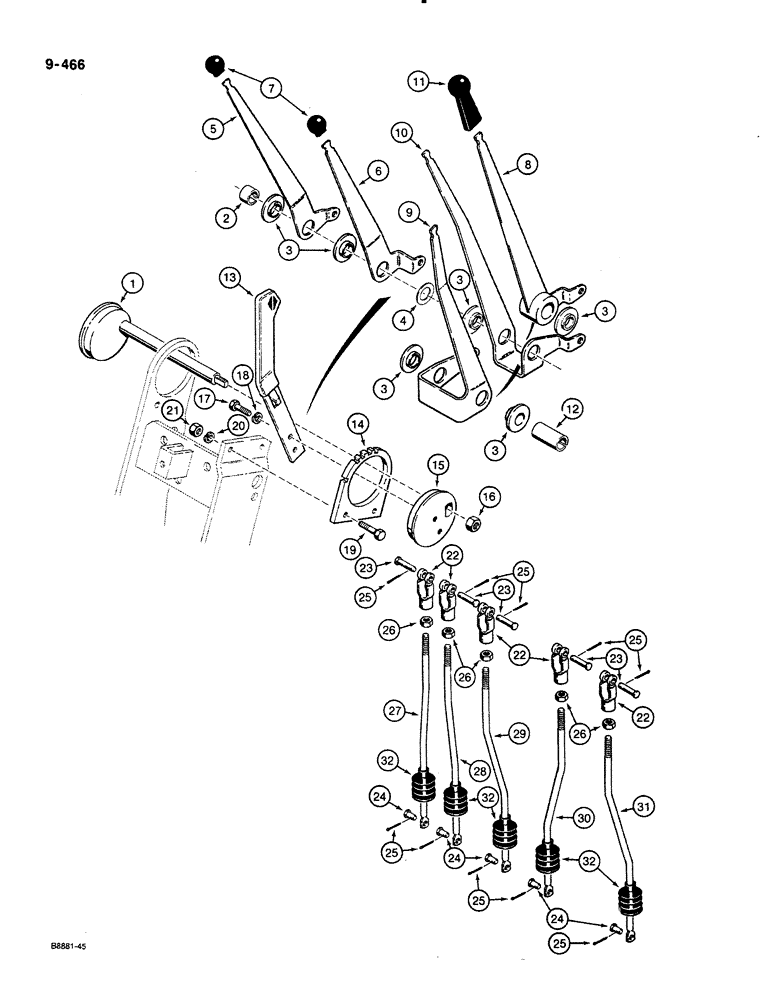

Запчасти Case 580K (09-466) - BACKHOE CONTROLS W/FOOT SWING, W/NON-EXTENDABLE DIPPER USED ON MODELS W/TILT BACKHOE CONTROLS (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
D139431
SHAFT
pivot, control levers
1шт.
2
D139526
SPACER
left side of boom lever
1шт.
3
D128616
BUSHING
plastic, control levers
6шт.
4
A30881
SEALING WASHER,19.45mm ID x 31.35mm OD
WASHER flat, used as a shim between control levers
1шт.
5
D139646
LEVER
control, left hand stabilizer
1шт.
6
D139647
LEVER
control, right hand stabilizer
1шт.
7
D135399
KNOB
stabilizer control levers
2шт.
8
D133474
CONTROL LEVER
LEVER control, dipper
1шт.
9
D133475
CONTROL LEVER
LEVER control, boom
1шт.
10
D133473
CONTROL LEVER
LEVER control, bucket
1шт.
11
D135387
GRIP
KNOB boom, dipper, and bucket control levers
3шт.
12
D139528
SPACER
not used on models with extendable dipper, see Figure 09-470 for extendable dipper spacer
1шт.
13
D141290
HANDLE
lever adjustment
1шт.
14
D139911
PLATE
BRACKET lever adjustment
1шт.
15
D139420
PLATE
lever pivot
1шт.
16
129-148
JAM NUT,Jam, 3/4"-10, G5
jam, hex, 3/4"-10 NC, plated
1шт.
17
113-102
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
Hex, 5/16"-18 x 3/4", G5, Full Thd
2шт.
18
192-20
LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND
WASHER, LOCK, 5/16"
2шт.
19
113-103
BOLT,Hex, 5/16" - 18 x 1", Gr 5
2шт.
20
192-20
LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND
WASHER, LOCK, 5/16"
2шт.
21
9635082
NUT,5/16" - 18, Gr 5
2шт.
22
D134900
CLEVIS,3/8-24"
3/8", special
5шт.
23
141-73
CLEVIS PIN
PIN clevis, 3/8"
5шт.
24
141-53
CLEVIS PIN,5/16" x .940"
plated, special length 5/16" x .940"
5шт.
25
132-320
COTTER PIN,3/32" x 3/4"
PIN, SPLIT (COTTER), 3/32" x 3/4"
10шт.
26
129-123
NUT,3/8"-24, G5
5шт.
27
D139425
ROD
left hand stabilizer control
1шт.
28
D139426
ROD
right hand stabilizer control
1шт.
29
D139424
ROD
dipper control
1шт.
30
D139423
ROD
boom control
1шт.
31
D139422
ROD
bucket control
1шт.
32
D85869
BELLOWS
BOOT rods, at floor plate, if used
5шт.
Выбрано товаров: 32
