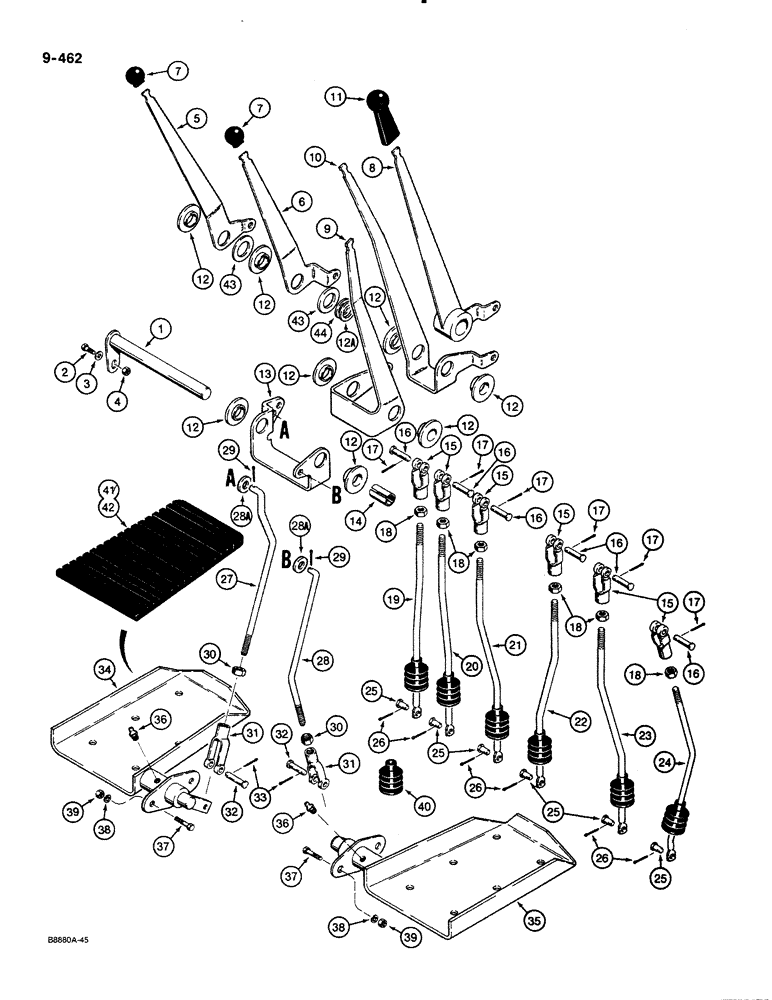

Запчасти Case 580K (09-462) - BACKHOE CONTROLS W/FOOT SWING, W/NON-EXTENDABLE DIPPER USED ON MODELS W/O TILT BACKHOE CONTROLS (09) - CHASSIS/ATTACHMENTS

1

D128627

SHAFT

pivot, control levers

1шт.

2

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

3

195-521

WASHER,5/16", SAE

flat, 5/16", plated

1шт.

4

131-4

LOCK NUT,5/16"-18, GB

NUT hex, self-locking, 5/16"-18 NC

1шт.

5

D133471

CONTROL LEVER

LEVER control, left hand stabilizer

1шт.

6

D133472

CONTROL LEVER

LEVER control, right hand stabilizer

1шт.

7

D135399

KNOB

stabilizer control levers

2шт.

8

D133474

CONTROL LEVER

LEVER control, dipper

1шт.

9

D133475

CONTROL LEVER

LEVER control, boom

1шт.

10

D133473

CONTROL LEVER

LEVER control, bucket

1шт.

11

D135387

GRIP

KNOB boom, dipper, and bucket control levers

3шт.

12

D128616

BUSHING

plastic, control levers and swing bracket

8шт.

12a

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

WASHER flat, used as a shim between control levers

1шт.

13

D134702

BRACKET

swing

1шт.

14

D128615

SPACER

control lever, not used on models with extendable dipper or optional rear hydraulic attachments

1шт.

15

D134900

CLEVIS,3/8-24"

3/8", special

6шт.

16

141-73

CLEVIS PIN

PIN clevis, 3/8"

6шт.

17

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

6шт.

18

129-123

NUT,3/8"-24, G5

6шт.

19

D133477

ROD

left hand stabilizer control

1шт.

20

D133478

ROD

right hand stabilizer control

1шт.

21

D133480

ROD

dipper control

1шт.

22

D133481

ROD

boom control

1шт.

23

D133479

ROD

bucket control

1шт.

24

D134703

ROD

swing control

1шт.

25

141-53

CLEVIS PIN,5/16" x .940"

plated, special length 5/16" x .940"

6шт.

26

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

6шт.

27

D134704

ROD

left hand swing pedal to swing bracket

1шт.

28

D133485

ROD

right hand swing pedal to swing bracket

1шт.

28a

195-525

WASHER,3/8", SAE

flat, 3/8", plated

2шт.

29

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

30

129-123

NUT,3/8"-24, G5

2шт.

31

213-41

ADJUSTABLE CLEVIS,3/8"-24

plated 3/8"-24

2шт.

32

141-54

CLEVIS PIN,3/8" x 1 1/16"

Special length 3/8" x 1 1/16"

2шт.

33

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

34

D143658

PEDAL

left hand swing

1шт.

35

D143657

PEDAL

right hand swing

1шт.

36

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8" NPT

2шт.

37

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

38

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

39

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

40

D85869

BELLOWS

BOOT control rods, if used

6шт.

41

D137492

LINING

PAD rubber, left hand swing pedal, optional deluxe interior

1шт.

42

D137491

LINING

PAD rubber, right hand swing pedal, optional deluxe interior

1шт.

43

D143388

WASHER

special

2шт.

44

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

flat, 3/4", hardened

1шт.
