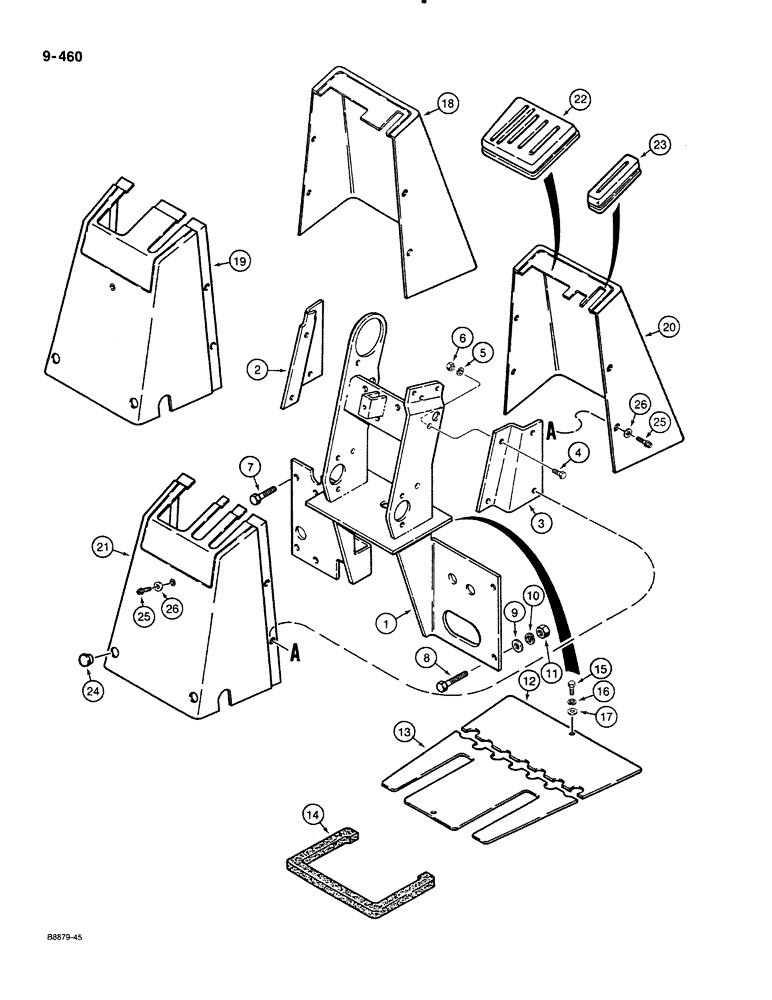

Запчасти Case 580K (09-460) - BACKHOE CONTROL TOWER, USED ON MODELS WITH FOOT SWING, WITH TILT BACKHOE CONTROLS (09) - CHASSIS/ATTACHMENTS

1

D139404

BRACKET

SUPPORT backhoe control and valve mounting

1шт.

2

D139428

PLATE

BRACKET left hand, cover mounting

1шт.

3

D139430

PLATE

BRACKET right hand, cover mounting

1шт.

4

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

5

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

6

9635082

NUT,5/16" - 18, Gr 5

4шт.

7

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

8

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

3шт.

9

195-533

WASHER,1/2", SAE

flat, 1/2", plated

4шт.

10

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

11

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

12

D139415

PLATE

floor, backhoe control tower, rear

1шт.

13

D139414

PLATE

floor, backhoe control tower, front

1шт.

14

D139416

GASKET

SEAL gasket, backhoe control floor plate

1шт.

15

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

16

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

17

195-521

WASHER,5/16", SAE

flat, 5/16", plated

2шт.

18

D140863

COVER

console, rear, used on models with foot swing without extendable dipper, for models with auxiliary hydraulics, for optional rear hydraulic attachments order P/N D140865 cover

1шт.

19

D140862

COVER

console, front, used on models with foot swing without extendable dipper, for models with auxiliary hydraulics, for optional rear hydraulic attachments order P/N D140864 cover

1шт.

20

D140865

COVER

console, rear, used on models with foot swing with extendable dipper or models with auxiliary hydraulics for optional rear hydraulic attachments with or without extendable dipper

1шт.

21

D140864

COVER

console, front, used on models with foot swing with extendable dipper or models with auxiliary hydraulics for optional rear hydraulic attachments with or without extendable dipper

1шт.

23

D139807

BOOT

tilt lever, used in addition to Ref. 22 boot on models with extendable dipper

1шт.

24

353-411

PLUG,Dome, 1.000" hole, Nylon

2шт.

25

187-575

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/4"

SCREW hex washer head, self-tapping, 1/4"-20 NC x 3/4", black

5шт.

26

195-124

WASHER,5/16" x 3/4" x .065"

flat, 1/4", black

5шт.
