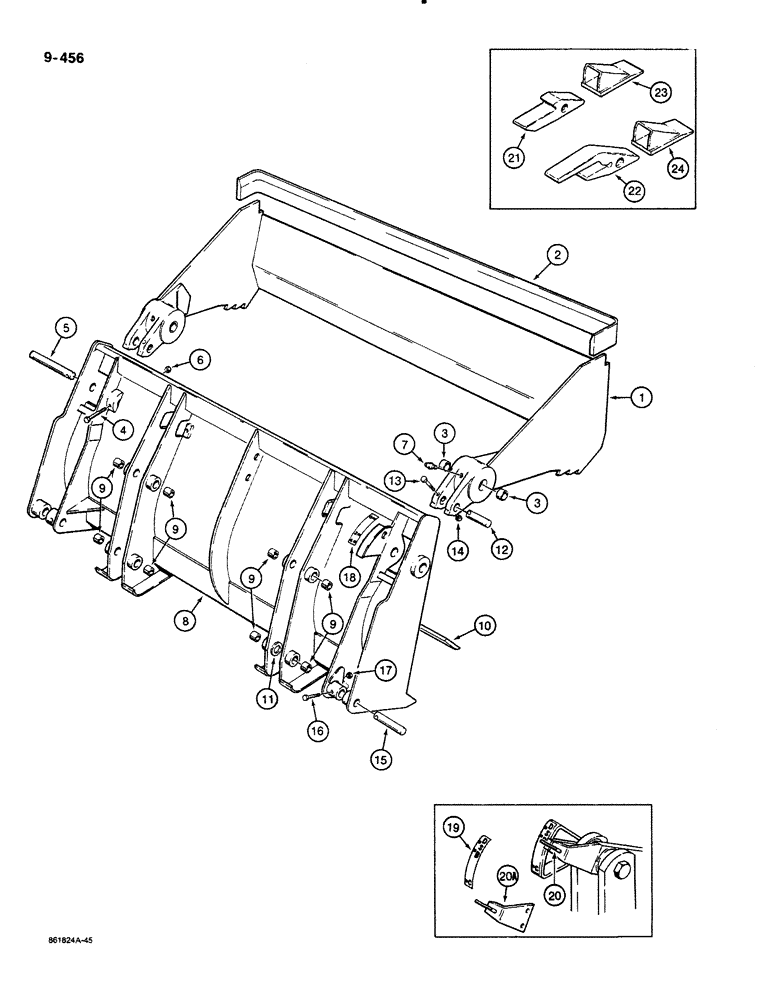

Запчасти Case 580K (09-456) - CLAM BUCKET, OPTIONAL BUCKET TEETH (09) - CHASSIS/ATTACHMENTS

D102070

BUCKET ASSEMBLY clam, 82" (2083 mm) wide, machinery item, order from Machinery Price List, Includes: P/N D133816 and Ref. 1 thru 17

1шт.

D133816

SHELL

CLAM ASSEMBLY bucket, Includes: Ref. 1 thru 3

1шт.

P/N D133816 clam assembly uses compaction plate P/N D75630

1шт.

1

NSS

NOT SOLD SEPARAT

CLAM bucket

1шт.

For Ref. 1, the wear plate on the back side of the clam assembly is P/N D75630, on the other end from Ref. 2.

1шт.

2

D76258

EDGE, CUTTING,4” W x 80.5” L x 6” H x 3/4” Thk

EDGE cutting, bucket

1шт.

3

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

clam pivot

4шт.

4

113-267

BOLT,Hex, 3/8" - 16 x 4", Gr 5

2шт.

5

D51391

PIN,15mm OD x 74mm L

Pivot, Serial Range: clam-blade

2шт.

6

131-666

LOCK NUT,3/8"-16, GB

NUT hex, self-locking, 3/8"-16 NC, plated

2шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8" NPT

2шт.

D133817

BLADE

ASSEMBLY clam bucket, Includes: Ref. 8-11

1шт.

8

NSS

NOT SOLD SEPARAT

BLADE bucket

1шт.

9

D129264

BUSHING,40.3mm ID x 50mm OD x 28mm L

bucket ear

8шт.

10

D75636

EDGE, CUTTING

EDGE cutting, blade

1шт.

11

D135602

WASHER

flat, 1-5/8" ID x 2-3/8" OD, hardened, special, welded to lower inner bucket ears

2шт.

12

D51392

PIN,31.72mm OD x 101.6mm L

cylinder mounting, upper

2шт.

13

113-203

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

2шт.

14

131-666

LOCK NUT,3/8"-16, GB

NUT hex, self-locking, 3/8"-16 NC, plated

2шт.

15

D51393

PIN,31.72mm OD x 152.4mm L

Cylinder mounting, lower

2шт.

16

113-248

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

2шт.

17

131-666

LOCK NUT,3/8"-16, GB

NUT hex, self-locking, 3/8"-16 NC, plated

2шт.

18

321-1708

DECAL

0 - 2 - 4, clam bucket opening indicator

1шт.

19

321-1707

DECAL

clam bucket position

1шт.

20

D120546

INDICATOR

POINTER bucket position, welded to clam bucket link, see Figure 09-450 for link, if used

1шт.

20a

D123157

SUPPORT

POINTER bucket position, bolts to clam bucket link, see Figure 09-450 for link and mounting hardware, if used

1шт.

21

D26368

SUPPORT

SHANK tooth, original equipment, optional bucket teeth

10шт.

22

D58499

SUPPORT

SHANK tooth, heavy duty service option, bucket

10шт.

23

D27748

TOOTH

POINT tooth, original equipment, optional bucket teeth

10шт.

24

D36720

TOOTH

POINT tooth, heavy duty service option, bucket

10шт.
