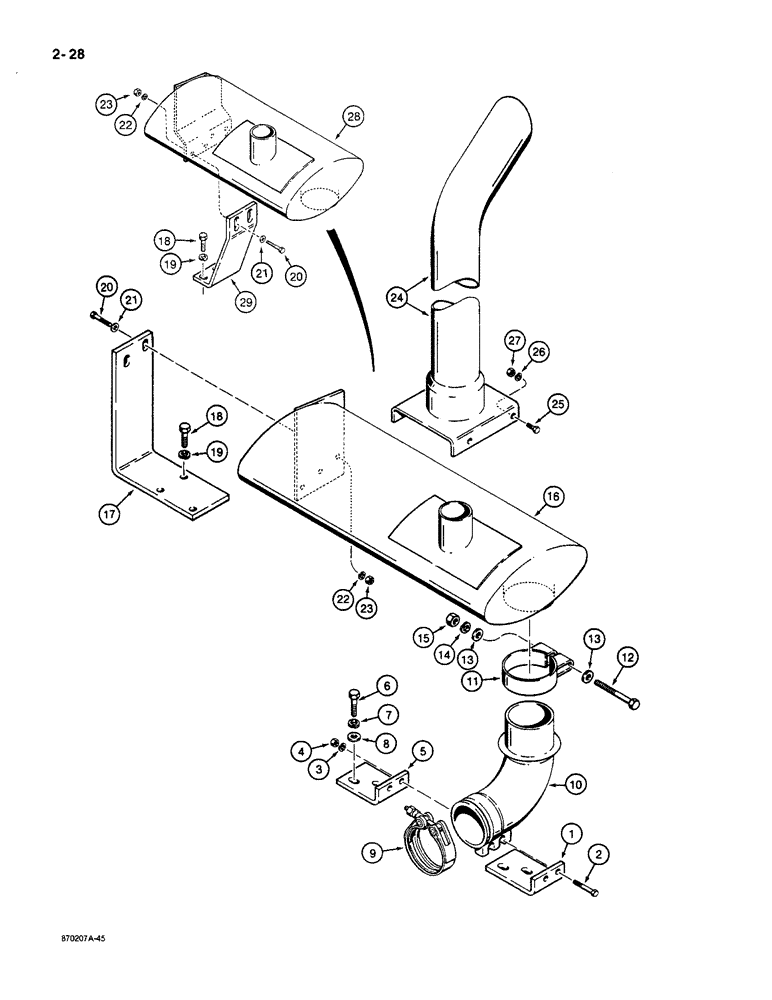

Запчасти Case 580K (02-028) - MUFFLER AND EXHAUST SYSTEM, MODELS WITH TURBOCHARGED ENGINES (02) - ENGINE
№
Артикул
Название
Примечание
Количество
1
A184021
BRACKET lower
1шт.
2
814-8035
BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8
2шт.
3
892-1108
LOCK WASHER,M8
plated M8
2шт.
4
825-1108
NUT,Hex, M8, Cl 8
hex, plated, 8 mm-1.25
2шт.
5
A184033
BRACKET
upper
1шт.
6
814-10035
BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd
- hex, 10 mm - 1.5 x 35 mm (8.8), plated
2шт.
7
892-1110
LOCK WASHER,M10
WASHER lock, plated, 10 mm
2шт.
8
895-11010
WASHER,11mm ID x 20mm OD x 2mm Thk
2шт.
9
A170467
CLAMP,72mm ID
T-bolt type, includes hardware, at engine
1шт.
10
A173607
ELBOW
engine exhaust
1шт.
11
R27691
CLAMP
at muffler
1шт.
12
113-2272
BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5
1шт.
13
195-129
WASHER,3/8"
flat, plated, 3/8"
2шт.
14
192-46
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
1шт.
16
A173453
MUFFLER
engine exhaust, used with P/N A173682 bracket, no longer available, order P/N A184890 muffler and P/N D141541 bracket
1шт.
17
A173682
BRACKET
muffler support, if used
1шт.
18
814-10025
BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd
- hex, plated, 10 mm-1.5 x 25 mm, 8.8, See Figure 04-098 for bolt used on models with air conditioning
2-3шт.
19
892-1110
LOCK WASHER,M10
WASHER lock, plated, 10 mm
2-3шт.
20
814-8030
BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd
hex head, plated, 8 mm-1.25 x 30 mm, 8.8
2шт.
21
895-11008
WASHER,9mm ID x 16mm OD x 1.6mm Thk
2шт.
22
892-11008
LOCK WASHER,8mm ID
WASHER, LOCK, M8
2шт.
23
825-1108
NUT,Hex, M8, Cl 8
hex, plated, 8 mm-1.25
2шт.
24
D136087
PIPE, EXHAUST SYSTEM
PIPE exhaust, muffler extension
1шт.
25
113-103
BOLT,Hex, 5/16" - 18 x 1", Gr 5
hex head, plated, 5/16"-18 NC x 3/4"
4шт.
26
192-20
LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND
WASHER, LOCK, 5/16"
4шт.
27
9635082
NUT,5/16" - 18, Gr 5
4шт.
28
A184890
MUFFLER
engine exhaust, used with P/N D141541 bracket
1шт.
29
D141541
SUPPORT
BRACKET muffler support
1шт.
Выбрано товаров: 29
