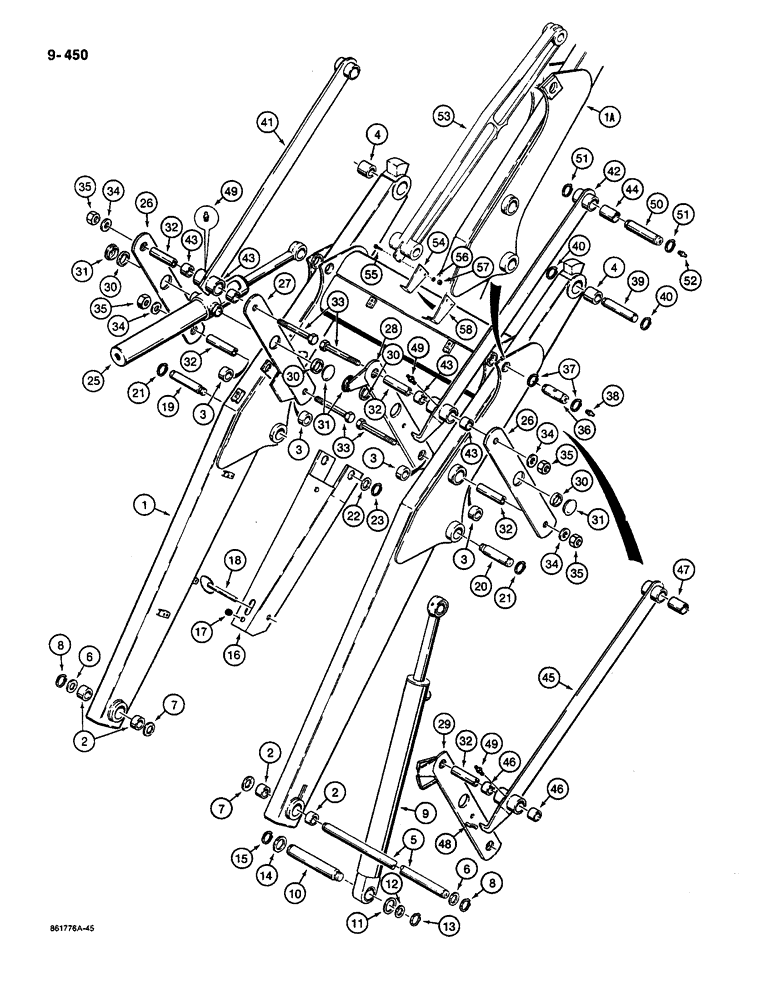

Запчасти Case 580K (09-450) - LOADER FRAME AND MOUNTING PARTS (09) - CHASSIS/ATTACHMENTS

1

D134402

FRAME ASSY

FRAME loader lift, standard, has (4) cage nuts on left-hand arm and (2) cage nuts on cross tube, no longer available, for service order P/N D141775 loader frame and (1) P/N D88417 cage nut, Includes: Ref. 2 thru 4

1шт.

The cage nuts welded on the inside of the frame are P/N D88417.

1шт.

1

D136112

FRAME

loader lift, models with clam bucket auxiliary hydraulics, has (4) cage nuts on left-hand arm, (3) cage nuts on cross tube, and (3) cage nuts on right-hand arm, no longer available, Includes: Ref. 2 thru 4

1шт.

The cage nuts welded on the inside of the frame are P/N D88417.

1шт.

For service order P/N D141775 loader frame and (1) P/N D88417 cage nut.

1шт.

1a

D141775

FRAME

loader lift, service replacement, Includes: Ref. 2 thru 4

1шт.

2

D37392

BUSHING,44.68mm ID x 53.98mm OD x 31.75mm L

loader frame pivot

4шт.

3

D37763

BUSHING

bucket cylinder link pivot

4шт.

4

D129240

BUSHING,40.23mm ID x 50mm OD x 70mm L

bucket mounting

2шт.

5

D136526

SHAFT

loader lift frame pivot

1шт.

6

D143409

WASHER,44.86mm ID x 63.5mm OD x 3.31mm Thk

flat, special

2шт.

7

R27181

WASHER

SPRING, Belleville, special, lift frame pivot shaft seal

2шт.

8

D25280

SNAP RING,#175, Ext

Ring, Snap, , lift frame pivot shaft #175, Ext

2шт.

9

REF

INSTRUCTION

CYLINDER loader lift, right-hand and left-hand, left-hand not shown, for correct assembly and components see Figure 08-408

2шт.

10

D135669

PIN,50mm OD x 277mm L

lift cylinder pivot, closed end

2шт.

11

D143431

WASHER

special, outer side only

2шт.

12

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

flat, 1-13/16" ID x 2-1/2" OD x 1/8" thick, outer

2шт.

13

D25280

SNAP RING,#175, Ext

Ring, Snap, , pin, lift cylinder closed end, outer #175, Ext

2шт.

14

195-2155

WASHER,2 1/16" x 3" x .109"

flat, 2-1/16" ID x 3" OD x 1/8" thick, inner

2шт.

15

800-50050

SNAP RING,M50, Ext, Hvy

RING snap, pin retaining, lift cylinder closed end, inner

2шт.

16

D138247

STRUT

support, loader frame, left-hand lift arm only

1шт.

17

D121047

GROMMET

support strut

1шт.

18

D120675

HITCH PIN

PIN lock, cotterless hitch

1шт.

19

D135603

PIN,40mm OD x 178mm L

left-hand lift cylinder rod end

1шт.

20

D135604

AXLE PIN,40mm OD x 152mm L

PIN right-hand lift cylinder rod end

1шт.

21

800-50040

SNAP RING,M40, Ext

RING snap, pin retaining, lift cylinder rod end, outer

2шт.

22

195-2140

WASHER,1 7/16" x 2" x .065"

flat, 1-7/16" ID x 2" OD x 1/16" thick, inner

2шт.

23

800-50035

SNAP RING,M35, Ext

RING snap, pin retaining, lift cylinder rod end, inner

2шт.

24

G108486

CYLINDER ASSY.

CYLINDER loader bucket, right-hand, not shown, see Figure 08-410

1шт.

25

G108487

CYLINDER ASSY.

CYLINDER loader bucket, left-hand, see Figure 08-410

1шт.

26

D137876

PITMAN

LINK bucket cylinder, right-hand and left-hand, outer, Includes: Ref. 30 and 31

2шт.

27

D137875

PITMAN

LINK bucket cylinder, left-hand, inner, with return-to-dig indicator, Includes: Ref. 30 and 31

1шт.

28

D137877

PITMAN

LINK bucket cylinder, right-hand, inner, with extra hole for antirollback rod, models without clam bucket, see Ref. 29 for models with clam bucket, Includes: Ref. 30 and 31

1шт.

29

D137874

PITMAN

LINK bucket cylinder, right-hand, inner, with extra hole for antirollback rod, models with clam bucket, see Ref. 28 for models without clam bucket, Includes: Ref. 30 and 31

1шт.

30

D129272

BUSHING

one per each link, Ref. 26-29

1шт.

31

NSS

NOT SOLD SEPARAT

CAP, one per each link, Ref. 26-29

1шт.

Can be replaced with P/N D151034 closed end bushing

1шт.

32

D132076

SPACER,23.75mm ID x 38.07mm OD x 135mm L

BUSHING cylinder links, spacer

4шт.

33

113-931

BOLT,Hex, 1" - 8 x 7-1/2", Gr 5

hex head, 1"-8 NC x 7-1/2", plated

4шт.

34

195-553

WASHER,1", SAE

flat, 1", plated

4шт.

35

129-110

NUT,1"-8, G5

4шт.

36

D129279

PIN,40mm OD x 109mm L

bucket cylinder rod end

2шт.

37

800-50040

SNAP RING,M40, Ext

RING snap, pin retaining, bucket cylinder rod end

4шт.

38

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8" NPT

2шт.

39

D129256

PIN,40mm OD x 175mm L

loader lift frame to lower bucket mounting hole

2шт.

40

800-50040

SNAP RING,M40, Ext

RING snap, pin retaining, lift frame to lower bucket mounting hole

4шт.

41

D133235

PITMAN

LINK bucket, left-hand, with bushings, no longer available, order P/N D139595 link, see Ref. 53, Includes: Ref. 43 and 44

1шт.

42

D133236

LINK

bucket, with bushings, with bucket position indicator, right-hand, models without clam bucket, see Ref. 45 for models with clam bucket, no longer available, Includes: Ref. 43 and 44

1шт.

For service order (1) P/N D139595 link, (1) P/N D121194 pointer, (2) P/N 413-520 bolts, (2) P/N 492-11031 washers, and (2) P/N 425-105 nuts, see Ref. 53 thru 57.

1шт.

43

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

two per each link, Ref. 41 and 42

2шт.

44

D129240

BUSHING,40.23mm ID x 50mm OD x 70mm L

bucket mounting, one per each link, Ref. 41 and 42

1шт.

45

D138975

PITMAN

LINK bucket, with bucket position indicator, right-hand, models with clam bucket, see Ref. 42 for models without clam bucket, no longer available, Includes: Ref. 46-48

1шт.

For service, order (1) P/N D139595 link, (1) P/N D123157 pointer, (2) P/N 413-520 bolts, (2) P/N 492-11031 washers, and (2) P/N 425-105 nuts, see Ref. 53 and 55 thru 58.

1шт.

46

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

link, bucket indicator end

2шт.

47

D129240

BUSHING,40.23mm ID x 50mm OD x 70mm L

bucket mounting

1шт.

48

D120546

INDICATOR

POINTER bucket position, welded to position indicator

1шт.

49

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8" NPT

2шт.

50

D129257

PIN,40mm OD x 175mm L

link to upper bucket mounting hole

2шт.

51

800-50040

SNAP RING,M40, Ext

RING snap, pin retaining, link to bucket

4шт.

52

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8" NPT

2шт.

53

D139595

PITMAN

LINK bucket, without bushings, left-hand or right-hand, with or without clam bucket

2шт.

54

D121194

POINTER

bucket position, models without clam bucket

1шт.

55

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

hex, 5/16" NC x 1-1/4"

2шт.

56

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

57

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

58

D123157

SUPPORT

POINTER bucket position, models with clam bucket

1шт.
