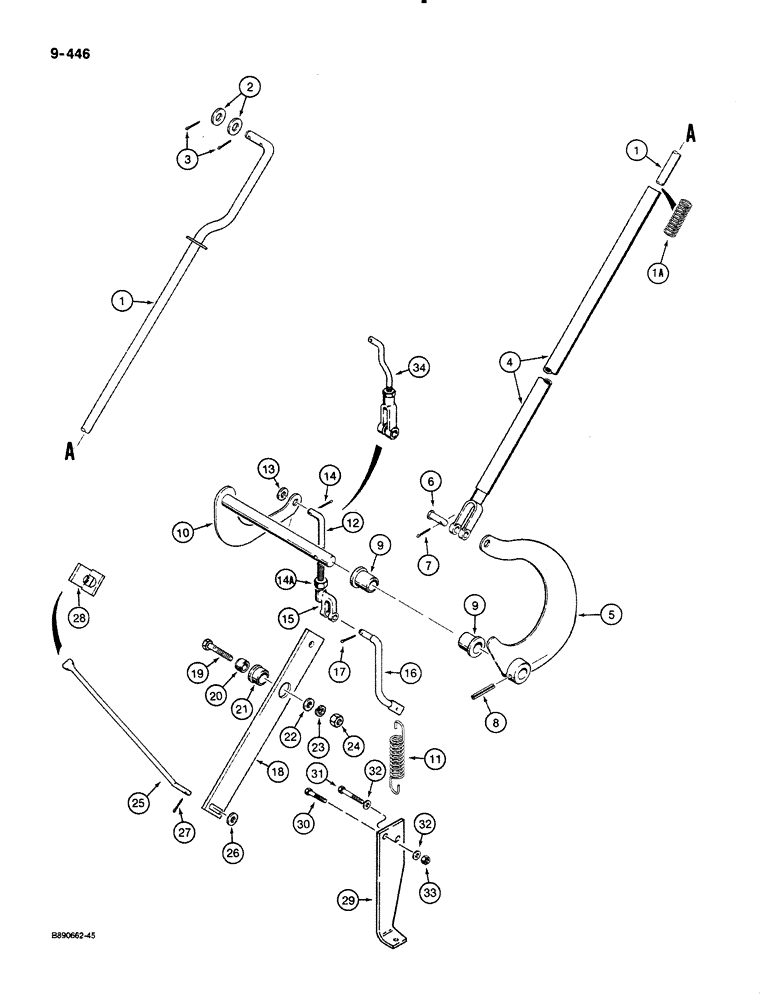

Запчасти Case 580K (09-446) - LOADER ANTIROLLBACK CONTROL (09) - CHASSIS/ATTACHMENTS

1

D140602

ROD

rollback, attaches to bucket cylinder link

1шт.

1

D143429

ROD

rollback, attaches to bucket cylinder link

1шт.

1a

D140612

SPRING

rollback rod

1шт.

2

195-533

WASHER,1/2", SAE

flat, 1/2", plated

2шт.

3

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

4

D140600

TUBE

antirollback, rod

1шт.

5

D140556

LEVER

rollback, mounts to chassis upright

1шт.

The illustratioin is incorrect per blueprint. The welded on sleeve should be on the opposite side of the arm.

1шт.

6

141-54

CLEVIS PIN,3/8" x 1 1/16"

Special length 3/8" x 1 1/16"

1шт.

7

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

8

135-819

GROOVED PIN,1/4" x 1 1/2", Type E, Hardened

PIN, GROOVED, 1/4" x 1 1/2", Type E, Hardened

1шт.

9

D124452

BUSHING

lever, at chassis upright

2шт.

10

D140529

SHAFT

rollback

1шт.

11

D120911

SPRING

return

1шт.

13

195-525

WASHER,3/8", SAE

flat, 3/8", plated

1шт.

14

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

14a

25-116

NUT,Hex, 3/8"-24, G5

hex, jam, 3/8"-24 NF, if used

1шт.

15

L11182

YOKE,3/8" - 24

CLEVIS, 3/8", offset, used with Ref. 12 rod, if used

1шт.

16

D140530

ROD

rollback

1шт.

17

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

18

D138927

LEVER

pivot, rollback

1шт.

19

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

20

D135892

BUSHING

pivot lever, small

1шт.

21

D136277

BUSHING

pivot lever, large

1шт.

22

195-106

WASHER,1/2"

flat, , plated 1/2"

1шт.

23

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

24

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

25

D136726

ROD

rollback

1шт.

26

195-521

WASHER,5/16", SAE

flat, 5/16", plated

1шт.

27

132-330

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

1шт.

28

D136728

PLATE

BLOCK tapped, attaches to loader valve bucket control rod

1шт.

29

D140531

SUPPORT

BRACKET spring mounting, attaches to loader control valve mounting bracket

1шт.

30

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

31

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

32

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

33

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

34

D143800

ROD

rollback, attaches to lever shaft

1шт.
