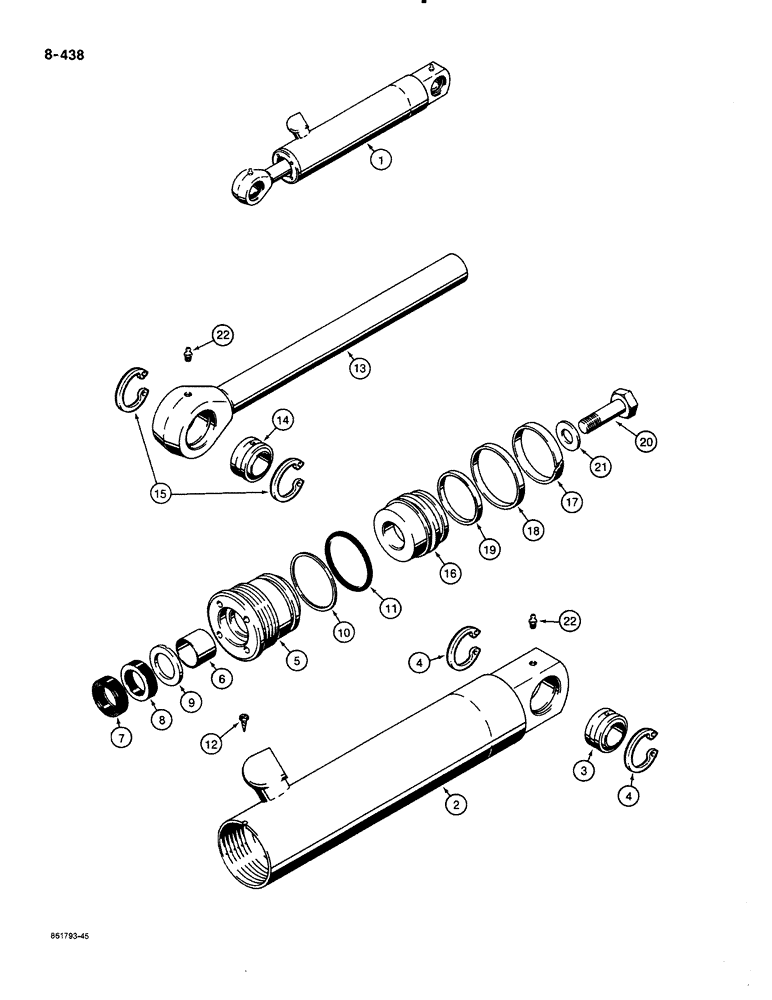

Запчасти Case 580K (08-438) - THREE-POINT HITCH PITCH CYLINDER (08) - HYDRAULICS

1

1976884C1

JACK BODY

CYLINDER ASSEMBLY, 2-1/2" (64 mm) ID x 7" (178 mm) stroke, pitch, Includes: Ref. 2 thru 22

1шт.

138235A1R

REMAN-HYD CYLINDER

580K, Reman For New P/N 1976884C1

1шт.

138235A1C

CORE-HYD CYLINDER

Return Number

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes

1шт.

2

G109852

TUBE,63.42 mm ID x 63.5 mm DIA x 411.2 mm L

ASSEMBLY cylinder, Includes: Ref. 3 and 4

1шт.

3

D22200

BEARING,25.4mm ID x 36.5mm OD x 22.23mm L

BUSHING tube, self-aligning

1шт.

4

D27833

SNAP RING,1.625", Int, #162

Ring, Snap, , bushing 1.625", Int, #162

2шт.

G108971

GLAND

ASSEMBLY cylinder, Includes: Ref. 5 thru 11

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND cylinder

1шт.

6

G102864

BEARING

BUSHING center

1шт.

Part of Seal Kit P/N G110055

1шт.

7

D95141

WIPER SEAL

WIPER piston rod

1шт.

Part of Seal Kit P/N G110055

1шт.

8

D36968

SEAL,31.72mm ID x 44.58mm OD x 10.69mm Thk

U-cup, piston rod, wide

1шт.

Part of Seal Kit P/N G110055

1шт.

9

G109092

SEAL,31.37mm ID x 44.63mm OD x 3.05mm Thk

buffer, grooved, piston rod, narrow

1шт.

Part of Seal Kit P/N G110055

1шт.

10

G109297

BACK-UP RING,56.9mm ID x 63.5mm OD x 1.4mm Thk

RING backup, gland O-ring

1шт.

Part of Seal Kit P/N G110055

1шт.

11

A14506

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

gland

1шт.

Part of Seal Kit P/N G110055

1шт.

12

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW hex head, slotted, self-tapping, No. 8-32 NC x 3/8", plated

1шт.

13

1976902C1

ROD

ASSEMBLY piston, 1-1/4" (32 mm) diameter, Includes: Ref. 14 and 15

1шт.

14

D22200

BEARING,25.4mm ID x 36.5mm OD x 22.23mm L

BUSHING rod, self-aligning

1шт.

15

D27833

SNAP RING,1.625", Int, #162

Ring, Snap, , bushing 1.625", Int, #162

2шт.

16

G108977

PISTON

cylinder

1шт.

17

G100714

RING

wear, piston

1шт.

Part of Seal Kit P/N G110055

1шт.

18

G102289

SEAL,59.92mm ID x 64.64mm OD x 6.96mm Thk

piston

1шт.

Part of Seal Kit P/N G110055

1шт.

19

G100713

SEALING RING,Square, 5.28mm Thk x 49.91mm ID

RING backup, piston seal

1шт.

Part of Seal Kit P/N G110055

1шт.

20

28-1036

BOLT,Hex, 5/8" - 18 x 2-1/4", Gr 8

hex head, 5/8"-18 NF x 2-1/4", grade 8

1шт.

21

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER flat, 5/8", hardened

1шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8" NPT

2шт.

G110055

GASKET KIT

KIT seal, Includes: Ref. 6 thru 11 and 17 thru 19

1шт.
