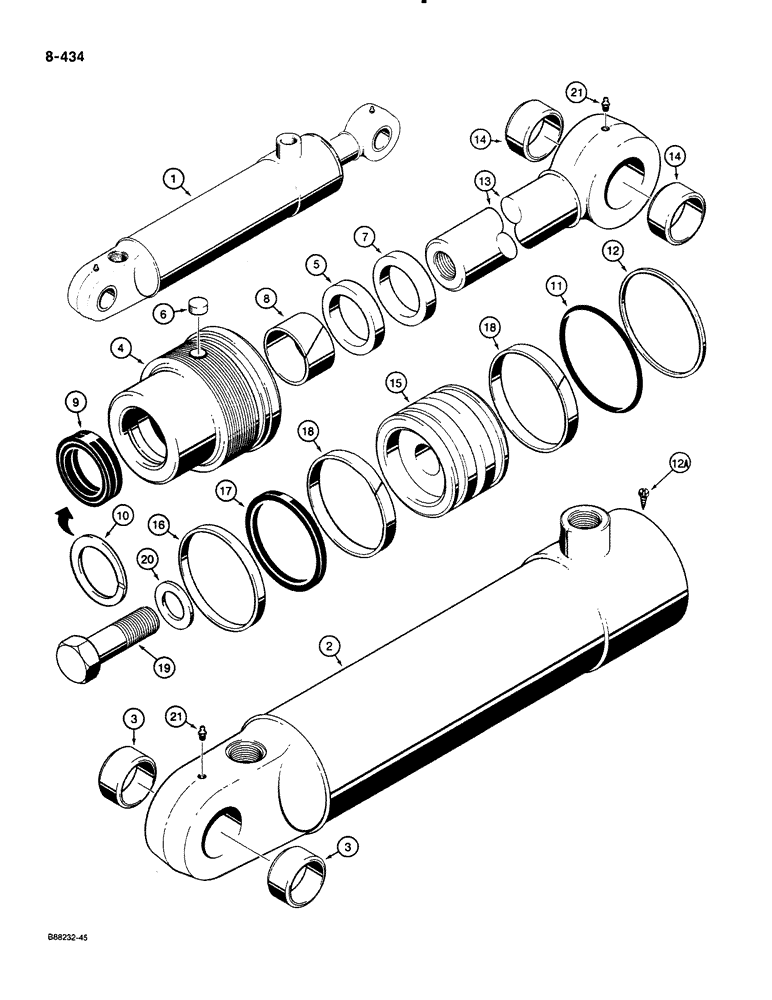

Запчасти Case 580K (08-434) - G101189 THREE-POINT HITCH LIFT CYLINDER (08) - HYDRAULICS

1

G101189

CYLINDER ASSY.

CYLINDER ASSEMBLY, 3" (76 mm) ID x 8-3/8" (213 mm) stroke, lift, Includes: Ref. 2 thur 21

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes

1шт.

2

G32330

TUBE,16.59" L

ASSEMBLY cylinder, Includes: Ref. 3

1шт.

3

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

tube

2шт.

G104222

GLAND

ASSEMBLY cylinder, Includes: Ref. 4 thru 12

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND cylinder

1шт.

5

NSS

NOT SOLD SEPARAT

RING retaining, bushing

1шт.

6

G102569

PLUG

nylon, thread locking, gland, if used

1шт.

7

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER piston rod

1шт.

Part of Seal Kit P/N G109452

1шт.

8

G102424

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

- Center

1шт.

Part of Seal Kit P/N G109452

1шт.

9

G107921

SEAL,38.07mm ID x 50.93mm OD x 10.69mm Thk

U-cup, with O-ring, piston rod, wide

1шт.

Part of Seal Kit P/N G109452

1шт.

9

G100776

SEAL

U-cup, piston rod, service option for severe heat or cold

1шт.

10

G109093

SEAL,37.72mm ID x 50.98mm OD x 3.05mm Thk

buffer, grooved, piston rod, narrow

1шт.

Part of Seal Kit P/N G109452

1шт.

11

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

gland

1шт.

Part of Seal Kit P/N G109452

1шт.

12

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

backup, gland O-ring

1шт.

Part of Seal Kit P/N G109452

1шт.

12a

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW hex head, slotted, self-tapping, No. 8-32 NC x 3/8", plated, if used

1шт.

13

G33457

PISTON ROD

ROD ASSEMBLY piston, 1-1/2" (38 mm) diameter, Includes: Ref. 14

1шт.

14

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

piston rod

2шт.

15

G100442

PISTON

cylinder

1шт.

16

G102288

SEAL,Locking, 71.71mm ID x 76.43mm OD x 6.96mm Thk

- Piston

1шт.

Part of Seal Kit P/N G109452

1шт.

17

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

RING backup, piston seal

1шт.

Part of Seal Kit P/N G109452

1шт.

18

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

RING wear, piston

2шт.

Part of Seal Kit P/N G109452

1шт.

19

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

hex head, 3/4"-16 NF x 2-1/2", grade 8

1шт.

20

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

hardened

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8" NPT

2шт.

G109452

GASKET KIT

KIT seal, Includes: Ref. 7, 8, 9 P/N G107921, Ref. 10, 11, 12 and 16 thru 18

1шт.
