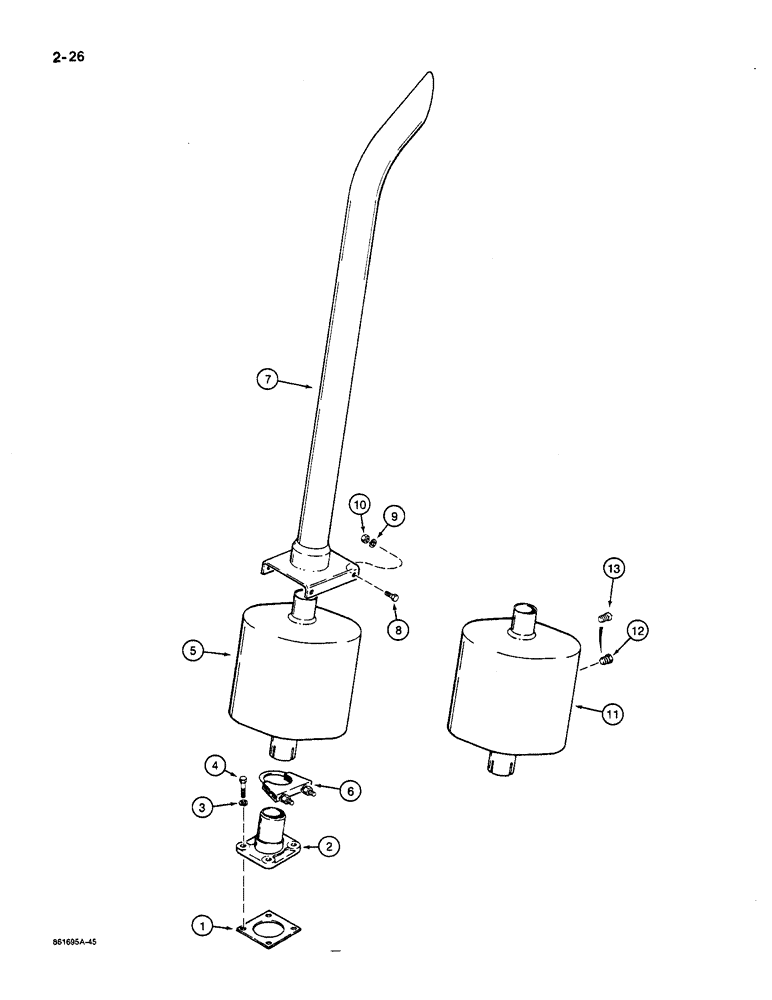

Запчасти Case 580K (02-026) - MUFFLER AND EXHAUST SYSTEM, MODELS WITHOUT TURBOCHARGED ENGINES, SPARK ARRESTER MUFFLER (02) - ENGINE

1

A170151

MANIFOLD GASKET

muffler adapter

1шт.

2

A173610

ADAPTER

muffler

1шт.

3

892-1110

LOCK WASHER,M10

WASHER lock, plated, 10 mm

4шт.

4

814-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

- hex, plated, 10 mm-1.5 x 25 mm, 8.8

4шт.

5

A184237

MUFFLER

engine exhaust, under hood, standard, if used

1шт.

6

A62874

CLAMP

muffler, includes hardware

1шт.

7

D136087

PIPE, EXHAUST SYSTEM

PIPE exhaust, muffler extension, Serial Range: attaches-hood

1шт.

8

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

9

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

10

9635082

NUT,5/16" - 18, Gr 5

4шт.

11

A184241

MUFFLER

spark arrester, under hood, if used, Includes: Ref. 12 and 13

1шт.

12

217-87

PLUG,Hex Hd, 3/8"-18 NPTF, Brass

hex head, brass, 3/8" NPT, if used, spark arrester muffler

1шт.

13

221-1015

DRAIN PLUG,Sq Hd, 1/4"-14 NPTF

PLUG square head, steel, 3/4" NPT, if used, spark arrester muffler

1шт.
