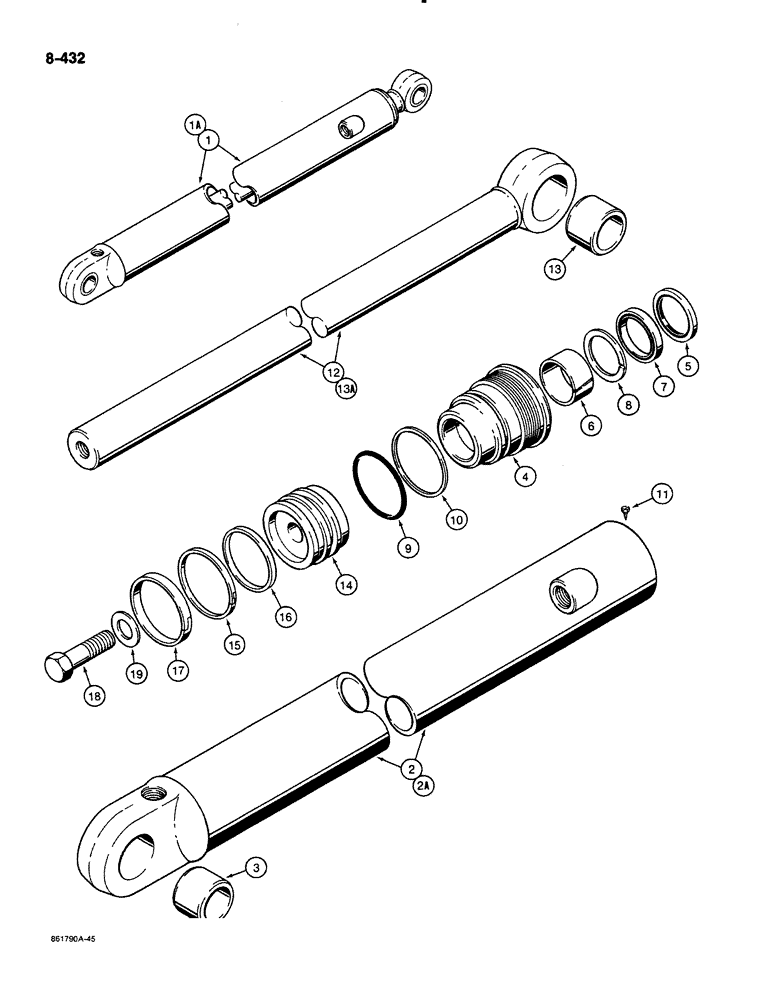

Запчасти Case 580K (08-432) - BACKHOE DIPPER EXTENSION CYLINDER (08) - HYDRAULICS

1

G106708

CYLINDER ASSY.,Double Acting, 44.4mm Rod, 1080mm Stroke

CYLINDER ASSEMBLY, 3" (76 mm) ID x 42-1/2" (1080 mm) stroke, dipper extension, used with two-piece outer extendable dipper member, if used, Includes: Ref. 2 thru 19

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes

1шт.

1a

1980200C1

CYLINDER ASSY.

CYLINDER ASSEMBLY, 3" (76 mm) ID x 42-1/16" (1068 mm) stroke, dipper extension, used with one-piece outer extendable dipper member, if used, Includes: Ref. 2 thru 19

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes

1шт.

2

G108715

TUBE,76.1 mm ID x 1291.3 mm L

ASSEMBLY, P/N G106708 cylinder, Includes: Ref. 3

1шт.

2a

1980213C1

HYD CYL SLEEVE

TUBE ASSEMBLY, P/N 1980200C1 cylinder, Includes: Ref. 3

1шт.

3

G108507

BUSHING,40.19mm ID x 47.62mm OD x 38.1mm L

P/N G108715 or P/N 1980213C1 tube

1шт.

G109885

GLAND

ASSEMBLY cylinder, Includes: Ref. 4 thru 10

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND cylinder

1шт.

5

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER piston rod

1шт.

Part of Seal Kit P/N G110049

1шт.

6

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

center

1шт.

Part of Seal Kit P/N G110049

1шт.

7

G107922

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

U-cup, with O-ring, piston rod, wide

1шт.

Part of Seal Kit P/N G110049

1шт.

8

G109094

SEAL,44.07mm ID x 57.33mm OD x 3.05mm Thk

buffer, grooved, piston rod, narrow

1шт.

Part of Seal Kit P/N G110049

1шт.

9

G10389

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

gland

1шт.

Part of Seal Kit P/N G110049

1шт.

10

G109298

RING,69.47mm ID x 75.57mm OD x 1.4mm Thk

backup, gland O-ring

1шт.

Part of Seal Kit P/N G110049

1шт.

11

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW hex head, slotted, self-tapping, No. 8-32 NC x 3/8", plated

1шт.

12

G108718

ROD ASSY.

ROD ASSEMBLY piston, 1-3/4" (44 mm) diameter, with bushing, P/N G106708 cylinder, Includes: Ref. 13

1шт.

13

G108507

BUSHING,40.19mm ID x 47.62mm OD x 38.1mm L

P/N G108718 rod

1шт.

13a

1980296C1

PISTON ROD

ROD piston, 1-3/4" (44 mm) diameter, without bushing, P/N 1980200C1 cylinder

1шт.

14

G107277

PISTON

cylinder

1шт.

15

G102288

SEAL,Locking, 71.71mm ID x 76.43mm OD x 6.96mm Thk

- Piston

1шт.

Part of Seal Kit P/N G110049

1шт.

16

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

RING backup, piston seal

1шт.

Part of Seal Kit P/N G110049

1шт.

17

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

RING wear, piston

1шт.

Part of Seal Kit P/N G110049

1шт.

18

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

hex head, 3/4"-16 NF x 2-1/2", grade 8

1шт.

19

S94643

WASHER,19.43mm ID x 38.1mm OD x 6.35mm Thk

flat, 3/4", hardened

1шт.

G110049

KIT

seal, Includes: Ref. 5 thru 10 and 15 thru 17

1шт.
