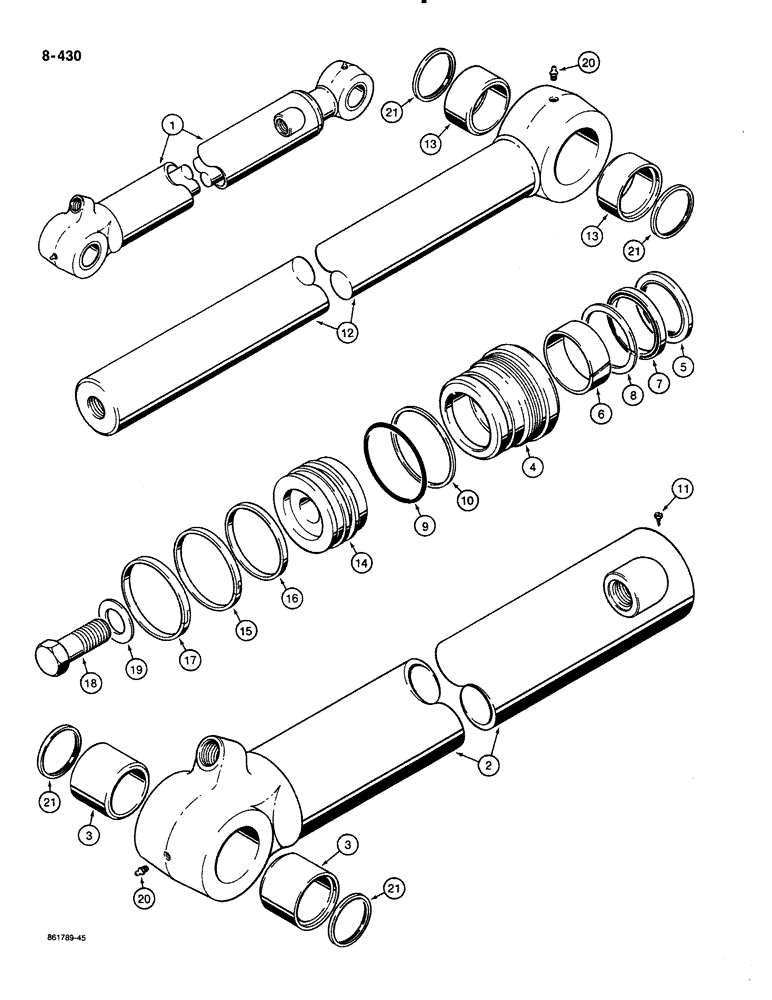

Запчасти Case 580K (08-430) - BACKHOE BUCKET CYLINDER (08) - HYDRAULICS

1

G110597

CYLINDER

ASSEMBLY, 3-1/2" (89 mm) ID x 34-5/16" (872 mm) stroke, bucket, Includes: Ref. 2 thru 21

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes

1шт.

1

235916A1R

REMAN-HYD CYLINDER

Reman New PN G110597

1шт.

1

235916A1C

CORE-HYD CYLINDER

Return Number

1шт.

2

G110598

TUBE

ASSEMBLY cylinder, Includes: Ref. 3

1шт.

3

G108417

BUSHING,50.19mm ID x 66.68mm OD x 46mm L

tube

2шт.

G109894

GLAND

ASSEMBLY cylinder, Includes: Ref. 4 thru 10

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND cylinder

1шт.

5

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

WIPER piston rod

1шт.

Part of Seal Kit P/N G110046

1шт.

6

G109908

BUSHING,63.5mm ID x 66.57mm OD x 25.15mm L

center

1шт.

Part of Seal Kit P/N G110046

1шт.

7

G109228

SEAL,63.45mm ID x 76.25mm OD x 10.69mm Thk

U-cup, with O-ring, piston rod, wide

1шт.

Part of Seal Kit P/N G110046

1шт.

8

G107998

SEAL,63.07mm ID x 79.2mm OD x 4.9mm Thk

buffer, grooved, piston rod, narrow

1шт.

Part of Seal Kit P/N G110046

1шт.

9

G46889

O-RING,0.139" Thk x 3.109" ID, -235, Cl 5, 75 Duro

gland

1шт.

Part of Seal Kit P/N G110046

1шт.

10

D38858

BACK-UP RING,82.17mm ID x 88.27mm OD x 1.4mm Thk

RING backup, gland O-ring

1шт.

Part of Seal Kit P/N G110046

1шт.

11

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW hex head, slotted, self-tapping, No. 8-32 NC x 3/8", plated

1шт.

12

1978059C1

PISTON ROD

ROD ASSEMBLY piston, 2-1/2" (64 mm) diameter, Includes: Ref. 13

1шт.

13

G108525

BUSHING,50.19mm ID x 66.68mm OD x 30mm L

piston rod

2шт.

14

G107404

PISTON

cylinder

1шт.

15

G102286

SEAL,Locking, 85.47mm ID x 90.19mm OD x 6.96mm Thk

- piston

1шт.

Part of Seal Kit P/N G110046

1шт.

16

G100710

RING,Square, 5.28mm Thk x 75.31mm ID

backup, piston seal

1шт.

Part of Seal Kit P/N G110046

1шт.

17

G100711

SEAL,Split, 82.55mm ID x 88.9mm OD x 9.52mm Thk

Piston

1шт.

Part of Seal Kit P/N G110046

1шт.

18

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

1шт.

19

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

flat, 1", hardened

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8" NPT

2шт.

21

D123655

SEAL,50mm ID x 60.15mm OD x 4.06mm Thk

tube and rod eyes

4шт.

G110046

KIT

seal, Includes: Ref. 5 thru 10 and 15 thru 17

1шт.
