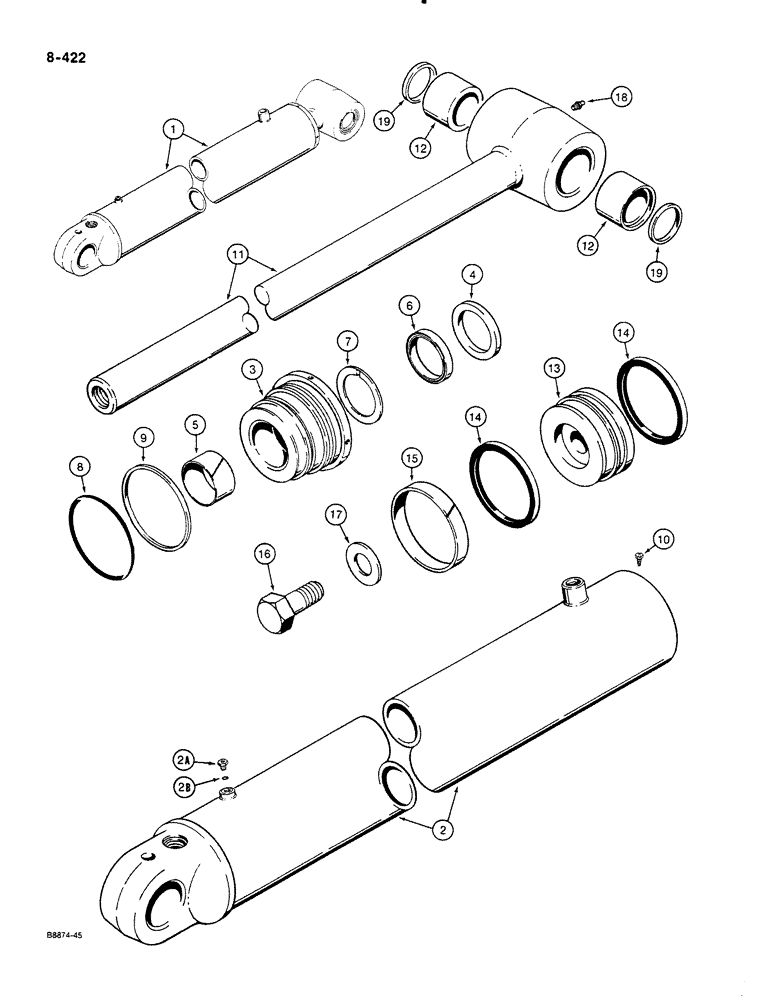

Запчасти Case 580K (08-422) - BACKHOE BOOM CYLINDER, WITH STRAIGHT PORT (08) - HYDRAULICS

1

1971713C1

CYLINDER

ASSEMBLY, 5" (127 mm) ID x 33-3/16" (843 mm) stroke, boom, no longer available, order P/N 1971713C2 cylinder, Includes: Ref. 2 thru 19

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes

1шт.

1

1971713C2

CYLINDER ASSY.

CYLINDER ASSEMBLY, 5" (127 mm) ID x 33-3/16" (843 mm) stroke, boom, if used, Includes: Ref. 2 thru 19

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes

1шт.

2

1971714C1

TUBE

P/N 1971713C1 or P/N 1971713C2 cylinder, Includes: Ref. 2A and 2B

1шт.

2a

86625138

PLUG,7/18" - 14

Includes Ref. 2B Hex Soc, 7/8"-14 ORB

1шт.

2b

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

plug

1шт.

G110575

GLAND

ASSEMBLY cylinder, Includes: Ref. 3 thru 9

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND cylinder

1шт.

4

G108712

WIPER

piston rod

1шт.

Part of Seal Kit P/N G110583

1шт.

5

G102426

BUSHING,57.15mm ID x 60.22mm OD x 37.85mm L

- Center

1шт.

Part of Seal Kit P/N G110583

1шт.

6

G107924

SEAL,57.1mm ID x 69.9mm OD x 10.69mm Thk

U-cup, piston rod, wide

1шт.

Part of Seal Kit P/N G110583

1шт.

7

G109086

RING

SEAL buffer, grooved, piston rod, narrow

1шт.

Part of Seal Kit P/N G110583

1шт.

8

39738

O-RING,4.609" ID x 0.139" Width

gland

1шт.

Part of Seal Kit P/N G110583

1шт.

9

G107970

BACK-UP RING,120.27mm ID x 127.13mm OD x 1.4mm Thk

Gland O-Ring

1шт.

Part of Seal Kit P/N G110583

1шт.

10

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW hex head, slotted, self-tapping, No. 8-32 NC x 3/8", plated

1шт.

11

G108414

ROD

piston, 2-1/4" (57 mm) diameter, P/N 1971713C1 cylinder, Includes: Ref. 12

1шт.

11

1978136C1

PISTON ROD

ROD piston, 2-1/4" (57 mm) diameter, P/N 1971713C2 cylinder, Includes: Ref. 12

1шт.

12

G108417

BUSHING,50.19mm ID x 66.68mm OD x 46mm L

P/N G108414 or P/N 1978136C1 rod

2шт.

13

1958071C1

PISTON ASSY.

PISTON ASSEMBLY, P/N 1971713C1 cylinder, includes relief valve which is not serviced separately

1шт.

13

1958121C1

PISTON ASSY.

PISTON ASSEMBLY, P/N 1971713C2 cylinder, includes relief valve which is not serviced separately, no longer available, order piston assembly P/N 1958071C1 instead, and must also order seal P/N G110269 and ring P/N G102090, Ref. 14 and 15

1шт.

14

G110269

SEAL,112.5mm ID x 126.88mm OD x 7.29mm Thk

piston

2шт.

Part of Seal Kit P/N G110583

1шт.

15

G102090

RING,127mm OD, Ext

wear, piston

1шт.

Part of Seal Kit P/N G110583

1шт.

16

28-2048

BOLT,Hex, 1-1/4" - 12 x 3", Gr 8

hex head, 1-1/4"-12 NF x 2-1/2", grade 8

1шт.

17

G104989

WASHER,34.29mm ID x 60.3mm OD x 4.78mm Thk

flat, 1-1/4", hardened

1шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8" NPT

1шт.

19

D123655

SEAL,50mm ID x 60.15mm OD x 4.06mm Thk

rod eye

2шт.

G110583

KIT

seal, Includes: Ref. 4 thru 9, 14 and 15

1шт.
