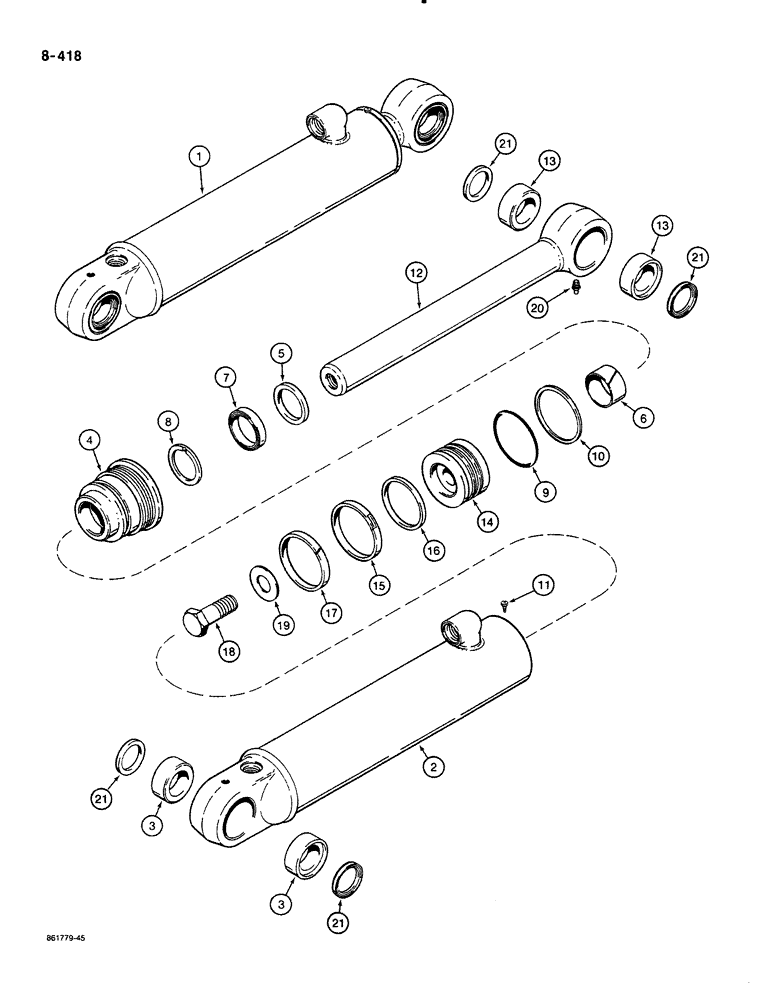

Запчасти Case 580K (08-418) - BACKHOE SWING CYLINDERS, 3-1/2 INCH INSIDE DIAMETER (08) - HYDRAULICS

1

1971702C1

CYLINDER ASSY.

CYLINDER ASSEMBLY, 3-1/2" (89 mm) ID x 12" (305 mm) stroke, swing, no longer available, order P/N 1971702C2 cylinder, Includes: Ref. 2 thru 21

2шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes

1шт.

This cylinder assembly must be used with P/N 1971713C2 boom cylinder with straight ports, antrictors, at swing section ports in P/N G110711, G110712, G110713, or G110714 backhoe control valve. See Figure 08-316 for hydraulic circuit.

1шт.

1

1971702C2

CYLINDER ASSY.

CYLINDER ASSEMBLY, 3-1/2" (89 mm) ID x 12" (305 mm) stroke, swing, if used, Includes: Ref. 2 thru 21

2шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes

1шт.

This cylinder assembly must be used with P/N 1971713C2 boom cylinder with straight ports, antrictors, at swing section ports in P/N G110711, G110712, G110713, or G110714 backhoe control valve. See Figure 08-316 for hydraulic circuit.

1шт.

2

1971704C1

TUBE

ASSEMBLY, P/N 1971702C1 or P/N 1971702C2 cylinder, Includes: Ref. 3

1шт.

3

1542668C1

BUSHING,40.19mm ID x 56.68mm OD x 24mm L

tube, Replaces: P/N G108526

2шт.

1978135C1

JACK PISTON

GLAND ASSEMBLY cylinder, Includes: Ref. 4 thru 10

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND cylinder

1шт.

5

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER piston rod

1шт.

Part of Seal Kit P/N G110621

1шт.

6

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

center

1шт.

Part of Seal Kit P/N G110621

1шт.

7

G107922

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

U-cup, with O-ring, piston rod, wide

1шт.

Part of Seal Kit P/N G110621

1шт.

8

G109094

SEAL,44.07mm ID x 57.33mm OD x 3.05mm Thk

buffer, grooved, piston rod, narrow

1шт.

Part of Seal Kit P/N G110621

1шт.

9

G46889

O-RING,0.139" Thk x 3.109" ID, -235, Cl 5, 75 Duro

gland

1шт.

Part of Seal Kit P/N G110621

1шт.

10

D38858

BACK-UP RING,82.17mm ID x 88.27mm OD x 1.4mm Thk

RING backup, gland O-ring

1шт.

Part of Seal Kit P/N G110621

1шт.

11

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW hex head, slotted, self-tapping, No. 8-32 NC x 3/8", plated

1шт.

12

1976961C1

PISTON ROD

ROD ASSEMBLY piston, 1-3/4" (44 mm) diameter, P/N 1971702C1 cylinder, Includes: Ref. 13

1шт.

This rod assembly is interchangable with P/N G108498, see Figure 08-416, regardless of cylinder assembly used.

1шт.

12

1978061C1

PISTON ROD

ROD ASSEMBLY piston, 1-3/4" (44 mm) diameter, P/N 1971702C2 cylinder, Includes: Ref. 13

1шт.

This rod assembly is interchangable with P/N G108498, see Figure 08-416, regardless of cylinder assembly used.

1шт.

13

1542668C1

BUSHING,40.19mm ID x 56.68mm OD x 24mm L

P/N 1976961C1 or P/N 1978061C1 piston rod, Replaces: P/N G108526

2шт.

14

G110110

PISTON

cylinder

1шт.

15

G102286

SEAL,Locking, 85.47mm ID x 90.19mm OD x 6.96mm Thk

- piston

1шт.

Part of Seal Kit P/N G110621

1шт.

16

G100710

RING,Square, 5.28mm Thk x 75.31mm ID

backup, piston seal

1шт.

Part of Seal Kit P/N G110621

1шт.

17

G100711

SEAL,Split, 82.55mm ID x 88.9mm OD x 9.52mm Thk

Piston

1шт.

Part of Seal Kit P/N G110621

1шт.

18

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

hex head, 3/4"-16 NF x 2-1/2", grade 8

1шт.

19

S94643

WASHER,19.43mm ID x 38.1mm OD x 6.35mm Thk

flat, 3/4", hardened

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8" NPT

1шт.

21

D127833

SEAL

rod and tube eye, used only with P/N G108526 bushing, P/N 1542668C1 bushing does not need this seal, see Ref. 3 and 13

4шт.

G110621

SEAL PACKAGE

KIT seal, Includes: Ref. 5 thru 10 and 15 thru 17

1шт.
