Запчасти Case 580K (08-416) - BACKHOE SWING CYLINDERS, 3-1/4 INCH INSIDE DIAMETER (08) - HYDRAULICS

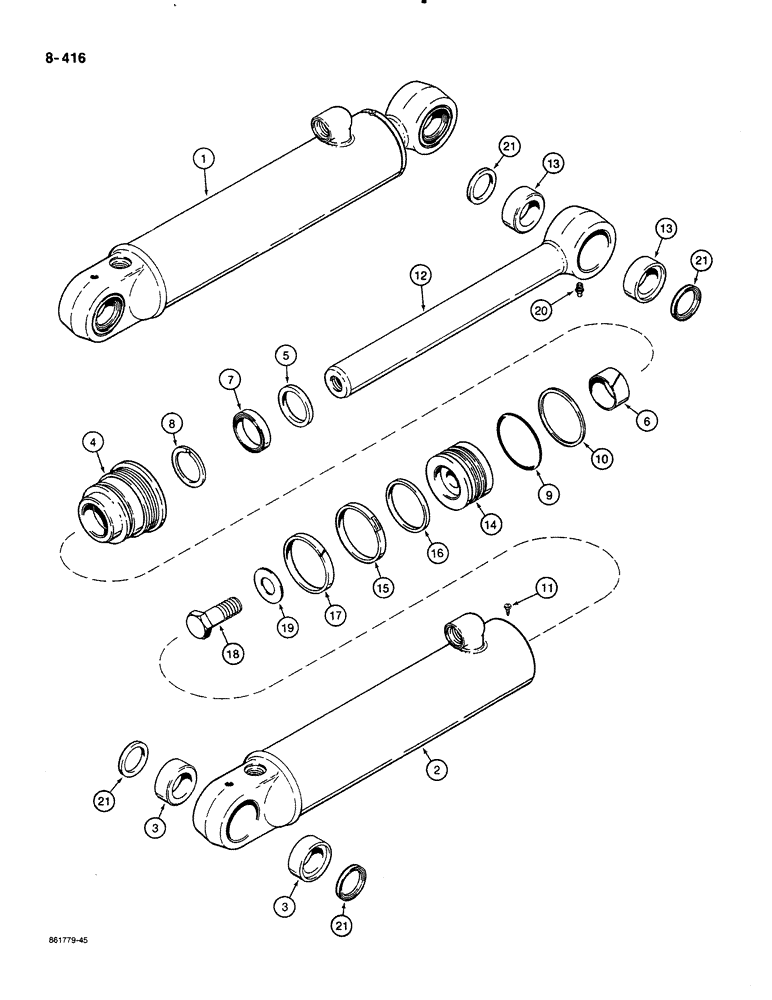

Схема запчастей Case 580K - (08-416) - BACKHOE SWING CYLINDERS, 3-1/4 INCH INSIDE DIAMETER (08) - HYDRAULICS
21
6
21
13
9
19
3
15
21
17
10
3
12
2
4
16
1
13
5
14
18
8
11
20
7
21

Артикул

Название

Примечание

Количество

1

G108608

CYLINDER ASSY.

CYLINDER ASSEMBLY, 3-1/4" (83 mm) ID x 12" (305 mm) stroke, swing, if used, Includes: Ref. 2 thru 21

2шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes

1шт.

P/N G108608 cylinder assembly must be used with P/N D141726 restrictors at swing section ports in P/N G109583, G109584, G109979, or G109980 backhoe control valves, see Figure 08-316

1шт.

P/N G108608 cylinder assembly is now supplied without seal P/N D127833, see Ref. 21

1шт.

2

G108668

TUBE,87.07 mm ID x 89.76 mm OD x 525.8 mm L

ASSEMBLY cylinder, Includes: Ref. 3

1шт.

3

1542668C1

BUSHING,40.19mm ID x 56.68mm OD x 24mm L

tube, Replaces: P/N G108526

2шт.

G110623

GLAND

ASSEMBLY cylinder, Includes: Ref. 4 thru 10

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND cylinder

1шт.

5

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER piston rod

1шт.

Part of Seal Kit P/N G110053

1шт.

6

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

center

1шт.

Part of Seal Kit P/N G110053

1шт.

7

G107922

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

U-cup, with O-ring, piston rod, wide

1шт.

Part of Seal Kit P/N G110053

1шт.

8

G109094

SEAL,44.07mm ID x 57.33mm OD x 3.05mm Thk

buffer, grooved, piston rod, narrow

1шт.

Part of Seal Kit P/N G110053

1шт.

9

T11032

O-RING,0.139" Thk x 2.859" ID, -233, Cl 5, 75 Duro

gland

1шт.

Part of Seal Kit P/N G110053

1шт.

10

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

backup, gland O-ring

1шт.

Part of Seal Kit P/N G110053

1шт.

11

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW hex head, slotted, self-tapping, No. 8-32 NC x 3/8", plated

1шт.

12

G108498

ROD ASSY.

ROD ASSEMBLY piston, 1-3/4" (44 mm) diameter, Includes: Ref. 13

1шт.

P/N G108498 rod assy. is interchangable with P/N 1976961C1 rod assy. or P/N 1978061C1 rod assy. regardless of the cylinder used.

1шт.

13

1542668C1

BUSHING,40.19mm ID x 56.68mm OD x 24mm L

piston rod, Replaces: P/N G108526

2шт.

14

G108184

PISTON

cylinder

1шт.

15

G102287

SEAL,Locking, 79.07mm ID x 83.8mm OD x 6.96mm Thk

piston

1шт.

Part of Seal Kit P/N G110053

1шт.

16

S109444

RING,Square, 5.28mm Thk x 68.96mm ID

backup, piston seal

1шт.

Part of Seal Kit P/N G110053

1шт.

17

S109445

RING,82.55mm OD, Ext

wear, piston

1шт.

Part of Seal Kit P/N G110053

1шт.

18

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

hex head, 3/4"-16 NF x 2-1/2", grade 8

1шт.

19

S94643

WASHER,19.43mm ID x 38.1mm OD x 6.35mm Thk

flat, 3/4", hardened

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8" NPT

1шт.

21

D127833

SEAL

rod and tube eye, used only with P/N G108526 bushing, P/N 1542668C1 bushing does not need this seal, see Ref. 3 and 13

4шт.

D103172

KIT

cylinder service, Includes: 3-1/2" diameter swing cylinder P/N 1971702C2 , P/N D142394 restrictors, and P/N 8-75380 instruction sheet for replacing 3-1/4" diameter swing cylinder with 3-1/2" diameter swing cylinder

1шт.

G110053

GASKET KIT

KIT seal, Includes: Ref. 5, 6, 7, 8, 9, 10, 15, 16 and 17

1шт.
