Запчасти Case 580K (08-414) - BACKHOE STABILIZER CYLINDERS (08) - HYDRAULICS

1

G110510

CYLINDER BLOCK

CYLINDER ASSEMBLY, 4-1/4" (108 mm) ID x 21-3/4" (553 mm) stroke, stabilizer, right-hand, with rod bushings, no longer available, for service order P/N G110672 cylinder, Includes: Ref. 2 thru 20

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes

1шт.

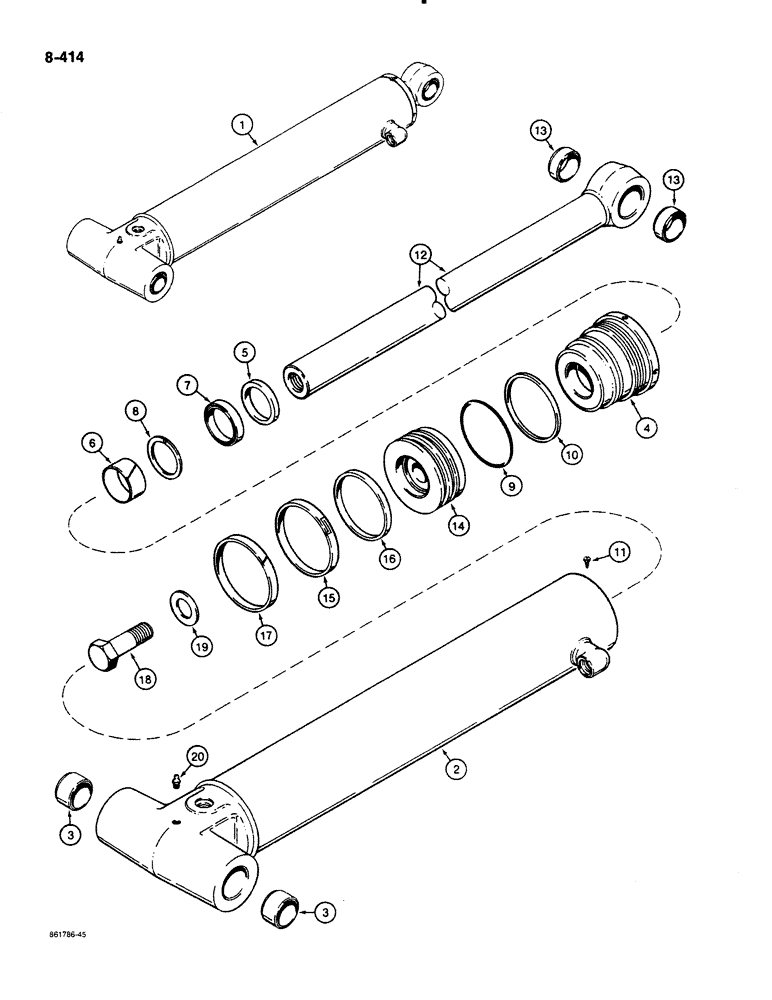

The RH cylinder is shown in the illustration. The LH cylinder has the elbow on the opposite side.

1шт.

1

G110511

CYLINDER BLOCK

CYLINDER ASSEMBLY, 4-1/4" (108 mm) ID x 21-3/4" (553 mm) stroke, stabilizer, left-hand, with rod bushings, no longer available, for service order P/N G110673 cylinder, Includes: Ref. 2 thru 20

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes

1шт.

The RH cylinder is shown in the illustration. The LH cylinder has the elbow on the opposite side.

1шт.

1

G110672

CYLINDER ASSY.

CYLINDER ASSEMBLY, 4-1/4" (108 mm) ID x 21-3/4" (553 mm) stroke, stabalizer, right-hand, without rod bushings, Includes: Ref. 2 thru 20

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes

1шт.

The RH cylinder is shown in the illustration. The LH cylinder has the elbow on the opposite side.

1шт.

1

G110673

CYLINDER ASSY.

CYLINDER ASSEMBLY, 4-1/4" (108 mm) ID x 21-3/4" (553 mm) stroke, stabalizer, left-hand, without rod bushings, Includes: Ref. 2 thru 20

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes

1шт.

The RH cylinder is shown in the illustration. The LH cylinder has the elbow on the opposite side.

1шт.

2

G110512

HYD TUBE,107.82 mm ID x 780 mm L

TUBE ASSEMBLY cylinder, right-hand, Includes: Ref. 3

1шт.

The RH cylinder is shown in the illustration. The LH cylinder has the elbow on the opposite side.

1шт.

2

G110513

HYD TUBE,107.82 mm ID x 780 mm L

TUBE ASSEMBLY cylinder, left-hand, Includes: Ref. 3

1шт.

The RH cylinder is shown in the illustration. The LH cylinder has the elbow on the opposite side.

1шт.

3

D30932

BUSHING,38.33mm ID x 47.63mm OD x 28.45mm L

P/N G110512 or G110513 tube

2шт.

G110520

GLAND

ASSEMBLY cylinder, Includes: Ref. 4 thru 10

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND cylinder

1шт.

5

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod

1шт.

Part of Seal Kit P/N G110537

1шт.

6

G101533

WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk

BUSHING center

1шт.

Part of Seal Kit P/N G110537

1шт.

7

G107923

SEAL,50.77mm ID x 63.63mm OD x 10.69mm Thk

U-cup, with O-ring, piston rod, wide

1шт.

Part of Seal Kit P/N G110537

1шт.

8

G107997

SEAL,50.37mm ID x 63.68mm OD x 3.05mm Thk

buffer, grooved, piston rod, narrow

1шт.

Part of Seal Kit P/N G110537

1шт.

9

A27817

O-RING,0.139" Thk x 3.859" ID, -241, Cl 5, 75 Duro

gland

1шт.

Part of Seal Kit P/N G110537

1шт.

10

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

Gland O-Ring

1шт.

Part of Seal Kit P/N G110537

1шт.

11

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW hex head, slotted, self-tapping, No. 8-32 NC x 3/8", plated

1шт.

12

G110516

ROD

ASSEMBLY piston, 2" (51 mm) diameter, with bushings, P/N G110510 or G110511 cylinder, Includes: Ref. 13

1шт.

13

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

P/N G110516 rod only

2шт.

13a

1978060C1

PISTON ROD

ROD piston, 2" (51 mm) diameter, without bushings, P/N G110672 or G110673 cylinder, not shown

1шт.

14

G110522

PISTON

cylinder

1шт.

15

G110531

SEALING RING,Locking, 109.32mm ID x 104.6mm OD x 6.96mm Thk

piston

1шт.

Part of Seal Kit P/N G110537

1шт.

16

G110529

RING

backup, piston seal

1шт.

Part of Seal Kit P/N G110537

1шт.

17

G110530

RING,108mm OD, Ext

wear, piston

1шт.

Part of Seal Kit P/N G110537

1шт.

18

28-1648

BOLT,Hex, 1" - 14 x 3", Gr 8

hex head, 1"-14 National Super Fine x 3", grade 8

1шт.

19

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

flat, 1", hardened

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8" NPT

1шт.

G110537

KIT

seal, Includes: Ref. 5 thru 10 and 15 thru 17

1шт.
