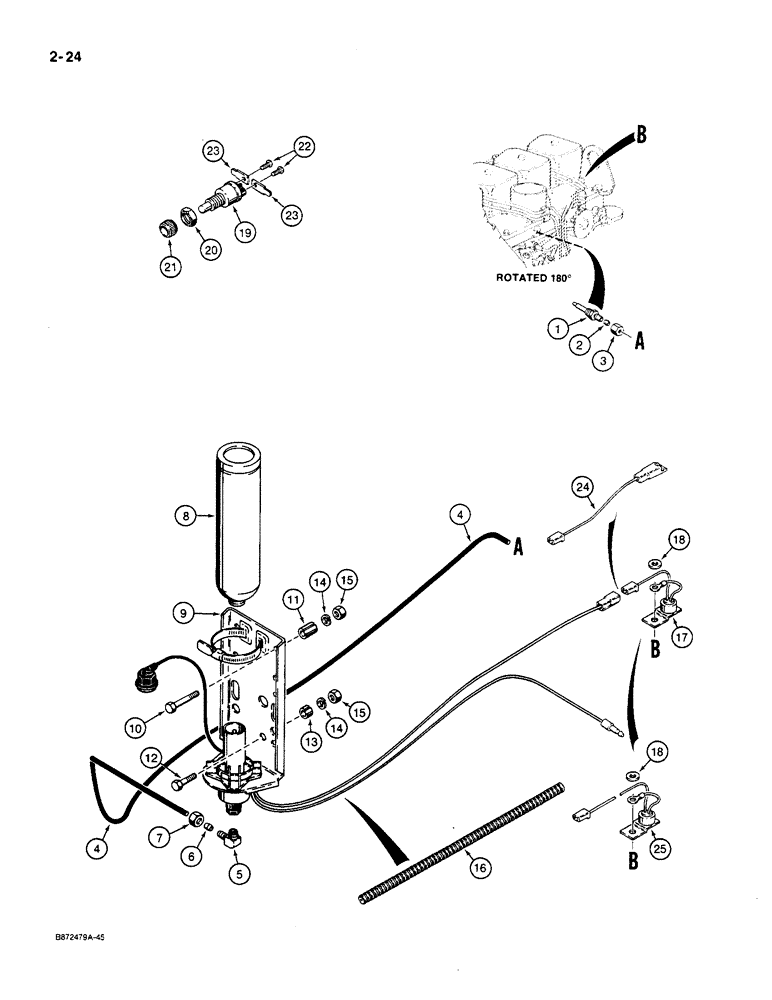

Запчасти Case 580K (02-024) - COLD START SYSTEM (02) - ENGINE

A172352

NOZZLE CAP

NOZZLE ASSEMBLY cold start injector, .008 dual orifice nozzle, used with P/N A172116 valve, no longer available, order P/N A172900 nozzle, Includes: Ref. 1 thru 3

1шт.

1

NSS

NOT SOLD SEPARAT

BODY nozzle

1шт.

2

222-650

SLEEVE,1/8" Tube, Comp

Brass 1/8" Tube, Comp

1шт.

3

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

brass, 1/8" 5/16"-24, 45º Fl, Comp

1шт.

A172900

NOZZLE CAP

NOZZLE ASSEMBLY cold start injector, .011 dual orifice nozzle, component parts not serviced separately, used with P/N A172116 valve, not shown

1шт.

4

D145367

TUBE

valve to injector nozzle, 30" (762 mm) long

1шт.

222-615

ELBOW,90 Degree, 5/16"-24 x 1/8" NPT, Comp

Incl. Ref. 5 thru 7 90º, 5/16"-24 x 1/8" NPT, Comp

1шт.

5

NSS

NOT SOLD SEPARAT

BODY elbow

1шт.

6

222-650

SLEEVE,1/8" Tube, Comp

Brass 1/8" Tube, Comp

1шт.

7

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

brass, 1/8" 5/16"-24, 45º Fl, Comp

1шт.

8

A171940

CYLINDER

starting fluid

1шт.

9

A172116

VALVE

ASSEMBLY, 3 cc starting fluid injection, component parts not serviced separately, used with P/N A172352 or P/N A172900 nozzle

1шт.

10

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

11

D76210

SPACER

valve mounting, upper

2шт.

12

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

13

R46103

SPACER

valve mounting, lower

1шт.

14

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

15

9635082

NUT,5/16" - 18, Gr 5

3шт.

16

D128402

PLASTIC-RUBBER TUBE

SLEEVE wire guard, 15" (380 mm) long

1шт.

17

A171943

IGNITION SWITCH

SWITCH temperature, 4" long wire, circuit breaking, uses existing intake manifold mounting hardware, used with Ref. 24 jumper wire on some models, no longer used, order P/N A189369 switch, Ref. 25

1шт.

This switch has two 4" leads.

1шт.

18

195-521

WASHER,5/16", SAE

flat, plated, 5/16"

1шт.

L72776

SWITCH

ASSEMBLY cold start, must also order (2) P/N L59682, blade terminals, Ref. 23, Includes: Ref. 19 thru 22

1шт.

19

NSS

NOT SOLD SEPARAT

SWITCH cold start

1шт.

20

H275784

JAM NUT

hex, jam, special

1шт.

21

D73741

NUT

hex, special

1шт.

22

174-93

SCREW,Sl Rnd Hd, #10 - 32 x 1/4"

machine, round head slotted, No. 10-32 NF x 1/4"

2шт.

23

L59682

TERMINAL CONNECTOR

TERMINAL blade, used with P/N L72776 switch

2шт.

24

NSS

NOT SOLD SEPARAT

WIRE jumper, valve to Ref. 17 switch, not available for service, order P/N A189369 switch, Ref. 25

1шт.

25

A189369

SWITCH temperature, 11" long wire, circuit breaking, uses existing intake manifold mounting hardware, replaces Ref. 17 switch and Ref. 24 jumper wire on some models

1шт.

Replaced by P/N A187923. This switch has two 4" leads and one 11" wire.

1шт.
