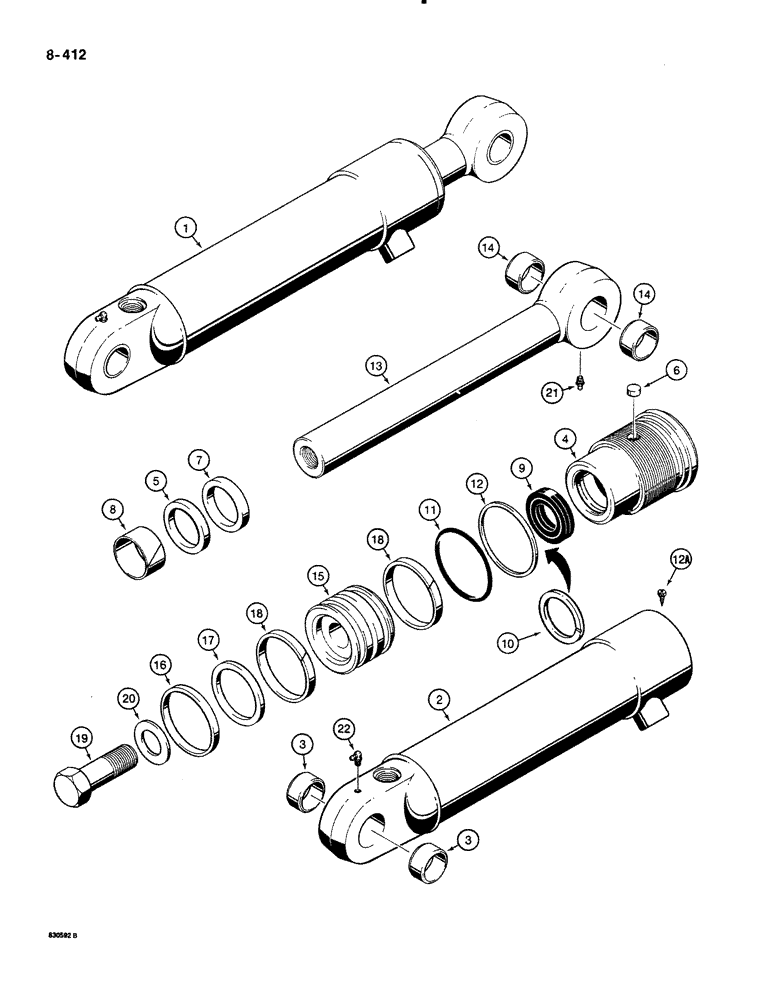

Запчасти Case 580K (08-412) - LOADER CLAM CYLINDERS (08) - HYDRAULICS

1

G101190

CYLINDER ASSY.

CYLINDER ASSEMBLY, 3" (76 mm) ID x 9" (229 mm) stroke, clam, right-hand, Includes: Ref. 2 thru 22

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes

1шт.

1

87454017R

REMAN-HYD CYLINDER

580K LOADER BACKHOE (NORTH AMERICA), CYLINDER ASSEMBLY, 3" (76 mm) ID x 9" (229 mm) stroke, clam, right-hand, Reman for New PN G101190

1шт.

1

87454017C

CORE-HYD CYLINDER

Return Number

1шт.

1

G101191

CYLINDER ASSY.

CYLINDER ASSEMBLY, 3" (76 mm) ID x 9" (229 mm) stroke, clam, left-hand, Includes: Ref. 2 thru 22

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes

1шт.

2

G32305

HYD TUBE,435.1 mm L

TUBE ASSEMBLY right-hand cylinder, Includes: Ref. 3

1шт.

2

G32304

HYD TUBE

TUBE ASSEMBLY left-hand cylinder, Includes: Ref. 3

1шт.

3

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

P/N G32305 or G32304 tube

2шт.

G104240

GLAND

ASSEMBLY cylinder, Includes: Ref. 4 thru 12

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND cylinder

1шт.

5

G34600

RING

retaining, bushing

1шт.

6

G102569

PLUG

nylon, thread locking, gland, if used

1шт.

7

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER piston rod, outer

1шт.

Part of Seal Kit P/N G109460

1шт.

8

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

center

1шт.

Part of Seal Kit P/N G109460

1шт.

9

G107922

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

U-cup, with O-ring, piston rod, wide

1шт.

Part of Seal Kit P/N G109460

1шт.

9

G100777

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

U-cup, piston rod, service option for severe heat or cold

1шт.

10

G109094

SEAL,44.07mm ID x 57.33mm OD x 3.05mm Thk

buffer, grooved, piston rod, narrow

1шт.

Part of Seal Kit P/N G109460

1шт.

11

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

gland

1шт.

Part of Seal Kit P/N G109460

1шт.

12

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

backup, gland O-ring

1шт.

Part of Seal Kit P/N G109460

1шт.

12a

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW hex head, slotted, self-tapping, No. 8-32 NC x 3/8", plated, if used

1шт.

13

G33800

PISTON ROD

ROD ASSEMBLY piston, 1-3/4" (44 mm) diameter, Includes: Ref. 14

1шт.

14

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

piston rod

2шт.

15

G100704

PISTON

cylinder

1шт.

16

G102288

SEAL,Locking, 71.71mm ID x 76.43mm OD x 6.96mm Thk

- Piston

1шт.

Part of Seal Kit P/N G109460

1шт.

17

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

RING backup, piston seal

1шт.

Part of Seal Kit P/N G109460

1шт.

18

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

RING wear, piston

2шт.

Part of Seal Kit P/N G109460

1шт.

19

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

1шт.

20

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

flat, 1", hardened

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8" NPT

1шт.

22

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, , Special short 90º, 1/8" NPT x .84" lg

1шт.

G109460

GASKET KIT

KIT seal, Includes: Ref. 7, 8, 9 P/N G107922, 10, 11, 12, 16, 17 and 18

1шт.
