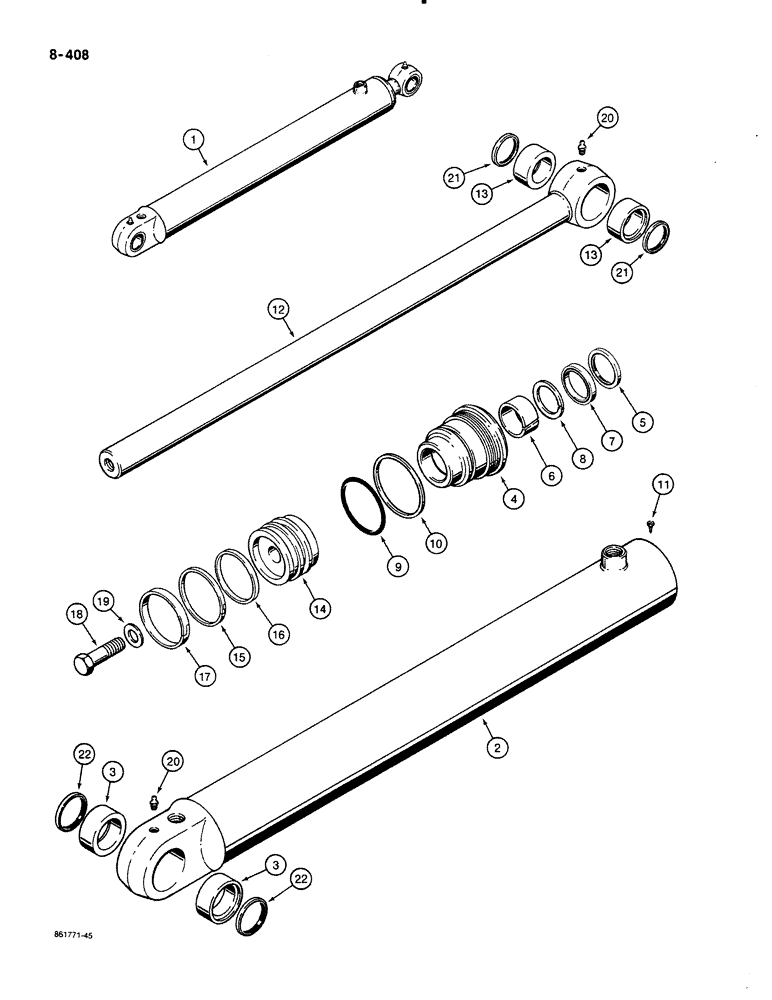

Запчасти Case 580K (08-408) - LOADER LIFT CYLINDERS (08) - HYDRAULICS

1

G108478

CYLINDER ASSY.

CYLINDER ASSEMBLY, 3-1/4" (82 mm) ID x 29" (740 mm) stroke, lift, right-hand and left-hand, if used, Includes: Ref. 2 thru 22

2шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes

1шт.

1

1980317C1

CYLINDER

ASSEMBLY, 3-1/4" (82 mm) ID x 29" (740 mm) stroke, lift, right-hand and left-hand, if used, Includes: Ref. 2 thru 22

2шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes

1шт.

2

G108502

TUBE,87.07 mm ID x 89.76 mm OD x 950.4 mm L

ASSEMBLY, P/N G108478 cylinder, Includes: Ref. 3

1шт.

2

1980318C1

HYD TUBE,82.6 mm OD

TUBE ASSEMBLY, P/N 1980317C1 cylinder, Includes: Ref. 3

1шт.

3

G108698

BUSHING

P/N G108502 or 1980318C1 tube

2шт.

G110623

GLAND

ASSEMBLY, P/N G108478 cylinder, Includes: Ref. 4 thru 10

1шт.

1980322C1

GLAND

ASSEMBLY, P/N 1980317C1 cylinder, Includes: Ref. 4 thru 10

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND cylinder

1шт.

5

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER piston rod, outer

1шт.

Part of Seal Kit P/N G110053

1шт.

6

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

center

1шт.

Part of Seal Kit P/N G110053

1шт.

7

G107922

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

U-cup, with O-ring, piston rod, wide

1шт.

Part of Seal Kit P/N G110053

1шт.

8

G109094

SEAL,44.07mm ID x 57.33mm OD x 3.05mm Thk

buffer, grooved, piston rod, narrow

1шт.

Part of Seal Kit P/N G110053

1шт.

9

T11032

O-RING,0.139" Thk x 2.859" ID, -233, Cl 5, 75 Duro

gland

1шт.

Part of Seal Kit P/N G110053

1шт.

10

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

backup, gland O-ring

1шт.

Part of Seal Kit P/N G110053

1шт.

11

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW hex head, slotted, self-tapping, No. 8-32 NC x 3/8", plated

1шт.

12

G108505

ROD ASSY.

ROD ASSEMBLY piston, 1-3/4" (44 mm) diameter, P/N G108478 cylinder, Includes: Ref. 13

1шт.

12

1978055C1

PISTON ROD

ROD ASSEMBLY piston, 1-3/4" (44 mm) diameter, P/N 1980317C1 cylinder, Includes: Ref. 13

1шт.

13

G108526

BUSHING

P/N G108505 or 1978055C1 piston rod

2шт.

14

G108184

PISTON

cylinder

1шт.

15

G102287

SEAL,Locking, 79.07mm ID x 83.8mm OD x 6.96mm Thk

piston

1шт.

Part of Seal Kit P/N G110053

1шт.

16

S109444

RING,Square, 5.28mm Thk x 68.96mm ID

backup, piston seal

1шт.

Part of Seal Kit P/N G110053

1шт.

17

S109445

RING,82.55mm OD, Ext

wear, piston

1шт.

Part of Seal Kit P/N G110053

1шт.

18

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

hex head, 3/4"-16 NF x 2-1/2", grade 8

1шт.

19

S94643

WASHER,19.43mm ID x 38.1mm OD x 6.35mm Thk

flat, 3/4", hardened

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8" NPT

2шт.

21

D127833

SEAL

rod eye

2шт.

22

D127866

SEAL

tube eye

2шт.

G110053

GASKET KIT

KIT seal, Includes: Ref. 5 thru 10 and 15 thru 17

1шт.
