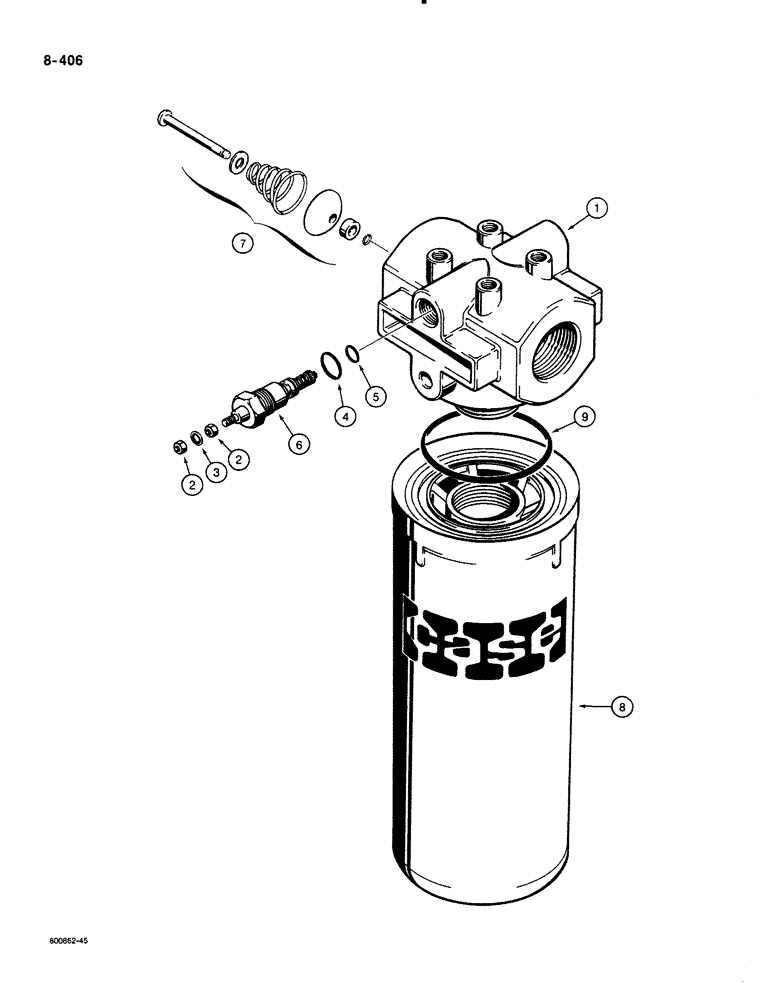

Запчасти Case 580K (08-406) - HYDRAULIC OIL FILTER (08) - HYDRAULICS

D132933

FILTER ASSY

FILTER ASSEMBLY hydraulic oil, Includes: Ref. 1 thru 9

1шт.

1

NSS

NOT SOLD SEPARAT

HEAD filter, Includes: P/N N6755 and N6941 and Ref. 2 thru 6

1шт.

N6755

PRESSURE SWITCH

ASSEMBLY restriction, electric, Includes: P/N N6941 and Ref. 2 thru 6

1шт.

N6941

KIT

restriction indicator repair, Includes: Ref. 2 thru 5

1шт.

2

129-667

NUT,#10-32, LH

2шт.

3

193-99

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, Int Tooth, #10

1шт.

5

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

-011, 70 Duro, .301" ID x .070" Thk - Inner

1шт.

6

NSS

NOT SOLD SEPARAT

INDICATOR restriction, electric

1шт.

7

NSS

NOT SOLD SEPARAT

VALVE bypass

1шт.

N9025

HYDRAULIC OIL FILTER

ELEMENT ASSEMBLY filter, Includes: Ref. 8 and 9

1шт.

8

NSS

NOT SOLD SEPARAT

ELEMENT filter

1шт.

9

238-5230

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

Filter to head -230, 70 Duro, 2.484" ID x .139" Thk

1шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
