Запчасти Case 580K (08-402) - THREE-POINT HITCH CONTROL VALVE, LIFT SECTION (08) - HYDRAULICS

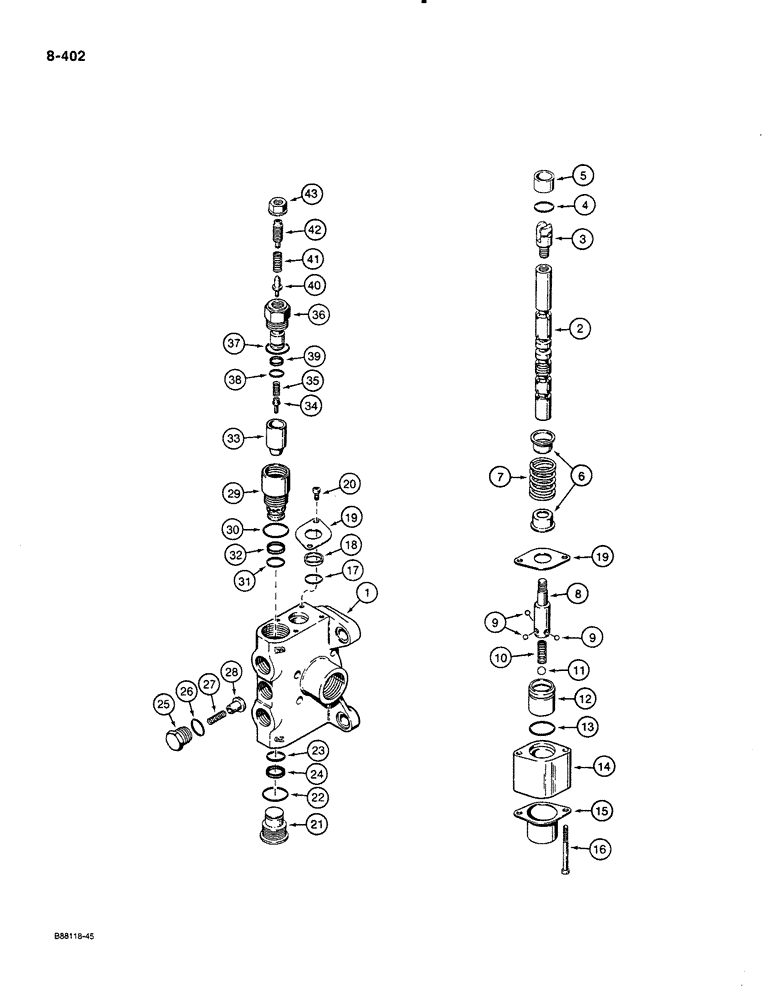

Схема запчастей Case 580K - (08-402) - THREE-POINT HITCH CONTROL VALVE, LIFT SECTION (08) - HYDRAULICS
8
11
19
30
39
5
15
43
41
12
7
42
16
40
25
24
28
38
9
13
22
26
2
6
21
17
3
20
9
29
18
34
1
33
32
10
35
19
23
4
36
37
14
27
31

Артикул

Название

Примечание

Количество

N14269

VALVE

SECTION ASSEMBLY lift, Includes: Ref. 1 thru 43

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING lift section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL lift section

1шт.

3

N14264

EYE

spool

1шт.

N14270

KIT

spool, cap end, Includes: Ref. 4 thru 16

1шт.

4

N14657

SEAL

bushing, spool eye end

1шт.

5

NSS

NOT SOLD SEPARAT

BUSHING spool

1шт.

6

NSS

NOT SOLD SEPARAT

SEAT spring

2шт.

7

NSS

NOT SOLD SEPARAT

SPRING centering, spool

1шт.

8

NSS

NOT SOLD SEPARAT

RETAINER detent, spool cap end

1шт.

9

N14654

BALL

small

3шт.

10

N14656

SPRING

detent, small

1шт.

11

N14655

BALL

large

1шт.

12

NSS

NOT SOLD SEPARAT

SLEEVE detent

1шт.

13

N14658

SEAL

detent housing

1шт.

14

NSS

NOT SOLD SEPARAT

HOUSING detent, spool cap end

1шт.

15

NSS

NOT SOLD SEPARAT

CAP valve spool

1шт.

16

864-5055

HEX SOC SCREW,M5 x 55mm, Cl 8.8

BOLT, 5 mm x 55 mm, cap retaining

2шт.

N14288

KIT

wiper, spool, upper, only one O-ring and wiper used in this application, Includes: Ref. 17 and 18

1шт.

17

NSS

NOT SOLD SEPARAT

O-RING spool

2шт.

18

NSS

NOT SOLD SEPARAT

WIPER spool

2шт.

19

N14659

RETAINER

plate, spool wiper

2шт.

20

864-5008

BOLT, 5 mm x 8 mm, retainer plate

2шт.

N14271

PLUG

ASSEMBLY valve, lower, Includes: Ref. 21 thru 24

1шт.

21

NSS

NOT SOLD SEPARAT

PLUG valve

1шт.

22

R15366

O-RING,7/8" ID x 1" OD x 1/16"

plug, outer, large

1шт.

23

D26265

O-RING,1.78mm Thk x 14mm ID, 70 Duro

plug, small

1шт.

24

A34493

RING,16.33mm ID x 19.02mm OD x 1.25mm Thk

backup, small O-ring

1шт.

N14266

VALVE

ASSEMBLY load check, valve section, Includes: Ref. 25 thru 28

1шт.

25

NSS

NOT SOLD SEPARAT

PLUG load check valve

1шт.

26

N14653

O-RING

plug

1шт.

27

N14652

SPRING

load check valve

1шт.

28

NSS

NOT SOLD SEPARAT

POPPET load check

1шт.

N14267

VALVE

ASSEMBLY main relief, section, Includes: Ref. 29 thru 43

1шт.

29

NSS

NOT SOLD SEPARAT

HOUSING main relief valve

1шт.

30

R15366

O-RING,7/8" ID x 1" OD x 1/16"

housing, outer, large

1шт.

31

D26265

O-RING,1.78mm Thk x 14mm ID, 70 Duro

housing, small

1шт.

32

A34493

RING,16.33mm ID x 19.02mm OD x 1.25mm Thk

backup, small O-ring

1шт.

33

NSS

NOT SOLD SEPARAT

PISTON relief valve

1шт.

34

NSS

NOT SOLD SEPARAT

PLUNGER piston

1шт.

35

NSS

NOT SOLD SEPARAT

SPRING plunger, small

1шт.

36

NSS

NOT SOLD SEPARAT

BODY relief valve

1шт.

37

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

body, outer, large

1шт.

38

A30825

O-RING,0.364" ID x 0.504" OD x 0.07"

body, small

1шт.

39

L31330

BACK-UP RING,109mm ID x 128.81mm OD x 12mm Thk

backup, small O-ring

1шт.

40

NSS

NOT SOLD SEPARAT

POPPET relief valve

1шт.

41

NSS

NOT SOLD SEPARAT

SPRING poppet

1шт.

42

NSS

NOT SOLD SEPARAT

SCREW adjusting

1шт.

43

NSS

NOT SOLD SEPARAT

NUT lock, special

1шт.

Выбрано товаров: 49
