Запчасти Case 580K (08-396) - THREE-POINT HITCH CONTROL VALVE (08) - HYDRAULICS

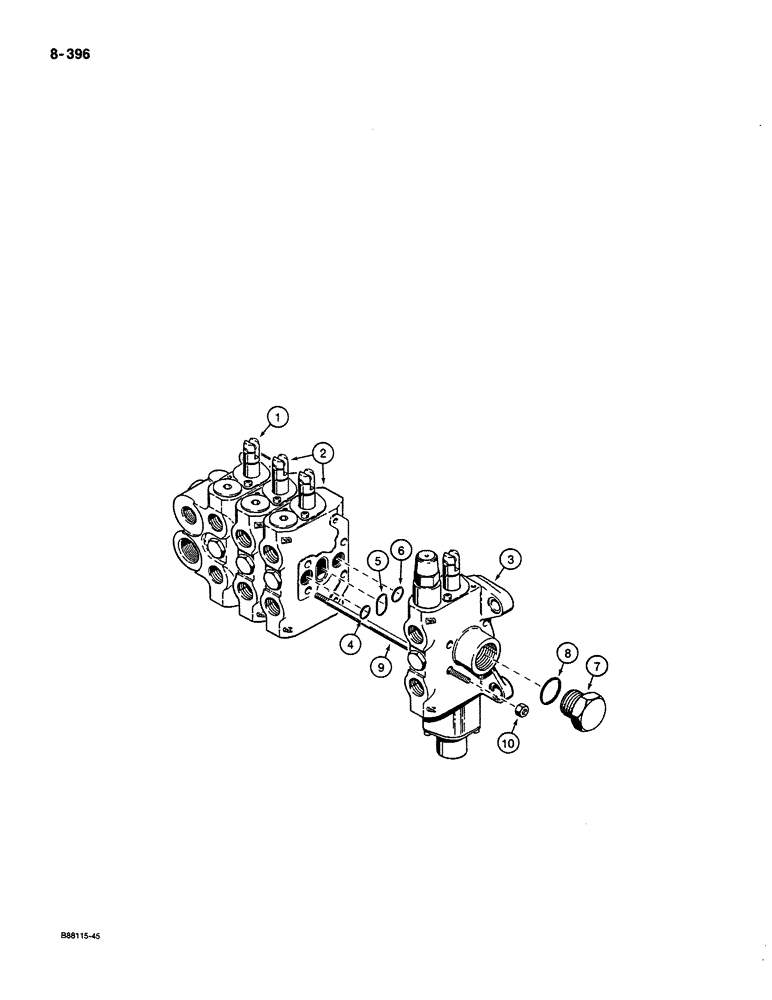

Схема запчастей Case 580K - (08-396) - THREE-POINT HITCH CONTROL VALVE (08) - HYDRAULICS
4
2
6
10
5
3
7
1
9
8

Артикул

Название

Примечание

Количество

D141297

VALVE

ASSEMBLY three-point hitch control, four spool, Includes: Ref. 1 thru 10

1шт.

1

N14263

VALVE

SECTION ASSEMBLY inlet-outlet and implement, see Figure 08-398

1шт.

2

N14268

KNIFE SECTION

SECTION ASSEMBLY tilt and pitch, see Figure 08-400

2шт.

3

N14269

VALVE

SECTION ASSEMBLY lift, see Figure 08-402

1шт.

N14286

SEAL KIT

KIT seal, Includes: Ref. 4 thru 6

3шт.

4

NSS

NOT SOLD SEPARAT

O-RING between sections, port side of control valve

1шт.

5

NSS

NOT SOLD SEPARAT

O-RING between sections, center

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING between sections, non-port side of control valve

1шт.

7

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Lift section, Includes: Ref. 8 Hex Hd, 1 1/16"-12 ORB

1шт.

8

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Plug

1шт.

N14287

KIT

tie bolt, Includes: Ref. 9 and 10

1шт.

9

NSS

NOT SOLD SEPARAT

BOLT tie, special, to internal threaded bolt holes in inlet-outlet section

4шт.

10

NSS

NOT SOLD SEPARAT

NUT self-locking, 6 mm-1.25, tie bolt

4шт.

Выбрано товаров: 13
