Запчасти Case 580K (08-394) - BOOM LOCK SOLENOID VALVE (08) - HYDRAULICS

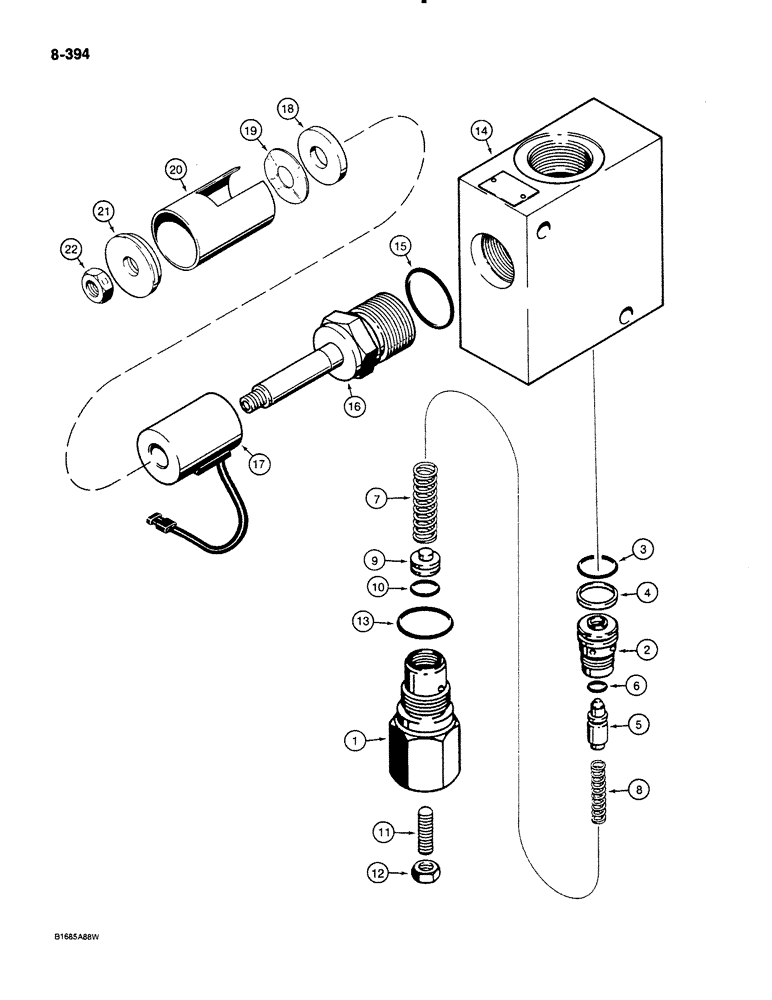

Схема запчастей Case 580K - (08-394) - BOOM LOCK SOLENOID VALVE (08) - HYDRAULICS
19
15
18
11
22
20
3
14
4
21
9
17
6
7
16
2
5
13
1
8
10
12

Артикул

Название

Примечание

Количество

D139523

HYDRAULIC VALVE

VALVE ASSEMBLY solenoid, backhoe boom lock, no longer available, order P/N D144935 valve, Includes: P/N G110467 and Ref. 1 thru 22

1шт.

D144935

VALVE

ASSEMBLY solenoid, backhoe boom lock, component parts not available at time of printing

1шт.

G110467

VALVE, PRESSURE RELI

RELIEF ASSEMBLY circuit, solenoid, used in production, order P/N G110077 kit for service, Includes: Ref. 1 thru 13

1шт.

The pressure setting of the repair circuit relief valve is not preset for this application. Adjust the setting according to the instructions sent with the repair valve

1шт.

1

NSS

NOT SOLD SEPARAT

BODY relief valve

1шт.

2

NSS

NOT SOLD SEPARAT

SEAT relief valve

1шт.

3

G107675

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

relief valve seat

1шт.

4

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

backup, seat O-ring

1шт.

5

NSS

NOT SOLD SEPARAT

POPPET relief valve

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING poppet

1шт.

7

NSS

NOT SOLD SEPARAT

SPRING relief, outer

1шт.

8

NSS

NOT SOLD SEPARAT

SPRING relief, inner

1шт.

9

NSS

NOT SOLD SEPARAT

PISTON relief valve

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING piston

1шт.

11

178-890

SET SCREW,Hex Soc, 5/16"-24 x 1"

SCREW set, hex socket headless, 5/16"-24 NF x 1", oval point, plated

1шт.

12

86637933

JAM NUT,5/16" - 24, Gr 5

1шт.

13

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Body

1шт.

14

NSS

NOT SOLD SEPARAT

BODY solenoid

1шт.

15

L33129

O-RING,1.109" ID x 1.387" OD x 0.139"

solenoid body

1шт.

16

NSS

NOT SOLD SEPARAT

SOLENOID relief

1шт.

N14634

COIL

ASSEMBLY solenoid, component parts not serviced separately, Includes: Ref. 17 thru 21

1шт.

17

NSS

NOT SOLD SEPARAT

COIL solenoid

1шт.

18

NSS

NOT SOLD SEPARAT

SPACER coil

1шт.

19

NSS

NOT SOLD SEPARAT

WASHER spring

1шт.

20

NSS

NOT SOLD SEPARAT

COVER coil

1шт.

21

NSS

NOT SOLD SEPARAT

CAP coil end

1шт.

22

131-813

NUT,3/8"-24

NUT hex, self-locking, NF 3/8"-24

1шт.

G110077

KIT

service for P/N G110467 circuit relief valve, Includes: P/N G110078 circuit relief valve assembly, Ref. 1-13, and an instruction sheet

1шт.

The pressure setting of the repair circuit relief valve is not preset for this application. Adjust the setting according to the instructions sent with the repair valve

1шт.
