Запчасти Case 580K (08-390) - BACKHOE SWING SEQUENCE VALVE (08) - HYDRAULICS

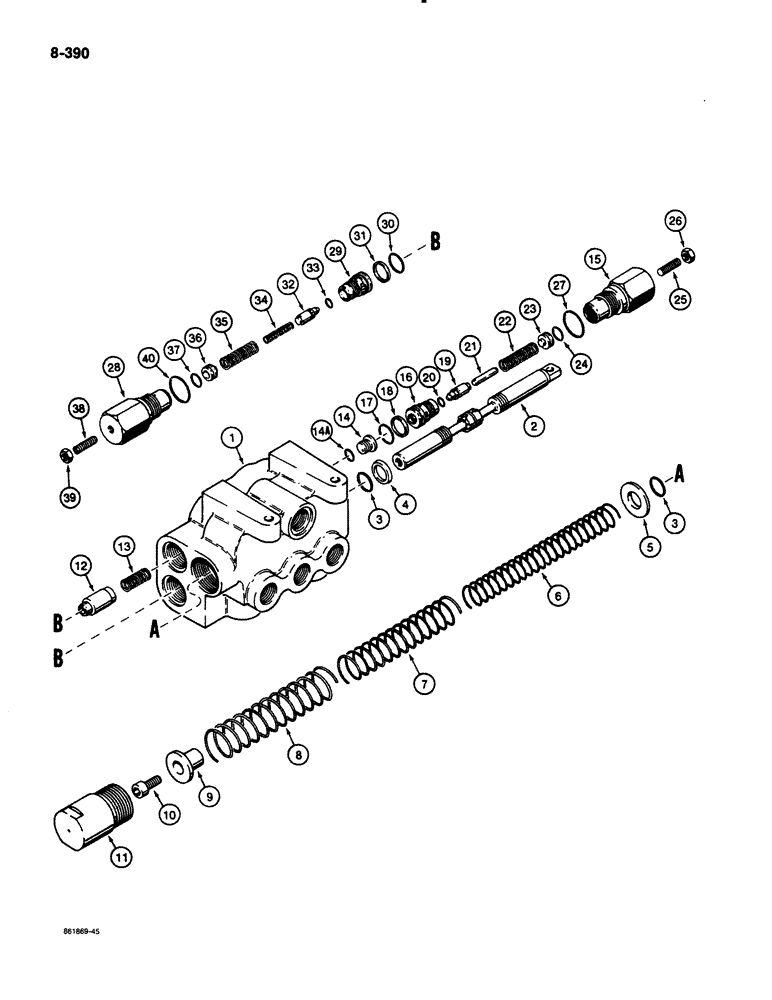

Схема запчастей Case 580K - (08-390) - BACKHOE SWING SEQUENCE VALVE (08) - HYDRAULICS
33
14
11
22
23
35
34
1
36
25
29
32
12
18
4
9
38
15
19
14a
40
16
2
26
6
30
28
10
13
3
31
7
37
39
27
20
17
24
21
8
3
5

Артикул

Название

Примечание

Количество

G109665

VALVE

ASSEMBLY backhoe swing sequence, no longer available, order P/N 1980310C1, Includes: Ref. 1 thru 40

1шт.

1980310C1

LOCK VALVE

VALVE ASSEMBLY backhoe swing sequence, Includes: Ref. 1 thru 40

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING backhoe swing sequence valve

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL backhoe swing sequence valve

1шт.

3

G108461

O-RING

spool

2шт.

4

A32309

SEAL,18.8mm ID x 25.5mm OD x 3.1mm Thk

oil, spool

1шт.

5

G108896

O-RING

O-ring

1шт.

6

G108895

SPRING

inner

1шт.

7

G108892

SPRING

center

1шт.

8

G108891

SPRING

outer

1шт.

9

G108893

SEAT

spring

1шт.

10

61-612

HEX SOC SCREW,3/8"-16 x 3/4"

BOLT hex socket head, 3/8"-16 NC x 3/4"

1шт.

11

G108894

CAP

spool end

1шт.

12

G108017

SPOOL

shuttle, orifice

1шт.

13

G107174

SPRING

shuttle spool

1шт.

14

G108903

PLUG

orifice, Includes: Ref. 14A

1шт.

G109764

VALVE ASSEMBLY circuit relief, spool eye end, used in production, order P/N G109448 kit for service, Includes: Ref. 15 thru 27

1шт.

The pressure setting of the repair circuit relief valve is not preset for this application. Adjust the setting according to the instructions sent with the repair valve or according to the service manual.

1шт.

15

NSS

NOT SOLD SEPARAT

HOUSING circuit relief valve

1шт.

16

NSS

NOT SOLD SEPARAT

SEAT circuit relief valve

1шт.

17

G107675

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

circuit relief valve seat

1шт.

18

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

backup, seat O-ring

1шт.

19

NSS

NOT SOLD SEPARAT

POPPET circuit relief valve

1шт.

20

NSS

NOT SOLD SEPARAT

O-RING poppet

1шт.

21

NSS

NOT SOLD SEPARAT

PIN stop, relief

1шт.

22

NSS

NOT SOLD SEPARAT

SPRING circuit relief valve

1шт.

23

NSS

NOT SOLD SEPARAT

PISTON circuit relief valve

1шт.

24

NSS

NOT SOLD SEPARAT

O-RING piston

1шт.

25

178-890

SET SCREW,Hex Soc, 5/16"-24 x 1"

SCREW set, hex socket headless, 5/16"-24 NF x 1", oval point, plated

1шт.

26

86637933

JAM NUT,5/16" - 24, Gr 5

1шт.

27

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Housing

1шт.

G109448

KIT

service for P/N G109764 circuit relief valve, kit includes an instruction sheet and P/N G109446 circuit relief valve, Ref. 15-27, which is the same as P/N G109764 except with a different pressure setting

1шт.

The pressure setting of the repair circuit relief valve is not preset for this application. Adjust the setting according to the instructions sent with the repair valve or according to the service manual.

1шт.

G110543

VALVE, PRESSURE RELI

VALVE ASSEMBLY circuit relief, 3620 psi, spool capped end, P/N G109665 valve, used in production, order P/N G110077 kit for service, Includes: Ref. 28 thru 40

2шт.

The pressure setting of the repair circuit relief valve is not preset for this application. Adjust the setting according to the instructions sent with the repair valve or according to the service manual.

1шт.

G110467

VALVE, PRESSURE RELI

VALVE ASSEMBLY circuit relief, 4400 psi, spool capped end, P/N 1980310C1 valve, used in production, order P/N G110077 kit for service, Includes: Ref. 28 thru 40

2шт.

The pressure setting of the repair circuit relief valve is not preset for this application. Adjust the setting according to the instructions sent with the repair valve or according to the service manual.

1шт.

28

NSS

NOT SOLD SEPARAT

HOUSING circuit relief valve

1шт.

29

NSS

NOT SOLD SEPARAT

SEAT circuit relief valve

1шт.

30

G107675

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

circuit relief valve seat

1шт.

31

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

backup, seat O-ring

1шт.

32

NSS

NOT SOLD SEPARAT

POPPET circuit relief valve

1шт.

33

NSS

NOT SOLD SEPARAT

O-RING poppet

1шт.

34

NSS

NOT SOLD SEPARAT

SPRING relief, inner

1шт.

35

NSS

NOT SOLD SEPARAT

SPRING relief, outer

1шт.

36

NSS

NOT SOLD SEPARAT

PISTON circuit relief valve

1шт.

37

NSS

NOT SOLD SEPARAT

O-RING piston

1шт.

38

178-890

SET SCREW,Hex Soc, 5/16"-24 x 1"

SCREW set, hex socket headless, 5/16"-24 NF x 1", oval point, plated

1шт.

39

86637933

JAM NUT,5/16" - 24, Gr 5

1шт.

40

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Housing

1шт.

G110077

KIT

service for P/N G110543 circuit relief valve, kit includes an instruction sheet and P/N G110078 circuit relief valve, Ref. 28-40 which is the same as P/N G110543 except with a different pressure setting

1шт.

The pressure setting of the repair circuit relief valve is not preset for this application. Adjust the setting according to the instructions sent with the repair valve or according to the service manual.

1шт.

14a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Plug

1шт.

Выбрано товаров: 53
