Запчасти Case 580K (08-388) - BACKHOE CONTROL VALVE, DIPPER EXTENSION SECTION (08) - HYDRAULICS

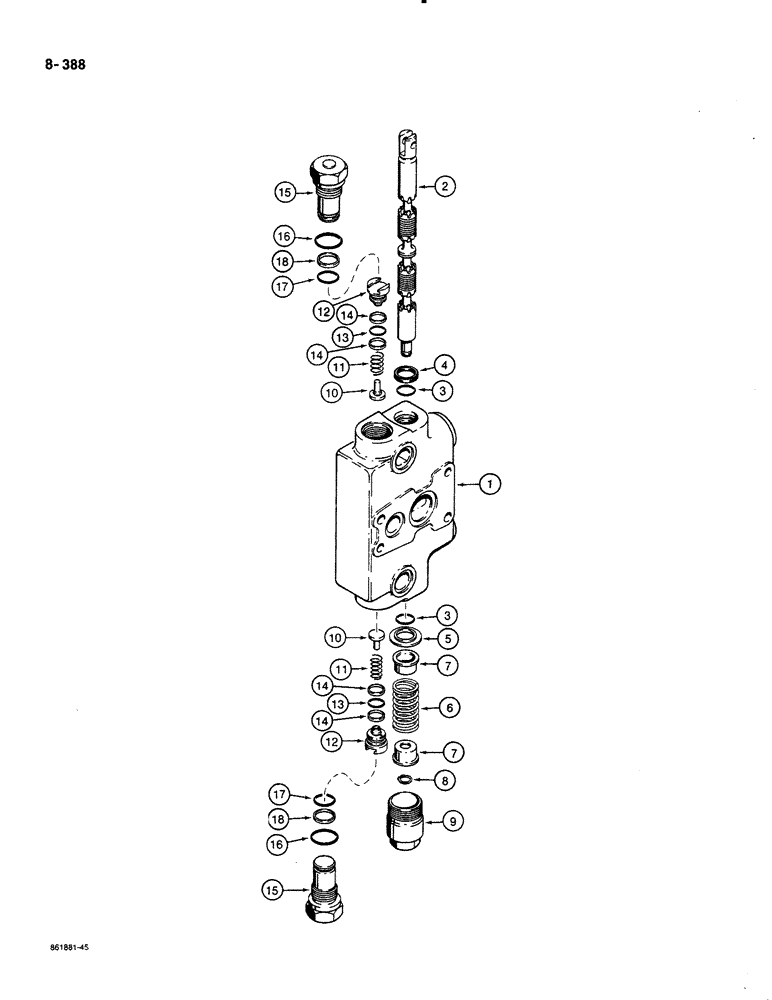

Схема запчастей Case 580K - (08-388) - BACKHOE CONTROL VALVE, DIPPER EXTENSION SECTION (08) - HYDRAULICS
18
1
15
17
7
8
13
16
10
13
14
11
3
2
4
10
12
14
6
17
15
18
11
7
16
14
14
3
12
9
5

Артикул

Название

Примечание

Количество

G109968

VALVE

SECTION ASSEMBLY dipper extension, Includes: Ref. 1 thru 18

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING dipper extension section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL dipper extension section

1шт.

3

G108461

O-RING

spool

2шт.

4

A32309

SEAL,18.8mm ID x 25.5mm OD x 3.1mm Thk

oil, spool

1шт.

5

G102711

RETAINER COLLAR,19.3 mm ID x 32.97 mm OD

O-ring

1шт.

6

G108544

SPRING

centering, spool

1шт.

7

G33075

RETAINER,12.2mm ID, 27.9mm OD

SEAT centering spring

2шт.

8

G33077

SNAP RING,#47, Ext

Ring, Snap, , spool end #47, Ext

1шт.

9

G33080

CAP

spool end

1шт.

10

G33081

VALVE POPPET

POPPET load check valve

2шт.

11

G33573

SPRING

load check valve

2шт.

12

G104062

PLUG

load check valve

2шт.

13

G110020

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

plug

2шт.

14

G103862

BACK-UP RING,15.77mm ID x 18.67mm OD x 1.32mm Thk

backup, plug O-ring

4шт.

G33122

PLUG,ORB

ASSEMBLY relief, Includes: Ref. 15 thru 18

2шт.

15

NSS

NOT SOLD SEPARAT

PLUG relief

1шт.

16

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Plug

1шт.

17

G107675

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

plug, small

1шт.

18

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

backup, small O-ring

1шт.

Выбрано товаров: 20
