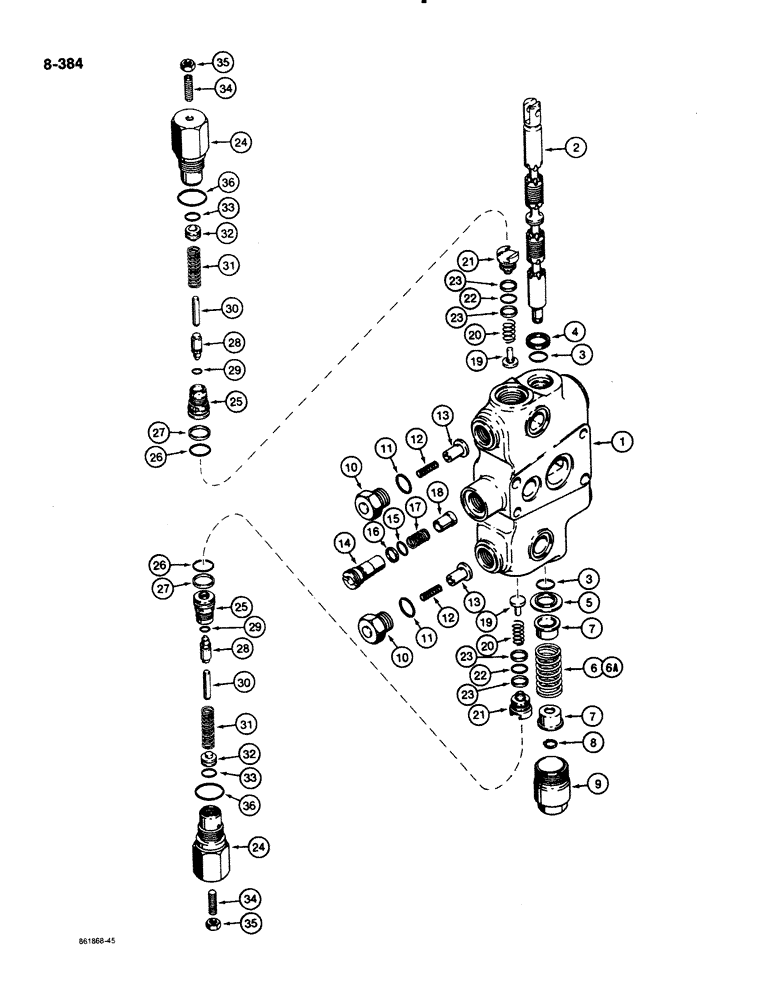

Запчасти Case 580K (08-384) - BACKHOE CONTROL VALVE, SWING SECTIONS (08) - HYDRAULICS

G109963

VALVE

SECTION ASSEMBLY swing, with heavy swing spring, Ref. 6, used in P/N G109979 or P/N G109980 foot swing control valves, with circuit relief valves and anticavitation, Includes: Ref. 1 thru 36

1шт.

G110710

VALVE

SECTION ASSEMBLY swing, with heavy swing spring, Ref. 6, used in P/N G110713 or P/N G110714 foot swing control valves, with circuit relief valves and anticavitation, Includes: Ref. 1 thru 36

1шт.

G109566

VALVE

SECTION ASSEMBLY swing, uses Ref. 6A spring, used in P/N G109583 or P/N GA09584 hand swing control valves, with circuit relief valves and anticavitation, Includes: Ref. 1 thru 36

1шт.

G110709

LOCK VALVE

SECTION ASSEMBLY swing, uses Ref. 6A spring, used in P/N G110711 or P/N G110712 hand swing control valves, with circuit relief valves and anticavitation, Includes: Ref. 1 thru 36

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING swing section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL swing section

1шт.

3

G108461

O-RING

spool

2шт.

4

A32309

SEAL,18.8mm ID x 25.5mm OD x 3.1mm Thk

oil, spool

1шт.

5

G102711

RETAINER COLLAR,19.3 mm ID x 32.97 mm OD

O-ring

1шт.

6

G34463

SPRING

centering, spool, black, 2-1/4" free length, used in P/N G109963 or P/N G110710 swing section

1шт.

6a

G108544

SPRING

centering, spool, green, 1-15/16" free length, used in P/N G109566 or P/N G110709 swing section

1шт.

7

G33075

RETAINER,12.2mm ID, 27.9mm OD

SEAT centering spring

2шт.

8

G33077

SNAP RING,#47, Ext

Ring, Snap, , spool end #47, Ext

1шт.

9

P0033080G

SCREW

spool end

1шт.

10

G34937

PLUG

anticavitation valve

2шт.

11

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

plug

2шт.

12

G34458

SPRING,Compression, 5.08mm OD x 27.56mm L

anticavitation valve

2шт.

13

G34938

VALVE POPPET,6.55mm ID x 17.48mm OD x 17.02mm L

POPPET anticavitation valve

2шт.

14

G109964

HOUSING

valve check

1шт.

15

A65918

O-RING,0.551" ID x 0.691" OD

valve check housing

1шт.

16

G108723

RING,14.34mm ID x 16.94mm OD x 1.32mm Thk

backup, O-ring

1шт.

17

G109971

SPRING

valve check

1шт.

18

1978068C1

VALVE POPPET

POPPET valve check

1шт.

19

G33081

VALVE POPPET

POPPET load check valve

2шт.

20

G33573

SPRING

load check valve

2шт.

21

G104062

PLUG

load check valve

2шт.

22

G110020

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

plug

2шт.

23

G103862

BACK-UP RING,15.77mm ID x 18.67mm OD x 1.32mm Thk

backup, plug O-ring

4шт.

G110253

VALVE, PRESSURE RELI

VALVE ASSEMBLY circuit relief, swing section, used in production, order P/N G109448 kit for service, Includes: Ref. 24 thru 36

2шт.

The pressure setting of the repair circuit relief valve is not preset for this application. Adjust the setting according to the instructions sent with the repair valve or according to the service manual.

1шт.

24

NSS

NOT SOLD SEPARAT

HOUSING circuit relief valve

1шт.

25

NSS

NOT SOLD SEPARAT

SEAT circuit relief valve

1шт.

26

G107675

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

circuit relief valve seat

1шт.

27

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

backup, seat O-ring

1шт.

28

NSS

NOT SOLD SEPARAT

POPPET circuit relief valve

1шт.

29

NSS

NOT SOLD SEPARAT

O-RING poppet

1шт.

30

NSS

NOT SOLD SEPARAT

PIN stop, relief

1шт.

31

NSS

NOT SOLD SEPARAT

SPRING circuit relief valve

1шт.

32

NSS

NOT SOLD SEPARAT

PISTON circuit relief valve

1шт.

33

NSS

NOT SOLD SEPARAT

O-RING piston

1шт.

34

178-890

SET SCREW,Hex Soc, 5/16"-24 x 1"

SCREW set, hex socket headless, 5/16"-24 NF x 1", oval point, plated

1шт.

35

86637933

JAM NUT,5/16" - 24, Gr 5

1шт.

36

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Housing

1шт.

G109448

KIT

service for P/N G110253 circuit relief valve, kit includes an instruction sheet and P/N G109446 circuit relief valve, Ref. 24-36, which is the same as P/N G110253 except with a different pressure setting

1шт.

The pressure setting of the repair circuit relief valve is not preset for this application. Adjust the setting according to the instructions sent with the repair valve or according to the service manual.

1шт.
