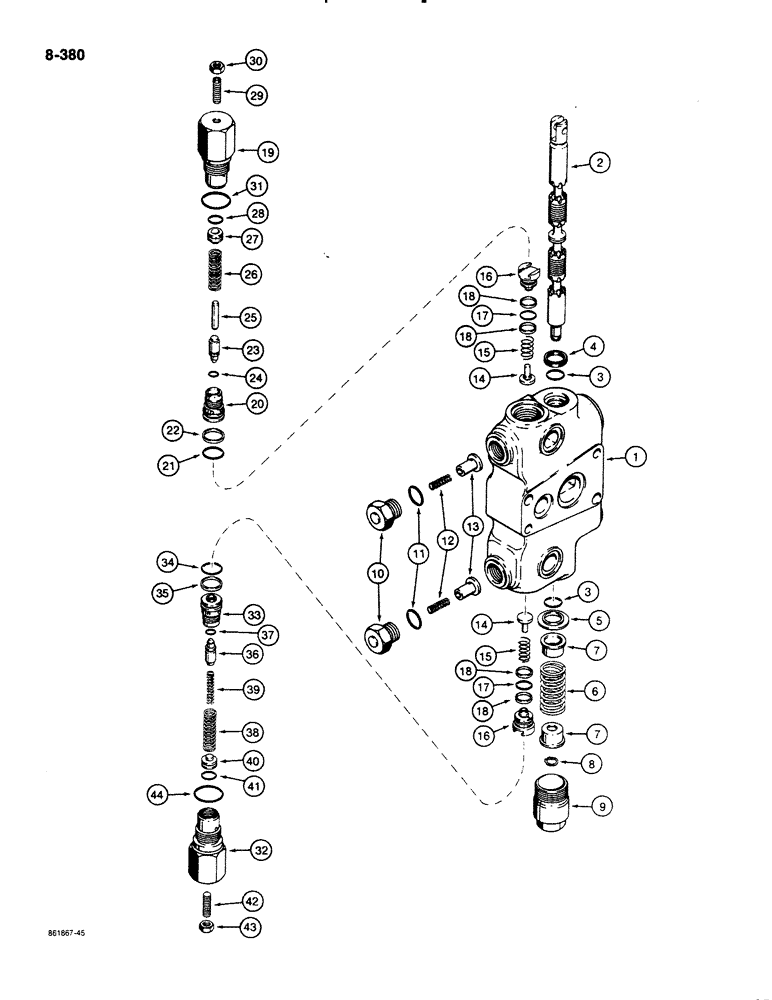

Запчасти Case 580K (08-380) - BACKHOE CONTROL VALVE, BOOM SECTION (08) - HYDRAULICS

G109571

VALVE

SECTION ASSEMBLY boom, with circuit relief valves and anticavitation, Includes: Ref. 1 thru 44

1шт.

In 1990 the bottom anti-cavitation was removed. No part number change per ECN C900909.

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING boom section

1шт.

2

1340866C1

SPOOL

boom section, service replacement

1шт.

3

G108461

O-RING

spool

2шт.

4

A32309

SEAL,18.8mm ID x 25.5mm OD x 3.1mm Thk

oil, spool

1шт.

5

G102711

RETAINER COLLAR,19.3 mm ID x 32.97 mm OD

O-ring

1шт.

6

G108544

SPRING

centering, spool

1шт.

7

G33075

RETAINER,12.2mm ID, 27.9mm OD

SEAT centering spring

2шт.

8

G33077

SNAP RING,#47, Ext

Ring, Snap, , spool end #47, Ext

1шт.

9

G33080

CAP

spool end

1шт.

10

G34937

PLUG

anticavitation valve

2шт.

11

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

plug

2шт.

12

G34458

SPRING,Compression, 5.08mm OD x 27.56mm L

anticavitation valve

2шт.

13

G34938

VALVE POPPET,6.55mm ID x 17.48mm OD x 17.02mm L

POPPET anticavitation valve

2шт.

14

G33081

VALVE POPPET

POPPET load check valve

2шт.

15

G33573

SPRING

load check valve

2шт.

16

G104062

PLUG

load check valve

2шт.

17

G110020

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

plug

2шт.

18

G103862

BACK-UP RING,15.77mm ID x 18.67mm OD x 1.32mm Thk

backup, plug O-ring

4шт.

G109443

VALVE

ASSEMBLY circuit relief, upper, boom section, used in production, order P/N G109448 kit for service, Includes: Ref. 19 thru 31

1шт.

The pressure setting of the repair circuit relief valve is not preset for this application. Adjust the setting according to the instructions sent with the repair valve or according to the service manual.

1шт.

19

NSS

NOT SOLD SEPARAT

HOUSING circuit relief valve

1шт.

20

NSS

NOT SOLD SEPARAT

SEAT circuit relief valve

1шт.

21

G107675

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

circuit relief valve seat

1шт.

22

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

backup, seat O-ring

1шт.

23

NSS

NOT SOLD SEPARAT

POPPET circuit relief valve

1шт.

24

NSS

NOT SOLD SEPARAT

O-RING poppet

1шт.

25

NSS

NOT SOLD SEPARAT

PIN stop, relief

1шт.

26

NSS

NOT SOLD SEPARAT

SPRING circuit relief valve

1шт.

27

NSS

NOT SOLD SEPARAT

PISTON circuit relief valve

1шт.

28

NSS

NOT SOLD SEPARAT

O-RING piston

1шт.

29

178-890

SET SCREW,Hex Soc, 5/16"-24 x 1"

SCREW set, hex socket headless, 5/16"-24 NF x 1", oval point, plated

1шт.

30

86637933

JAM NUT,5/16" - 24, Gr 5

1шт.

31

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Housing

1шт.

G109448

KIT

service for P/N G109443 circuit relief valve, kit includes an instruction sheet and P/N G109446 circuit relief valve, Ref. 19 thru 31 which is the same as P/N G109443 except with a different pressure setting

1шт.

The pressure setting of the repair circuit relief valve is not preset for this application. Adjust the setting according to the instructions sent with the repair valve or according to the service manual.

1шт.

G110467

VALVE, PRESSURE RELI

VALVE ASSEMBLY circuit relief, lower, boom section, used in production, order P/N G110077 kit for service, Includes: Ref. 32 thru 44

1шт.

The pressure setting of the repair circuit relief valve is not preset for this application. Adjust the setting according to the instructions sent with the repair valve or according to the service manual.

1шт.

32

NSS

NOT SOLD SEPARAT

HOUSING circuit relief valve

1шт.

33

NSS

NOT SOLD SEPARAT

SEAT circuit relief valve

1шт.

34

G107675

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

circuit relief valve seat

1шт.

35

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

backup, seat O-ring

1шт.

36

NSS

NOT SOLD SEPARAT

POPPET circuit relief valve

1шт.

37

NSS

NOT SOLD SEPARAT

O-RING poppet

1шт.

38

NSS

NOT SOLD SEPARAT

SPRING relief, outer

1шт.

39

NSS

NOT SOLD SEPARAT

SPRING relief, inner

1шт.

40

NSS

NOT SOLD SEPARAT

PISTON circuit relief valve

1шт.

41

NSS

NOT SOLD SEPARAT

O-RING piston

1шт.

42

178-890

SET SCREW,Hex Soc, 5/16"-24 x 1"

SCREW set, hex socket headless, 5/16"-24 NF x 1", oval point, plated

1шт.

43

86637933

JAM NUT,5/16" - 24, Gr 5

1шт.

44

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Housing

1шт.

G110077

KIT

service for P/N G110467 circuit relief valve, kit includes an instruction sheet and P/N G110078 circuit relief valve, Ref. 32 thru 44, which is the same as P/N G110467 except with a different pressure setting

1шт.

The pressure setting of the repair circuit relief valve is not preset for this application. Adjust the setting according to the instructions sent with the repair valve or according to the service manual.

1шт.
