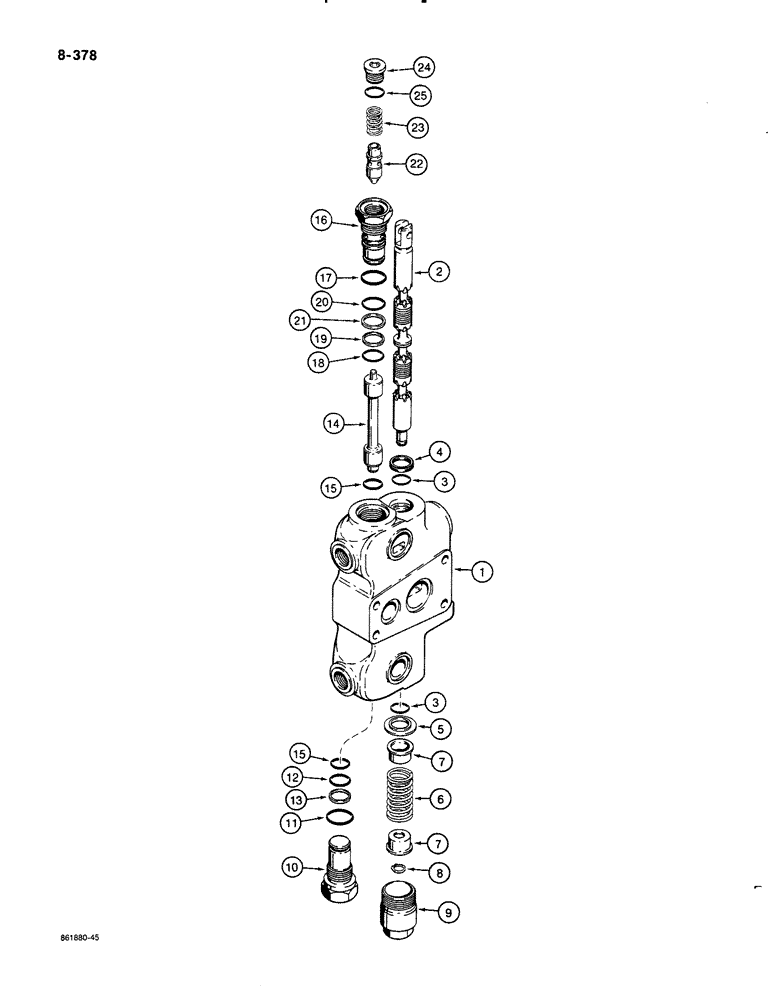

Запчасти Case 580K (08-378) - BACKHOE CONTROL VALVE, LEFT-HAND AND RIGHT-HAND STABILIZER SECTIONS (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
G109567
ELEMENT
SECTION ASSEMBLY left-hand and right-hand stabilizer, with lock check, Includes: Ref. 1 thru 25
2шт.
1
NSS
NOT SOLD SEPARAT
HOUSING left-hand and right-hand stabilizer sections
1шт.
2
NSS
NOT SOLD SEPARAT
SPOOL left-hand and right-hand stabilizer sections
1шт.
3
G108461
O-RING
spool
2шт.
4
A32309
SEAL,18.8mm ID x 25.5mm OD x 3.1mm Thk
oil, spool
1шт.
5
G102711
RETAINER COLLAR,19.3 mm ID x 32.97 mm OD
O-ring
1шт.
6
G34463
SPRING
centering, spool
1шт.
7
G33075
RETAINER,12.2mm ID, 27.9mm OD
SEAT centering spring
2шт.
8
G33077
SNAP RING,#47, Ext
Ring, Snap, , spool end #47, Ext
1шт.
9
P0033080G
SCREW
spool end
1шт.
G33122
PLUG,ORB
ASSEMBLY relief, Includes: Ref. 10 thru 13
1шт.
10
NSS
NOT SOLD SEPARAT
PLUG relief
1шт.
11
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
12-1, 90 Duro, .924 ID x .116" Thk, Plug
1шт.
12
G107675
O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro
plug, small
1шт.
13
G35540
BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk
backup, small O-ring
1шт.
14
G109626
SPOOL
shuttle, lock check
1шт.
15
G107675
O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro
shuttle spool
2шт.
G109627
PLUG
ASSEMBLY lock check, Includes: Ref. 16 thru 25
1шт.
16
NSS
NOT SOLD SEPARAT
SEAT lock check body
1шт.
17
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
12-1, 90 Duro, .924 ID x .116" Thk, Seat plug end
1шт.
18
G107675
O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro
small, seat lock check end
1шт.
19
G35540
BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk
backup, small O-ring
1шт.
20
D26435
O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro
seat, center
1шт.
21
G110468
RING
backup, center O-ring
1шт.
22
NSS
NOT SOLD SEPARAT
POPPET lock check
1шт.
23
G109630
SPRING
lock check
1шт.
24
71100209
PLUG,Hex Soc, 3/4"-16 ORB
Incl Ref 25 Hex Soc, 3/4"-16 ORB
1шт.
25
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
8-1, 90 Duro, .644" ID x .087" Thk, Plug
1шт.
Выбрано товаров: 28
