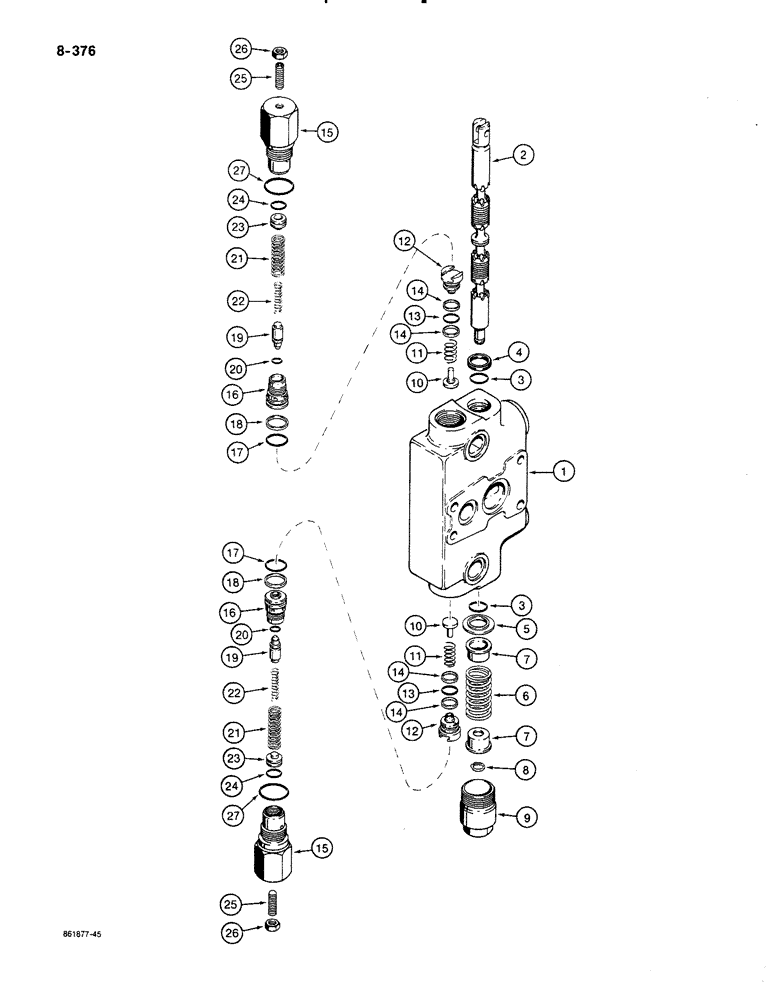

Запчасти Case 580K (08-376) - BACKHOE CONTROL VALVE, BUCKET AND DIPPER SECTIONS (08) - HYDRAULICS

G109570

VALVE

SECTION ASSEMBLY bucket and dipper, with circuit relief valves, Includes: Ref. 1 thru 27

2шт.

1

NSS

NOT SOLD SEPARAT

HOUSING bucket and dipper sections

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL bucket and dipper sections

1шт.

3

G108461

O-RING

spool

2шт.

4

A32309

SEAL,18.8mm ID x 25.5mm OD x 3.1mm Thk

oil, spool

1шт.

5

G102711

RETAINER COLLAR,19.3 mm ID x 32.97 mm OD

O-ring

1шт.

6

G108544

SPRING

centering, spool

1шт.

7

G33075

RETAINER,12.2mm ID, 27.9mm OD

SEAT centering spring

2шт.

8

G33077

SNAP RING,#47, Ext

Ring, Snap, , spool end #47, Ext

1шт.

9

G33080

CAP

spool end

1шт.

10

G33081

VALVE POPPET

POPPET load check valve

2шт.

11

G33573

SPRING

load check valve

2шт.

12

G104062

PLUG

load check valve

2шт.

13

G110020

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

plug

2шт.

14

G103862

BACK-UP RING,15.77mm ID x 18.67mm OD x 1.32mm Thk

backup, plug O-ring

4шт.

G109391

VALVE

ASSEMBLY circuit relief, bucket and dipper sections, used in production, order P/N G109449 kit for service, Includes: Ref. 15 thru 27

2шт.

The pressure setting of the repair circuit relief valve is not preset for this application. Adjust the setting according to the instructions sent with the repair valve or according to the service manual.

1шт.

15

NSS

NOT SOLD SEPARAT

HOUSING circuit relief valve

1шт.

16

NSS

NOT SOLD SEPARAT

SEAT circuit relief valve

1шт.

17

G107675

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

circuit relief valve seat

1шт.

18

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

backup, seat O-ring

1шт.

19

NSS

NOT SOLD SEPARAT

POPPET circuit relief valve

1шт.

20

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

-011, 70 Duro, .301" ID x .070" Thk - Poppet

1шт.

21

NSS

NOT SOLD SEPARAT

SPRING relief, outer

1шт.

22

NSS

NOT SOLD SEPARAT

SPRING relief, inner

1шт.

23

NSS

NOT SOLD SEPARAT

PISTON circuit relief valve

1шт.

24

G102845

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

piston

1шт.

25

178-890

SET SCREW,Hex Soc, 5/16"-24 x 1"

SCREW set, hex socket headless, 5/16"-24 NF x 1", oval point, plated

1шт.

26

86637933

JAM NUT,5/16" - 24, Gr 5

1шт.

27

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Housing

1шт.

G109449

KIT

service for P/N G109391 circuit relief valve, kit includes an instruction sheet and P/N G109447 circuit relief valve, Ref. 15 thru 27, which is the same as P/N G109391 except with a different pressure setting

1шт.

The pressure setting of the repair circuit relief valve is not preset for this application. Adjust the setting according to the instructions sent with the repair valve or according to the service manual.

1шт.
