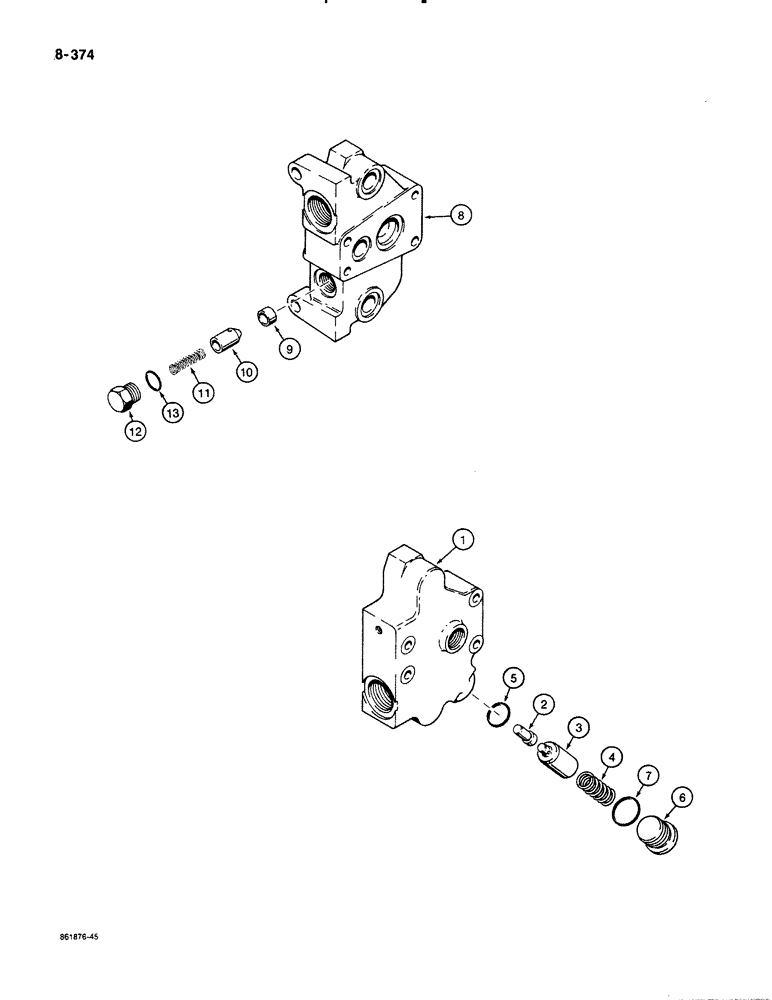

Запчасти Case 580K (08-374) - BACKHOE CONTROL VALVE, INLET AND OUTLET SECTIONS (08) - HYDRAULICS

G109759

VALVE

SECTION ASSEMBLY outlet, Includes: Ref. 1 thru 7

1шт.

1

G109760

HOUSING

MANIFOLD section body, outlet

1шт.

2

G108902

PISTON

regeneration sensing, outlet section

1шт.

3

G34586

SPOOL,22mm OD x 59.87mm L

regeneration, outlet section

1шт.

4

G33112

SPRING

regeneration spool, outlet section

1шт.

5

A35104

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

spool, internal, outlet section

1шт.

6

218-5213

PLUG,Hex Soc, 1 3/16"-12 ORB

spool, outlet section, Includes Ref 7 Hex Soc, 1 3/16"-12 ORB

1шт.

7

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

plug, outlet section

1шт.

G109719

ELEMENT

SECTION ASSEMBLY inlet, Includes: Ref. 8 thru 13

1шт.

8

G109718

HOUSING

MANIFOLD section body, inlet

1шт.

9

G33104

SEAT

check valve poppet, inlet section

1шт.

10

G33105

VALVE POPPET

POPPET check valve, inlet section

1шт.

11

G33106

SPRING

check valve, inlet section

1шт.

12

A39586

PLUG

check valve, inlet section

1шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

plug, inlet section

1шт.
