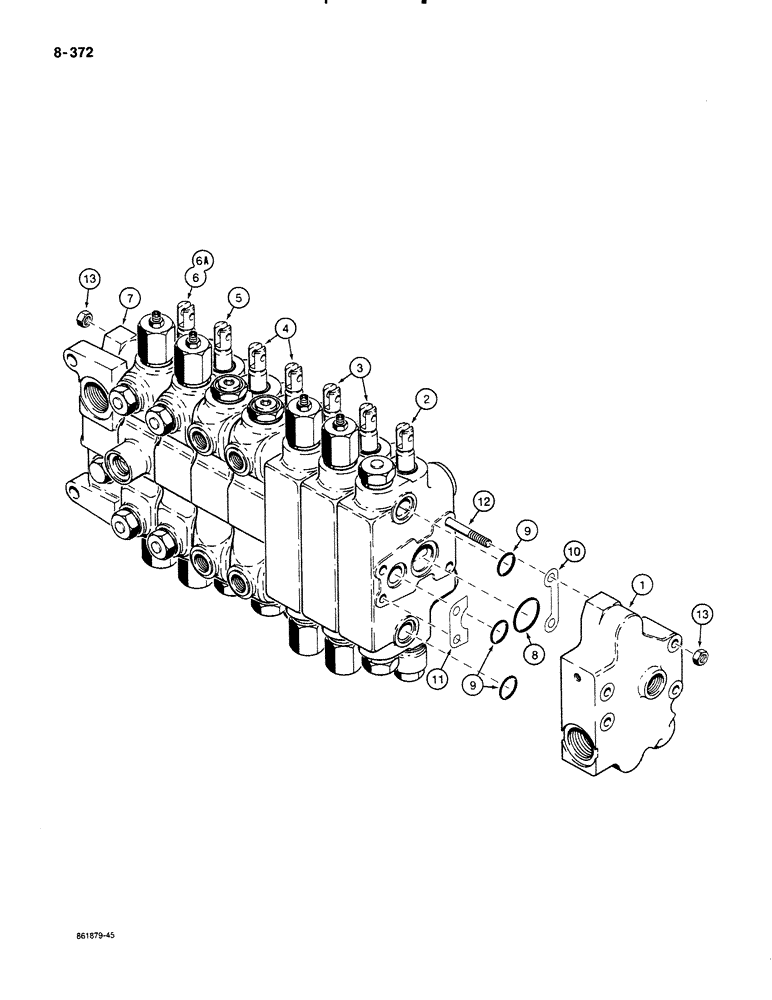

Запчасти Case 580K (08-372) - BACKHOE CONTROL VALVES, MODELS W/EXTENDABLE DIPPER OR AUX. HYD. FOR OPTIONAL REAR HYD. ATTACHMENTS (08) - HYDRAULICS

G109979

CONTROL VALVE

VALVE ASSEMBLY backhoe control, 7 spool, foot swing, no longer used, when replacing P/N G109979 valve, order P/N G110714 valve, (2) P/N D141726 restrictors in Figure 08-316 and 8-75260 instruction sheet, Includes: Ref. 1 thru 13

1шт.

P/N G109979 and P/N G109584 backhoe control valves are used with P/N G108608, 3-1/4" diameter swing cylinders. P/N D141726 restrictors must be used at the backhoe control valve swing section ports with the 3-1/4" diameter swing cylinders.

1шт.

G110714

VALVE

ASSEMBLY backhoe control, 7 spool, foot swing, Includes: Ref. 1 thru 13

1шт.

G109584

CONTROL VALVE

VALVE ASSEMBLY backhoe control, 7 spool, hand swing, no longer used, when replacing P/N G109584 valve, order P/N G110712 valve, (2) P/N D141726 restrictors in Figure 08-316 and 8-75260 instruction sheet, Includes: Ref. 1 thru 13

1шт.

P/N G109979 and P/N G109584 backhoe control valves are used with P/N G108608, 3-1/4" diameter swing cylinders. P/N D141726 restrictors must be used at the backhoe control valve swing section ports with the 3-1/4" diameter swing cylinders.

1шт.

G110712

DISTRIBUTOR

VALVE ASSEMBLY backhoe control, 7 spool, hand swing, Includes: Ref. 1 thru 13

1шт.

1

G109759

VALVE

SECTION ASSEMBLY outlet, see Figure 08-374

1шт.

2

G109968

VALVE

SECTION ASSEMBLY dipper extension, see Figure 08-388

1шт.

3

G109570

VALVE

SECTION ASSEMBLY bucket and dipper, see Figure 08-376

2шт.

4

G109567

ELEMENT

SECTION ASSEMBLY stabilizer, left-hand and right-hand, see Figure 08-378

2шт.

5

G109571

VALVE

SECTION ASSEMBLY boom, see Figure 08-380

1шт.

6

G109963

VALVE

SECTION ASSEMBLY swing, used with P/N G109979 control valve assembly, with heavy swing spring, see Figure 08-384

1шт.

6

G110710

VALVE

SECTION ASSEMBLY swing, used with P/N G110714 control valve assembly, with heavy swing spring, see Figure 08-384

1шт.

6a

G109566

VALVE

SECTION ASSEMBLY swing, used with P/N G109584 control valve assembly, see Figure 08-384

1шт.

6a

G110709

LOCK VALVE

SECTION ASSEMBLY swing, used with P/N G110712 control valve assembly, see Figure 08-384

1шт.

7

G109719

ELEMENT

SECTION ASSEMBLY inlet, see Figure 08-374

1шт.

8

G34001

O-RING,0.103" Thk x 1.424" ID, -127, Cl 6, 90 Duro

section ports, large

8шт.

9

G34000

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

section ports, small

24шт.

10

G107251

SHIM,10.31mm ID x 20.62mm OD x 0.06mm Thk

Section, Port side of control valve 0.051mm Thk

8шт.

11

G33965

SHIM,22.86mm OD x 0.06mm Thk

Section, Non-port side of control valve 0.051mm Thk

8шт.

12

G108899

ROD

tie, 3/8"-16 NC x 18-15/16"

4шт.

13

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

8шт.
