Запчасти Case 580K (08-370) - BACKHOE CONTROL VALVES, MODELS WITHOUT EXTENDABLE DIPPER (08) - HYDRAULICS

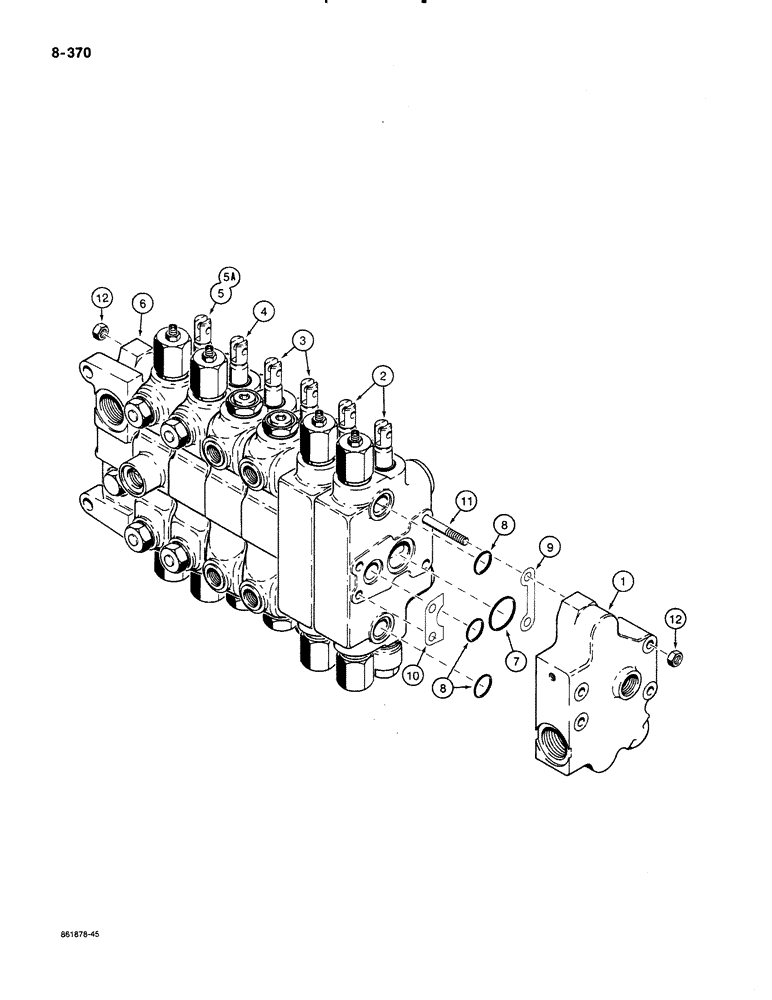

Схема запчастей Case 580K - (08-370) - BACKHOE CONTROL VALVES, MODELS WITHOUT EXTENDABLE DIPPER (08) - HYDRAULICS
2
8
3
12
12
5
1
11
5a
4
6
7
10
9
8

Артикул

Название

Примечание

Количество

G109980

CONTROL VALVE

VALVE ASSEMBLY backhoe control, 6 spool, foot swing, no longer used, when replacing P/N G109980 valve, order P/N G110713 valve, (2) P/N D141726 restrictors in Figure 08-316 and 8-75260 instruction sheet, Includes: Ref. 1 thru 12

1шт.

P/N G109980 and P/N G109583 backhoe control valves are used with P/N G108608, 3-1/4" diameter swing cylinders. P/N D141726 restrictors must be used at the backhoe control valve swing section ports with the 3-1/4" diameter swing cylinders.

1шт.

G110713

VALVE

ASSEMBLY backhoe control, 6 spool, foot swing, Includes: Ref. 1 thru 12

1шт.

G109583

CONTROL VALVE

VALVE ASSEMBLY backhoe control, 6 spool, hand swing, no longer used, when replacing P/N G109583 valve, order P/N G110711 valve, (2) P/N D141726 restrictors in Figure 08-316 and 8-75260 instruction sheet, Includes: Ref. 1 thru 12

1шт.

P/N G109980 and P/N G109583 backhoe control valves are used with P/N G108608, 3-1/4" diameter swing cylinders. P/N D141726 restrictors must be used at the backhoe control valve swing section ports with the 3-1/4" diameter swing cylinders.

1шт.

G110711

DISTRIBUTOR

VALVE ASSEMBLY backhoe control, 6 spool, hand swing, Includes: Ref. 1 thru 12

1шт.

1

G109759

VALVE

SECTION ASSEMBLY outlet, see Figure 08-374

1шт.

2

G109570

VALVE

SECTION ASSEMBLY bucket and dipper, see Figure 08-376

2шт.

3

G109567

ELEMENT

SECTION ASSEMBLY stabilizer, left-hand and right-hand, see Figure 08-378

2шт.

4

G109571

VALVE

SECTION ASSEMBLY boom, see Figure 08-380

1шт.

In 1990 the bottom anti-cavitation was removed. No part number change per ECN C900909.

1шт.

5

G109963

VALVE

SECTION ASSEMBLY swing, used with P/N G109980 control valve assembly, with heavy swing spring, see Figure 08-384

1шт.

5

G110710

VALVE

SECTION ASSEMBLY swing, used with P/N G110713 control valve assembly, with heavy swing spring, see Figure 08-384

1шт.

5a

G109566

VALVE

SECTION ASSEMBLY swing, used with P/N G109583 control valve assembly, see Figure 08-384

1шт.

5a

G110709

LOCK VALVE

SECTION ASSEMBLY swing, used with P/N G110711 control valve assembly, see Figure 08-384

1шт.

6

G109719

ELEMENT

SECTION ASSEMBLY inlet, see Figure 08-374

1шт.

7

G34001

O-RING,0.103" Thk x 1.424" ID, -127, Cl 6, 90 Duro

section ports, large

7шт.

8

G34000

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

section ports, small

21шт.

9

G107251

SHIM,10.31mm ID x 20.62mm OD x 0.06mm Thk

Section, Port side of control valve 0.051mm Thk

7шт.

10

G33965

SHIM,22.86mm OD x 0.06mm Thk

Section, Non-port side of control valve 0.051mm Thk

7шт.

11

G108900

STUD

tie, 3/8"-16 NC x 16-15/16"

4шт.

12

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

8шт.

Выбрано товаров: 22
