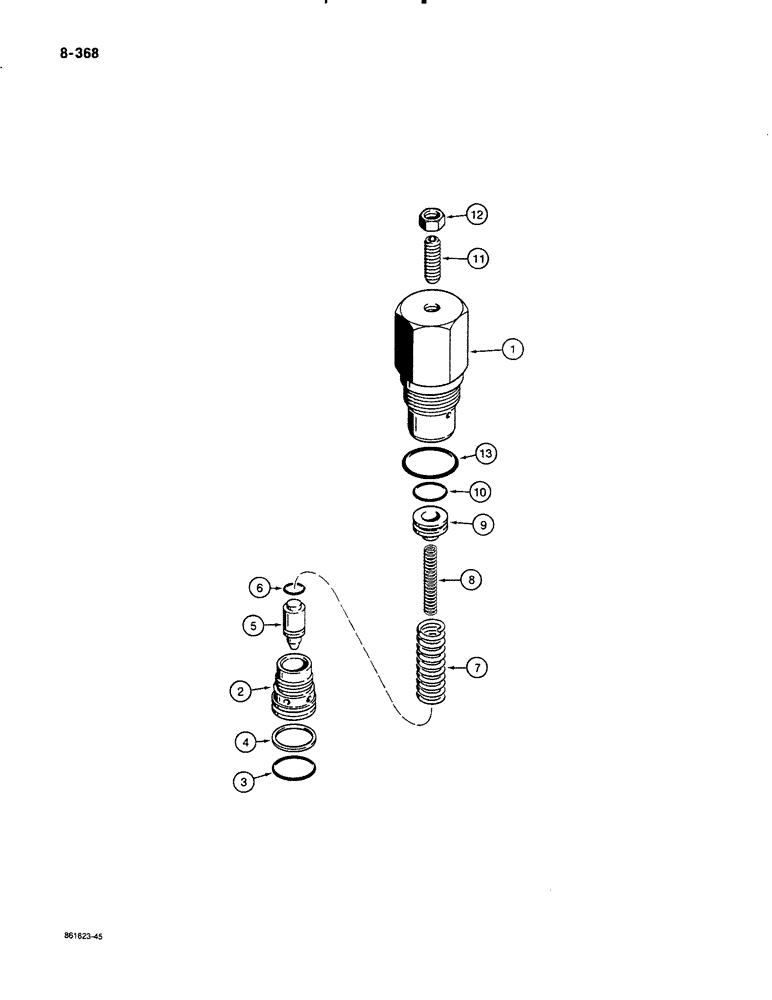

Запчасти Case 580K (08-368) - LOADER CONTROL VALVE, CIRCUIT RELIEF VALVE (08) - HYDRAULICS

G107786

VALVE, PRESSURE RELI

VALVE ASSEMBLY circuit relief, one piece cap, bucket section, used in production, order P/N G109449 kit for service, Includes: Ref. 1 thru 13

2шт.

The pressure setting of the repair circuit relief valve is not preset for this application. Adjust the setting according to the instructions sent with the repair valve or according to the service manual.

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING circuit relief valve

1шт.

2

NSS

NOT SOLD SEPARAT

SEAT circuit relief valve

1шт.

3

G107675

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

circuit relief valve seat

1шт.

4

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

backup, seat O-ring

1шт.

5

NSS

NOT SOLD SEPARAT

POPPET circuit relief valve

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING poppet

1шт.

7

NSS

NOT SOLD SEPARAT

SPRING relief, outer

1шт.

8

NSS

NOT SOLD SEPARAT

SPRING relief, inner

1шт.

9

NSS

NOT SOLD SEPARAT

PISTON circuit relief valve

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING piston

1шт.

11

178-890

SET SCREW,Hex Soc, 5/16"-24 x 1"

SCREW set, hex socket headless, 5/16"-24 NF x 1", oval point, plated

1шт.

12

86637933

JAM NUT,5/16" - 24, Gr 5

1шт.

13

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Housing

1шт.

G109449

KIT

service for P/N G107786 circuit relief valve, kit includes an instruction sheet and P/N G109447 circuit relief valve, Ref. 1-13, which is the same as P/N G107786 except with a different pressure setting

1шт.

The pressure setting of the repair circuit relief valve is not preset for this application. Adjust the setting according to the instructions sent with the repair valve or according to the service manual.

1шт.
