Запчасти Case 580K (08-366) - LOADER CONTROL VALVE, CLAM SECTION (08) - HYDRAULICS

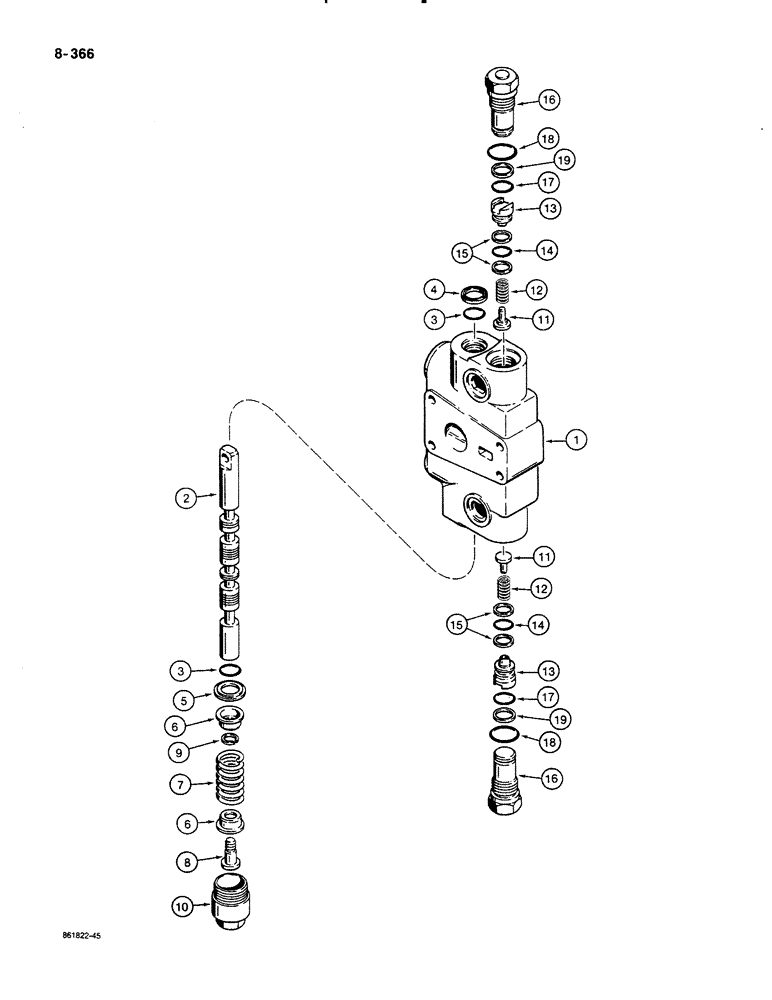

Схема запчастей Case 580K - (08-366) - LOADER CONTROL VALVE, CLAM SECTION (08) - HYDRAULICS
11
8
18
4
2
3
12
6
1
18
16
13
5
6
3
10
7
16
19
15
11
19
14
9
15
17
13
14
12
17

Артикул

Название

Примечание

Количество

G109640

HYD VALVE SECTION

SECTION ASSEMBLY clam, three spool valve only, Includes: Ref. 1 thru 19

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING clam section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL clam section

1шт.

3

G108461

O-RING

spool

2шт.

4

A32309

SEAL,18.8mm ID x 25.5mm OD x 3.1mm Thk

oil, spool

1шт.

5

G102711

RETAINER COLLAR,19.3 mm ID x 32.97 mm OD

O-ring

1шт.

6

G33075

RETAINER,12.2mm ID, 27.9mm OD

SEAT centering spring

2шт.

7

G108544

SPRING

centering, spool

1шт.

8

G106409

SEAT

SCREW spool end

1шт.

9

G106410

SPACER

screw

1шт.

10

P0033080G

SCREW

spool end, lower

1шт.

11

G33081

VALVE POPPET

POPPET load check

2шт.

12

G33573

SPRING

load check

2шт.

13

G104062

PLUG

load check

2шт.

14

G110020

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

plug

2шт.

15

G103862

BACK-UP RING,15.77mm ID x 18.67mm OD x 1.32mm Thk

backup, plug O-ring

4шт.

G33122

PLUG,ORB

ASSEMBLY load check valve port, Includes: Ref. 16 thru 19

2шт.

16

NSS

NOT SOLD SEPARAT

PLUG load check valve

1шт.

17

G107675

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

small

1шт.

18

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

19

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

backup, small O-ring

1шт.

Выбрано товаров: 21
