Запчасти Case 580K (02-020) - A184107 AIR CLEANER, MODELS WITH OR WITHOUT TURBOCHARGED ENGINES (02) - ENGINE

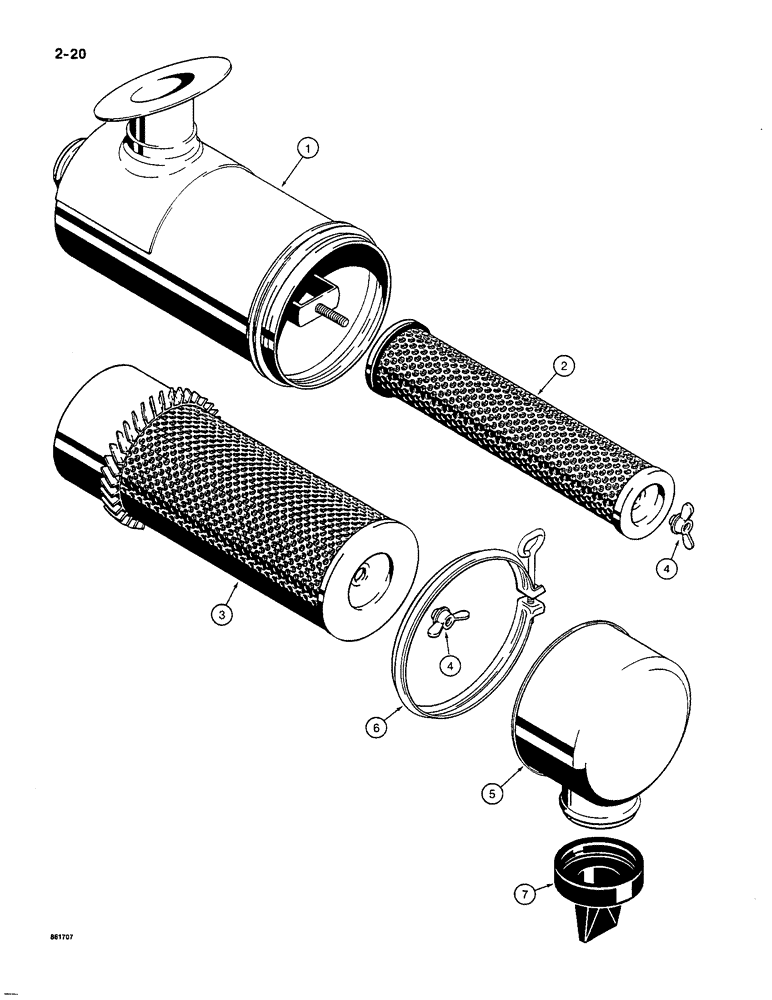

Схема запчастей Case 580K - (02-020) - A184107 AIR CLEANER, MODELS WITH OR WITHOUT TURBOCHARGED ENGINES (02) - ENGINE
6
1
5
3
4
2
4
7

Артикул

Название

Примечание

Количество

A184107

AIR CLEANER

ASSEMBLY engine, used on models with air cleaner air duct box, if used, Includes: Ref. 1 thru 7

1шт.

D143874

AIR CLEANER

ASSEMBLY engine, used on models without air cleaner air duct box, if used, Includes: Ref. 1 thru 7

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING air cleaner

1шт.

2

A173291

AIR FILTER

ELEMENT secondary

1шт.

3

A173290

AIR FILTER

ELEMENT primary

1шт.

4

D78354

WING NUT

WING NUT element

2шт.

5

A184598

COVER

end

1шт.

6

F84999

CLAMP,168.28mm

P/N A184107 air cleaner, housing to end cover

1шт.

6

378621R1

CLAMP, P/N D143874 air cleaner, housing to end cover

1шт.

7

A184597

VALVE POPPET,1.93" ID x 2.24" OD x 1.84" L

VALVE dust, rubber

1шт.
