Запчасти Case 580K (08-362) - LOADER CONTROL VALVE, LIFT SECTION, WITH MANUAL DETENT (08) - HYDRAULICS

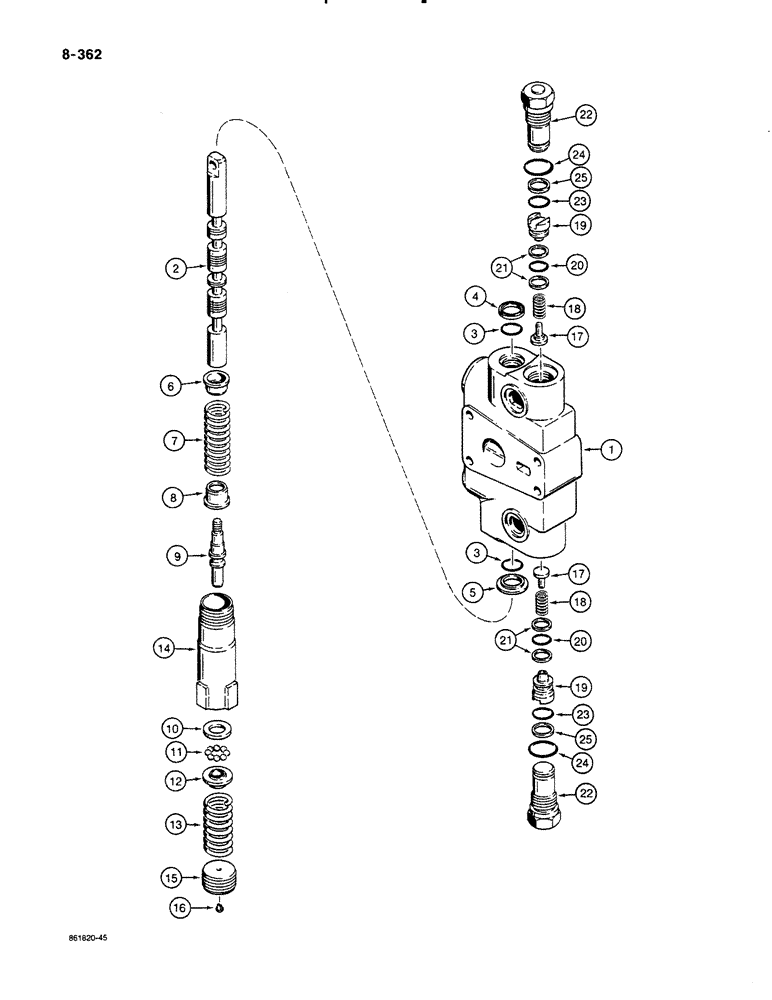

Схема запчастей Case 580K - (08-362) - LOADER CONTROL VALVE, LIFT SECTION, WITH MANUAL DETENT (08) - HYDRAULICS
20
16
18
25
5
25
21
4
7
18
11
20
17
14
13
22
22
24
9
23
10
2
24
12
3
15
23
21
19
6
1
17
19
3
8

Артикул

Название

Примечание

Количество

G109634

HYD VALVE SECTION

SECTION ASSEMBLY lift, with manual detent, Includes: Ref. 1 thru 25

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING lift section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL lift section

1шт.

3

G108461

O-RING

spool

2шт.

4

A32309

SEAL,18.8mm ID x 25.5mm OD x 3.1mm Thk

oil, spool

1шт.

5

G102711

RETAINER COLLAR,19.3 mm ID x 32.97 mm OD

O-ring

1шт.

6

G33075

RETAINER,12.2mm ID, 27.9mm OD

SEAT centering spring, upper, small

1шт.

7

G106455

SPRING

centering, spool

1шт.

8

G106395

RETAINER,16mm ID, 27.9mm OD

SEAT centering spring, lower, large

1шт.

9

G106396

SHAFT,74.68mm L

detent

1шт.

10

G109127

WASHER,17.4mm ID x 28.9mm OD x 3.96mm Thk, MS450

detent, ball retainer

1шт.

11

211-258

BALL

9/32", grade 50, chrome alloy steel

8шт.

12

G106398

RETAINER,16.76mm ID x 29.21mm OD x 6.48mm Thk

ball stop

1шт.

13

G109081

SPRING

detent

1шт.

14

G106425

HOUSING,1-3/8" - 18 x 1-3/8" - 18

detent

1шт.

15

G109384

PLUG,3/8" - 18

detent housing

1шт.

16

G107780

VALVE, CHECK

VALVE check, detent plug

1шт.

17

G33081

VALVE POPPET

POPPET load check

2шт.

18

G33573

SPRING

load check

2шт.

19

G104062

PLUG

load check

2шт.

20

G110020

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

plug

2шт.

21

G103862

BACK-UP RING,15.77mm ID x 18.67mm OD x 1.32mm Thk

backup, plug O-ring

4шт.

G33122

PLUG,ORB

ASSEMBLY load check valve port, Includes: Ref. 22 thru 25

2шт.

22

NSS

NOT SOLD SEPARAT

PLUG load check valve

1шт.

23

G107675

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

small

1шт.

24

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

25

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

backup, small O-ring

1шт.

Выбрано товаров: 27
