Запчасти Case 580K (08-360) - LOADER CONTROL VALVE BUCKET SECTION W/MAGNETIC DETENT & CIRCUIT RELIEF VALVE (08) - HYDRAULICS

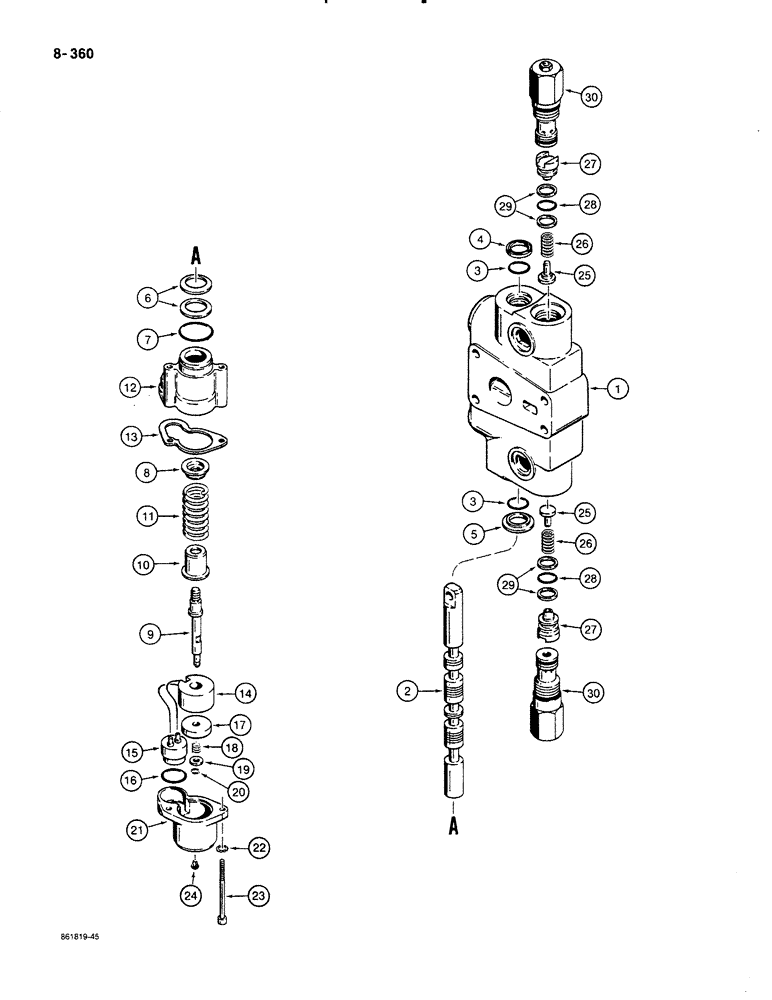

Схема запчастей Case 580K - (08-360) - LOADER CONTROL VALVE BUCKET SECTION W/MAGNETIC DETENT & CIRCUIT RELIEF VALVE (08) - HYDRAULICS
24
28
25
13
4
14
3
25
12
27
29
7
5
20
19
1
18
17
21
29
3
8
30
10
16
27
6
2
30
28
22
9
11
15
26
23
26

Артикул

Название

Примечание

Количество

G109635

HYD VALVE SECTION

SECTION ASSEMBLY bucket, with magnetic detent and circuit relief valve, Includes: Ref. 1 thru 30

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING bucket section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL bucket section

1шт.

3

G108461

O-RING

spool

2шт.

4

A32309

SEAL,18.8mm ID x 25.5mm OD x 3.1mm Thk

oil, spool

1шт.

5

G102711

RETAINER COLLAR,19.3 mm ID x 32.97 mm OD

O-ring

1шт.

6

G106452

SPRING WASHER

SPRING belleville, washer

2шт.

7

A59066

O-RING,1.239" ID x 1.379" OD

retainer

1шт.

8

G106442

SEAT

centering spring, upper

1шт.

9

G107445

SHAFT

magnetic detent

1шт.

10

G106441

SEAT

centering spring, lower

1шт.

11

G109302

SPRING

centering, spool

1шт.

12

G106423

HOUSING

magnetic detent

1шт.

13

G106443

GASKET

magnetic detent housing

1шт.

G110079

COIL ASSY.

COIL ASSEMBLY magnetic detent, Includes: Ref. 14 and 15

1шт.

14

NSS

NOT SOLD SEPARAT

COIL magnetic detent

1шт.

15

G106450

COIL

CONNECTOR coil

1шт.

16

G106453

O-RING,0.07" Thk x 0.864" ID, -20, Cl 7, 75 Duro

coil connector

1шт.

17

G109295

WASHER,6.45mm ID x 29.5mm OD x 7.92mm Thk, MS381

detent

1шт.

18

G107447

SPRING,Compression, 8.38mm OD x 8.64mm L

detent washer

1шт.

19

A50778

WASHER

shaft

1шт.

20

A7111

SNAP RING,#25, Ext

Ring, Snap, , washer retaining #25, Ext

1шт.

21

G106424

CAP

magnetic detent

1шт.

22

193-6

LOCK WASHER,Ext Tooth, #10

WASHER, LOCK, Ext Tooth, #10

2шт.

23

165-46

HEX SOC SCREW,#10 - 24 x 2 3/4"

BOLT hex socket head, No. 10-24 NC x 2-3/4", special

2шт.

24

G107780

VALVE, CHECK

VALVE check, magnetic detent

1шт.

25

G33081

VALVE POPPET

POPPET load check

2шт.

26

G33573

SPRING

load check

2шт.

27

G104062

PLUG

load check

2шт.

28

G110020

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

plug

2шт.

29

G103862

BACK-UP RING,15.77mm ID x 18.67mm OD x 1.32mm Thk

backup, plug O-ring

4шт.

30

G107786

VALVE, PRESSURE RELI

VALVE ASSEMBLY circuit relief, one piece cap, used in production, see Figure 08-368, order P/N G109449 circuit relief valve kit for service, see Figure 08-368 for kit

2шт.

Выбрано товаров: 32
