Запчасти Case 580K (08-356) - LOADER CONTROL VALVE, THREE SPOOL (08) - HYDRAULICS

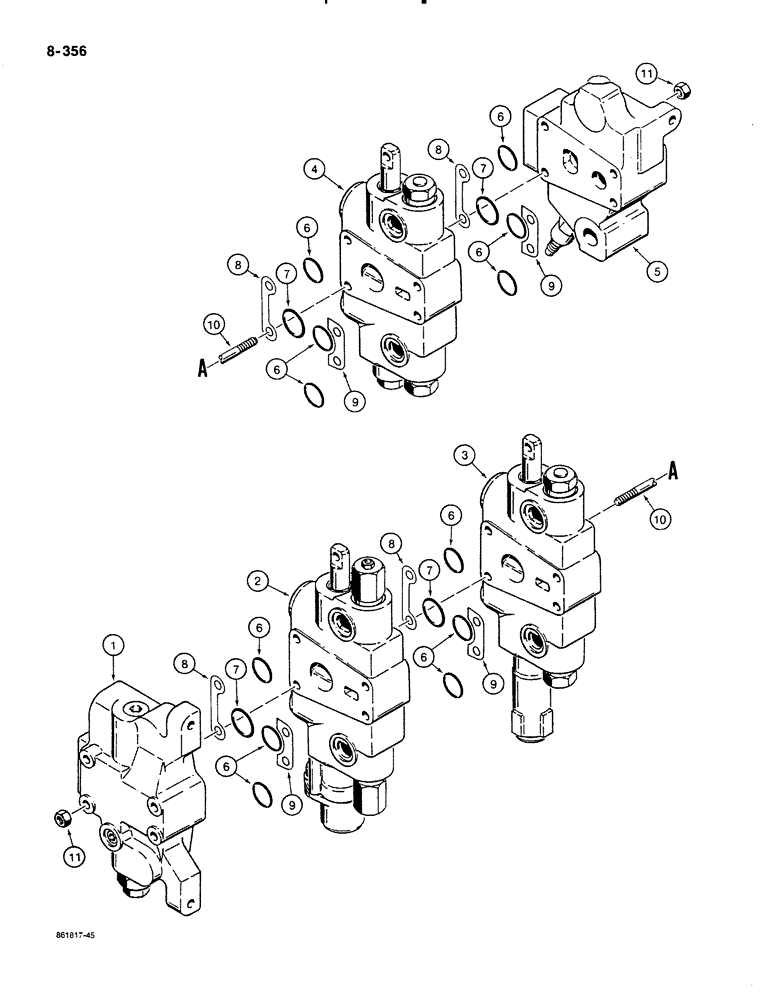

Схема запчастей Case 580K - (08-356) - LOADER CONTROL VALVE, THREE SPOOL (08) - HYDRAULICS
7
8
6
6
9
4
1
10
9
11
6
5
8
7
8
8
6
9
11
6
7
3
6
6
10
2
6
7
9

Артикул

Название

Примечание

Количество

G109582

VALVE, CONTROL

VALVE ASSEMBLY control, loader, three spool, Includes: Ref. 1 thru 11

1шт.

1

G110551

HYD VALVE SECTION

SECTION inlet, with steering relief valve, see Figure 08-358

1шт.

2

G109635

HYD VALVE SECTION

SECTION bucket, with magnetic detent and circuit relief valve, see Figure 08-360

1шт.

3

G109634

HYD VALVE SECTION

SECTION lift, with manual detent, see Figure 08-362

1шт.

4

G109640

HYD VALVE SECTION

SECTION clam, see Figure 08-366

1шт.

5

G109637

HYD VALVE SECTION

SECTION outlet, with main relief valve, see Figure 08-364

1шт.

6

G34000

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

section ports, small

12шт.

7

G34001

O-RING,0.103" Thk x 1.424" ID, -127, Cl 6, 90 Duro

section ports, large

4шт.

8

G107251

SHIM,10.31mm ID x 20.62mm OD x 0.06mm Thk

Section, Port side of control valve 0.051mm Thk

4шт.

9

G33965

SHIM,22.86mm OD x 0.06mm Thk

Section, Non-port side of control valve 0.051mm Thk

4шт.

10

G108805

STUD

tie, 3/8"-16 NC x 11-3/4"

4шт.

11

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

8шт.

Выбрано товаров: 12
