Запчасти Case 580K (08-354) - LOADER CONTROL VALVE, TWO SPOOL (08) - HYDRAULICS

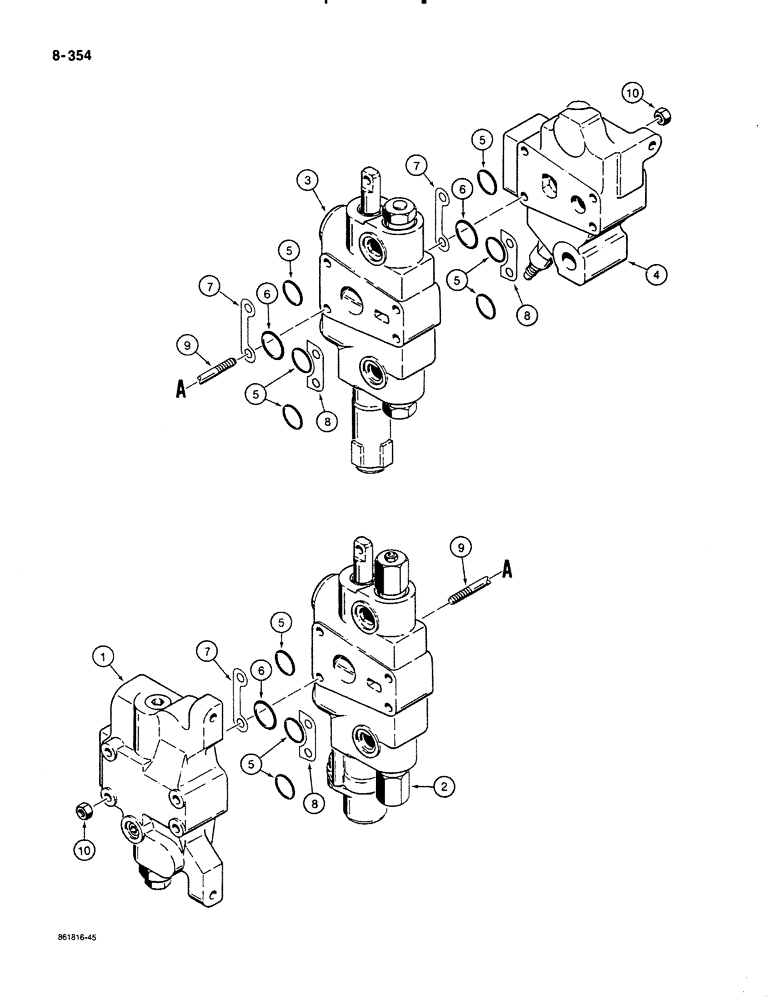

Схема запчастей Case 580K - (08-354) - LOADER CONTROL VALVE, TWO SPOOL (08) - HYDRAULICS
5
6
3
5
5
6
9
2
8
10
7
1
10
4
8
9
7
5
6
8
5
7
5

Артикул

Название

Примечание

Количество

G109581

VALVE, CONTROL

VALVE ASSEMBLY control, loader, two spool, Includes: Ref. 1 thru 10

1шт.

1

G110551

HYD VALVE SECTION

SECTION inlet, with steering relief valve, see Figure 08-358

1шт.

2

G109635

HYD VALVE SECTION

SECTION bucket, with magnetic detent and circuit relief valve, see Figure 08-360

1шт.

3

G109634

HYD VALVE SECTION

SECTION lift, with manual detent, see Figure 08-362

1шт.

4

G109637

HYD VALVE SECTION

SECTION outlet, with main relief valve, see Figure 08-364

1шт.

5

G34000

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

section ports, small

9шт.

6

G34001

O-RING,0.103" Thk x 1.424" ID, -127, Cl 6, 90 Duro

section ports, large

3шт.

7

G107251

SHIM,10.31mm ID x 20.62mm OD x 0.06mm Thk

Section, Port side of control valve 0.051mm Thk

3шт.

8

G33965

SHIM,22.86mm OD x 0.06mm Thk

Section, Non-port side of control valve 0.051mm Thk

3шт.

9

G108870

STUD,246.2mm L

tie, 3/8"-16 NC x 9-3/4"

4шт.

10

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

8шт.

Выбрано товаров: 11
