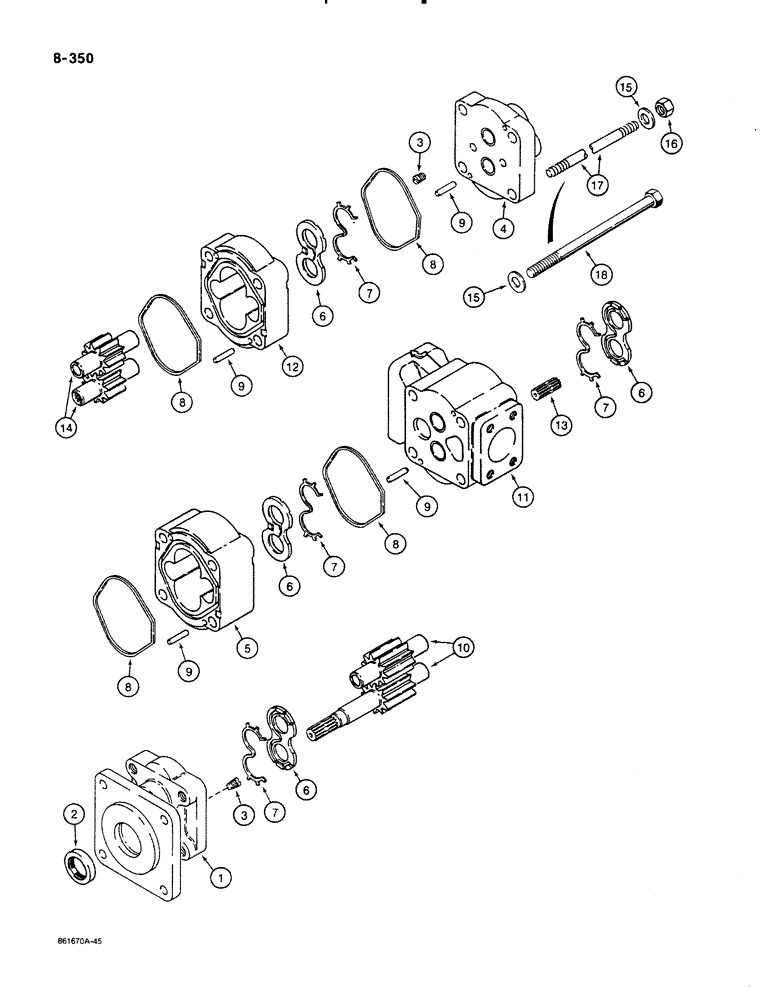

Запчасти Case 580K (08-350) - EQUIPMENT HYDRAULIC PUMP (08) - HYDRAULICS

D134590

PUMP, HYDRAULIC

PUMP ASSEMBLY hydraulic equipment, used with split flanged clamps and flanged hoses at outlet ports, if used, Includes: Ref. 1 thru 18

1шт.

D134590R

REMAN-HYD PUMP

580K

1шт.

D134590C

CORE-HYDRAULIC PUMP

Return Number

1шт.

D140801

PUMP, HYDRAULIC

PUMP ASSEMBLY hydraulic equipment, used with adapters at outlet ports, if used, Includes: Ref. 1 thru 18

1шт.

D140801R

REMAN-HYD PUMP

580K

1шт.

D140801C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

COVER shaft end, includes a bushing which is not serviced separately

1шт.

2

L32418

SEAL,26.99mm ID x 42.93mm OD x 7.92mm Thk

shaft

1шт.

3

L32320

PLUG

special, 7/16"-20 NF, P/N D134590 pump

4шт.

4

NSS

NOT SOLD SEPARAT

COVER closed end, includes a bushing which is not serviced separately

1шт.

5

N14115

HOUSING

gear, shaft end

1шт.

6

N13582

THRUST PLATE

PLATE, THRUST, Wear, housing

4шт.

7

N13583

SEAL

RETAINER wear plate

4шт.

8

L32100

SEAL,Square, 3.17mm Thk x 101.6mm ID, 70 Duro

housing, large

4шт.

9

W16323

DOWEL

PIN dowel, gear housing

8шт.

10

NSS

NOT SOLD SEPARAT

SET gear, shaft end

1шт.

11

NSS

NOT SOLD SEPARAT

HOUSING center, with ports, includes bushings which are not serviced separately

1шт.

12

N14116

HOUSING

gear, closed end

1шт.

13

N13586

SHAFT

connecting

1шт.

14

NSS

NOT SOLD SEPARAT

SET gear, closed end

1шт.

15

524443R1

WASHER,0.66" ID x 1.25" OD x 0.19" Thk

flat, 5/8", hardened, used with the stud or bolt

4шт.

16

129-183

NUT,5/8"-11, G8

If used 5/8"-11, G8

4шт.

17

N14117

STUD

pump, no longer used, order P/N 26-10144 bolt

4шт.

18

26-10144

BOLT,Hex, 5/8" - 11 x 9", Gr 8

hex head, 5/8"-11 NC x 9", grade 8

4шт.
