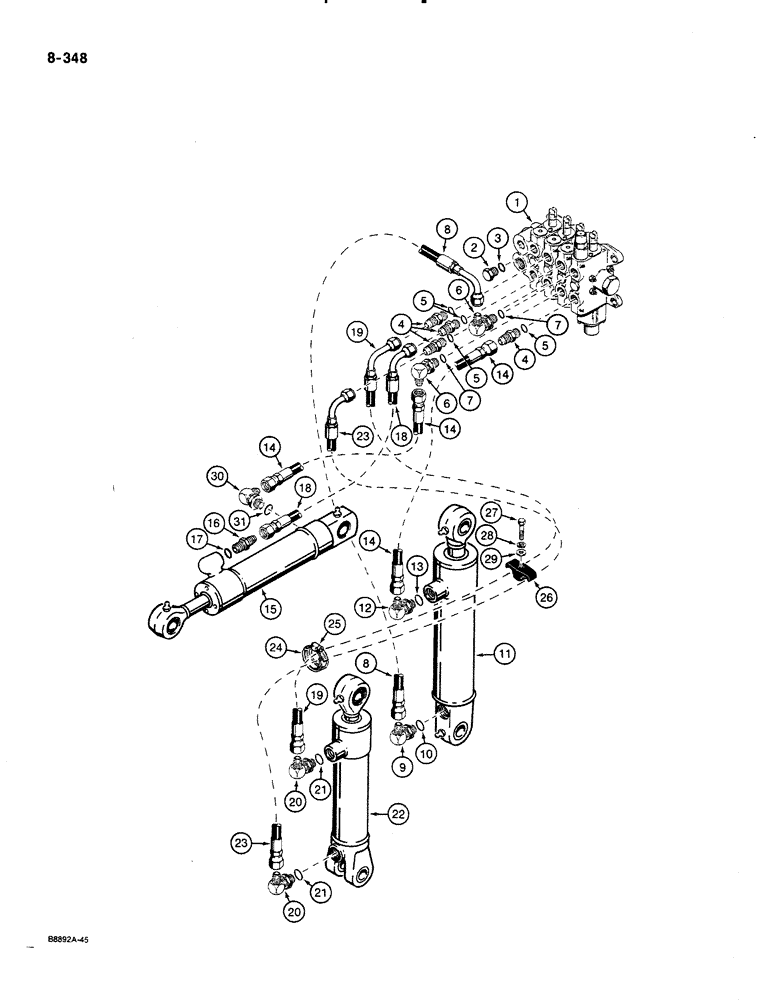

Запчасти Case 580K (08-348) - THREE-POINT HITCH CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

D141297

VALVE

ASSEMBLY control, three-point hitch, see Figure 08-396 for parts list, see Figure 09-530 for valve mounting

1шт.

2

214389

PLUG,3/4" - 16 ORB

Upper and lower implement section, if used, Includes Ref. 3 Hex Hd, 3/4"-16 ORB

2шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Plug

1шт.

4

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR straight, male, upper and lower port tilt section, pitch section upper port, and lift section lower port, Incl. Ref 5 and 7

4шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Connector

1шт.

7

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Elbow

1шт.

8

D141271

HOSE ASSY.

HOSE, 53-3/16" (1350 mm) long, upper port lift section to closed end of lift cylinder

1шт.

9

D135096

ELBOW

90 degree, restriction, closed end of lift cylinder, Includes: Ref. 10

1шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

elbow

1шт.

11

G101189

CYLINDER ASSY.

CYLINDER ASSEMBLY lift, see Figure 08-434

1шт.

12

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

90 degree, adjustable, rod end of lift cylinder, Includes: Ref. 13

1шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

elbow

1шт.

14

D141267

HOSE ASSY.

HOSE, 21-11/16" (550 mm) long, lower port lift section to rod end of lift cylinder, and pitch section lower port to closed end of pitch cylinder

2шт.

15

1976884C1

JACK BODY

CYLINDER ASSEMBLY pitch, see Figure 08-438

1шт.

138235A1R

REMAN-HYD CYLINDER

580K, Reman For New P/N 1976884C1

1шт.

138235A1C

CORE-HYD CYLINDER

Return Number

1шт.

16

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR straight, male, rod end of pitch cylinder, Incl. Ref 17

1шт.

17

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Connector

1шт.

18

D141268

HOSE

35-7/16" (900 mm) long, upper port pitch section to rod end of pitch cylinder

1шт.

19

D141270

HOSE

49-1/4" (1250 mm) long, upper port tilt section to rod end of tilt cylinder

1шт.

20

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

90 degree, adjustable, closed end and rod end of tilt cylinder, Includes: Ref. 21

2шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

elbow

1шт.

22

G101188

JACK BODY

CYLINDER ASSEMBLY tilt, see Figure 08-436

1шт.

23

D141269

HOSE ASSY.

HOSE, 57-1/8" (1450 mm) long, tilt section lower port to closed end of tilt cylinder

1шт.

24

D95251

TUBE

GUARD hose protection

1шт.

25

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP hose

1шт.

26

D120613

CLAMP,20mm ID

hose to hitch frame

1шт.

27

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

28

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

29

195-521

WASHER,5/16", SAE

flat, 5/16", plated

1шт.

30

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

90 degree, adjustable, closed end of pitch cylinder, Includes: Ref. 31

1шт.

31

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Elbow

1шт.
