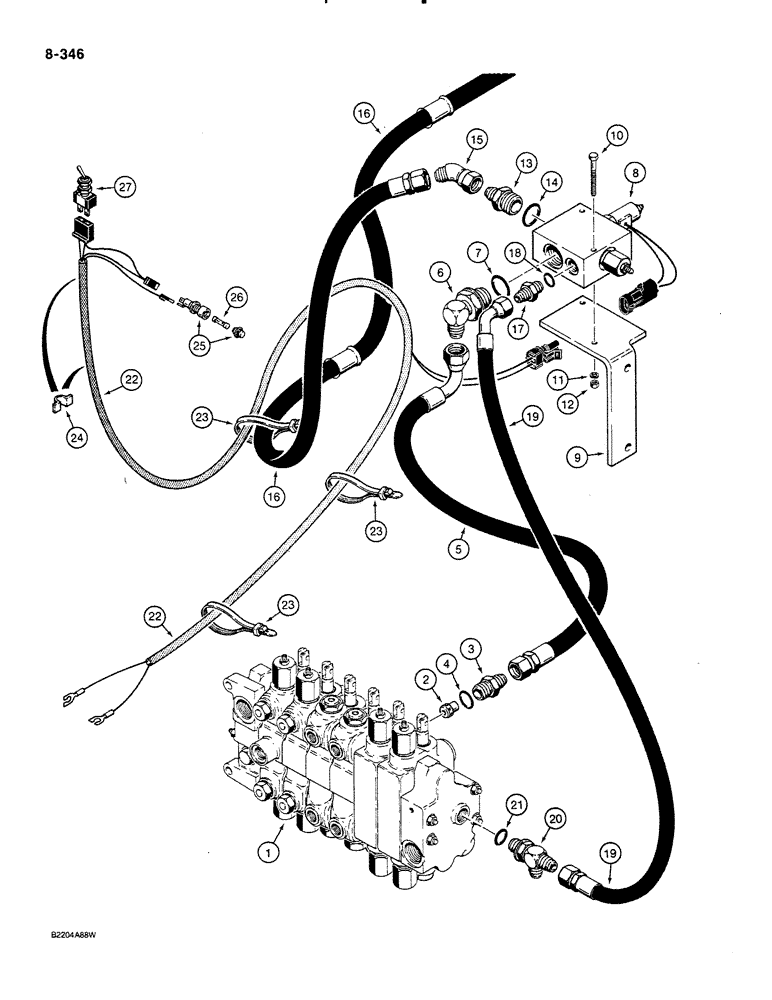

Запчасти Case 580K (08-346) - BACKHOE BOOM LOCK, HYDRAULIC AND ELECTRICAL CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY backhoe control, for correct assembly and components see Figure 08-370 or 08-372

1шт.

2

D77182

FITTING

RESTRICTOR boom section lower port

1шт.

3

D99170

CONNECTOR, ELEC

ADAPTER straight, special, boom section lower port, Includes: Ref. 4

1шт.

4

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Adapter

1шт.

5

D141974

HOSE ASSY.

HOSE, 18" (457 mm) long, backhoe control valve to boom lock valve

1шт.

6

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90 degree, adjustable, Includes: Ref. 7

1шт.

7

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

elbow

1шт.

8

D139523

HYDRAULIC VALVE

VALVE ASSEMBLY solenoid, backhoe boom lock, see Figure 08-394

1шт.

9

D141871

BRACKET

valve mounting, uses existing right-hand support bracket hose clamp hardware

1шт.

10

113-119

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

2шт.

11

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

12

9635082

NUT,5/16" - 18, Gr 5

2шт.

13

218-5078

HYD CONNECTOR,7/8" - 14 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER straight, Includes: Ref. 14

1шт.

14

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

adapter

1шт.

15

218-5174

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Female JIC

45 degree, swivel

1шт.

16

D141966

GUIDE

HOSE, 60-7/8" (1545 mm) long, boom lock valve to boom cylinder rod end

1шт.

17

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR straight, male, Incl. Ref 18

1шт.

18

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Connector

1шт.

19

D141967

HOSE ASSY.

HOSE, 18-7/8" (478 mm) long, return

1шт.

20

218-5241

TEE,7/8" - 14 Male JIC x 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

adjustable, Includes: Ref. 21

1шт.

21

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

tee

1шт.

22

D141972

HARNESS

boom lock

1шт.

23

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, harness, 15", nylon

3шт.

24

F93268

CLIP

harness

2шт.

25

A22874

HOLDER

RETAINER fuse, at backhoe control tower

1шт.

26

223-38

FUSE,3 Amp, Type 3AG

3 ampere, boom lock

1шт.

27

D67251

SWITCH

toggle, boom lock

1шт.
