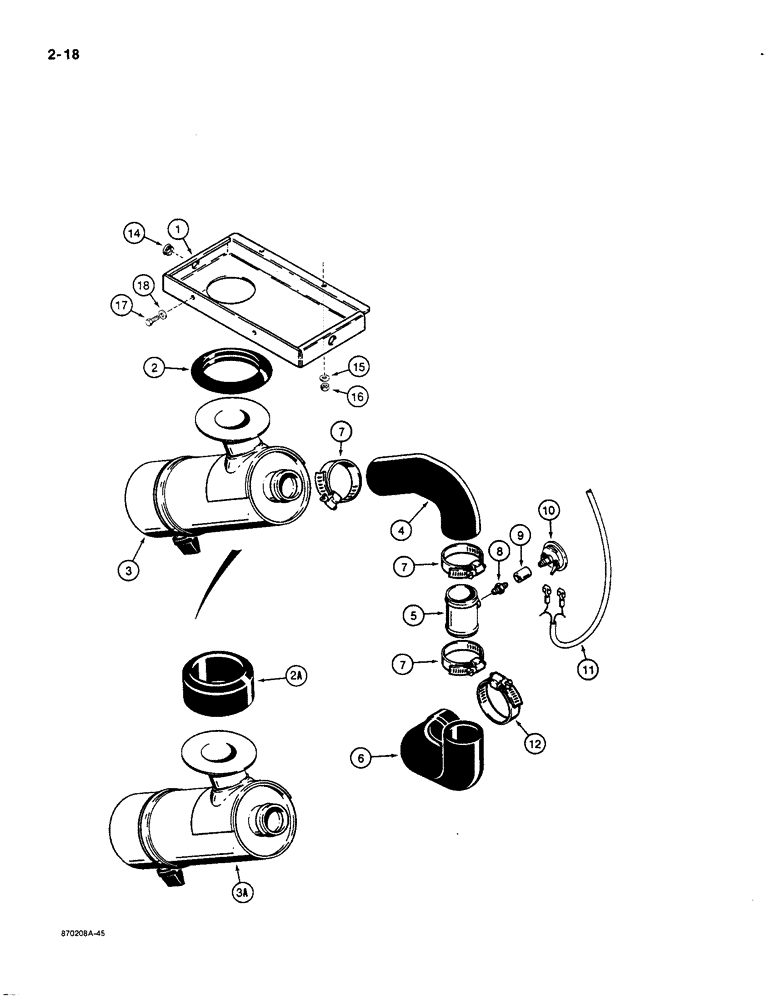

Запчасти Case 580K (02-018) - AIR CLEANER AND AIR INTAKE PARTS, MODELS WITH TURBOCHARGED ENGINES (02) - ENGINE

1

D137024

DUCT

air, attaches to weld studs under hood, if used

1шт.

2

A184698

SEAL

P/N A184107 air cleaner

1шт.

2a

D143756

SEAL

P/N D143874 air cleaner

1шт.

3

A184107

AIR CLEANER

engine, used on models with air cleaner air duct box, if used, see Figure 02-020

1шт.

3a

D143874

AIR CLEANER

engine, used on models without air cleaner air duct box, if used, see Figure 02-020

1шт.

4

D139340

INTAKE AIR HOSE,63.50 mm ID, SAE J200

Air Cleaner, Upper 63.50 mm ID, SAE J200

1шт.

5

D139343

ADAPTER

coupling, air restriction

1шт.

6

D139342

INTAKE AIR HOSE,63.50 mm ID, 76.2 mm ID, SAE J200

Air Cleaner, Lower, At Engine, For service order P/N D139394 hose, see Ref. 13 63.50 mm ID, 76.2 mm ID, SAE J200

1шт.

7

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP hose, includes hardware

3шт.

8

D36264

FITTING

AND FILTER ASSEMBLY air restriction indicator

1шт.

9

221-1335

COUPLING,Pipe, 1/8" NPT

1шт.

10

L103131

INDICATOR

SENDER air filter restriction indicator

1шт.

11

D140449

HARNESS

WIRE jumper, restriction indicator, attaches to front console wiring harness

1шт.

12

214-264

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

CLAMP hose to engine

1шт.

13

D139394

LARGE HOSE

HOSE air cleaner, lower, at engine, not shown

1шт.

14

205-36

HOLE PLUG BUTTON,7/8"

PLUG button, , if used 7/8"

2шт.

15

495-11028

WASHER,1/4", SAE

If used 1/4", SAE

2шт.

16

86625061

NUT,1/4"-20, GB

NUT hex, self-locking, plated, 1/4"-20 NC, if used

2шт.

17

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

If used Hex, 1/4"-20 x 3/4", G5, Full Thd

2шт.

18

495-11028

WASHER,1/4", SAE

If used 1/4", SAE

2шт.
